Automatic Transfer Switches (ATS) up to 1600 A

Automatic transfer switch 4x 125A HIC412G

Accessories
Technical properties
Documentations
More products

Download the data sheet

Complete your system

Accessories/spare parts for low-voltage switch technology 2 products available

Technical properties

Rated operational voltage Ue

380 - 415 V

Rated current

125 A
Rated conditional short-circuit current Icc with gl-gG fuses

100 kA

Rated operational power under 400 V AC AC1

82000 W

Number of poles

4
Device construction type

Fixed built-in

Suitable for DIN Rail

No
Suitable for distribution board

Yes

Mounting on

Mounting plate

Downloads

Product image

Product Image HIC412G

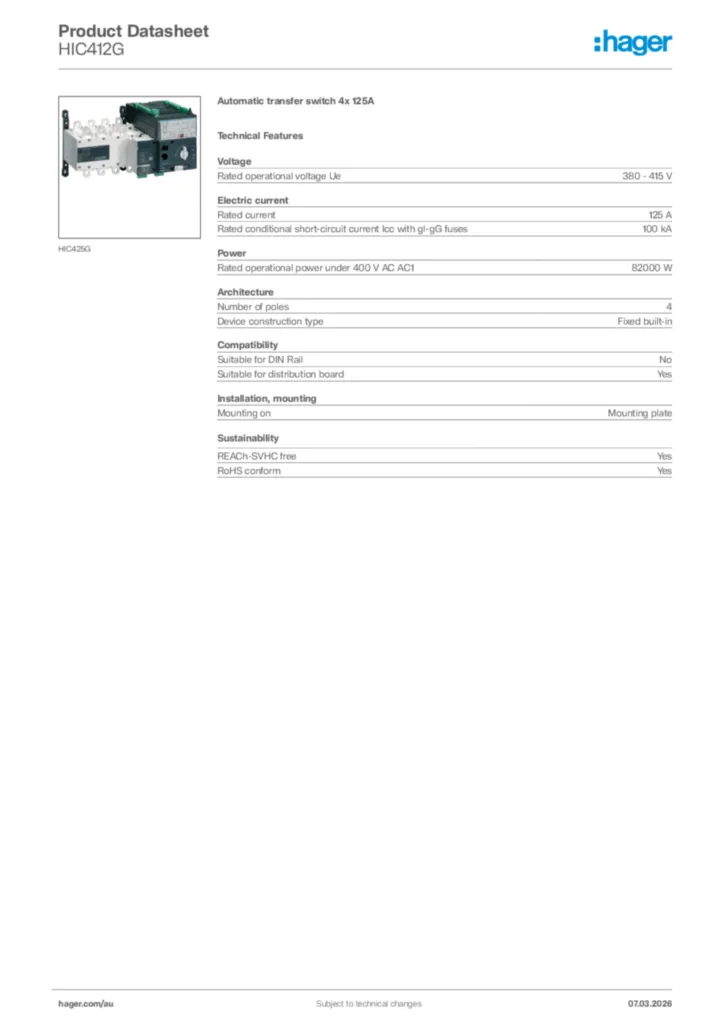

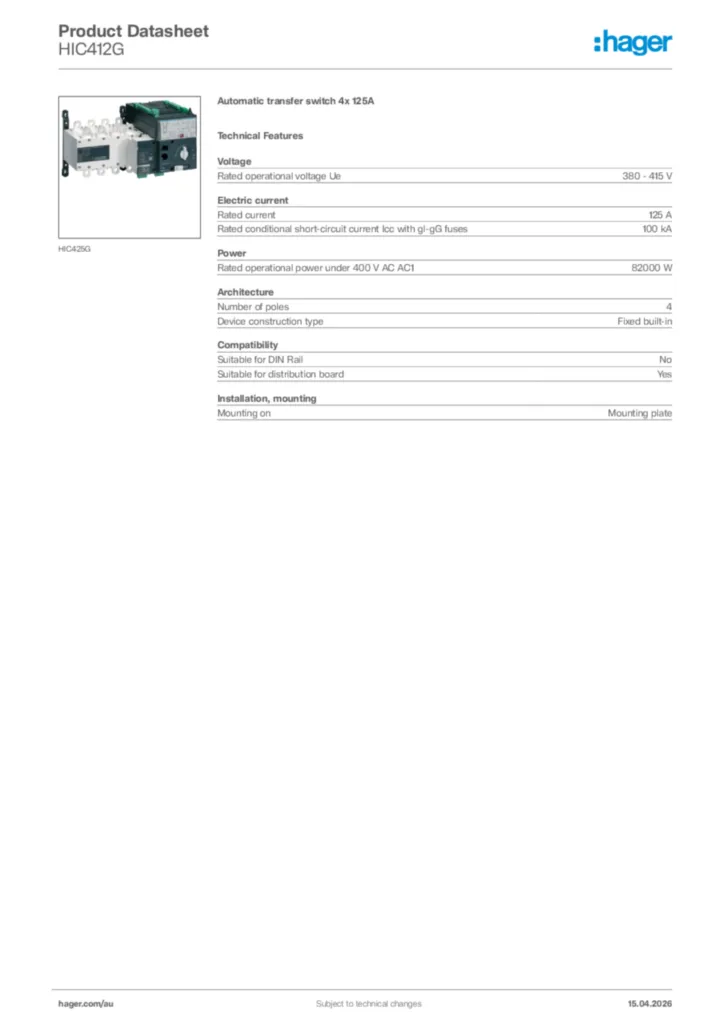

Product datasheet

Hager Product data sheet HIC412G

Automatic transfer switch 4x 125A

PDF
Installation manual

QuickStart HIC4xxG 125-630A EN

Installation manual International 2021-09-02

PDF

3,75 MB
Enduserquickguide

Enduserquickguide zh-CN, en-GB, fr-FR 2016-12-05

PDF

5,28 MB
Declaration of conformity

Declaration

Declaration of conformity International 2022-04-13

PDF

573,94 kB

EU Declaration of Conformity

Declaration of conformity en-GB 2024-12-04

PDF

639,40 kB

More documentation
