Automatic transfer switch 4x 1000A HIC490G
EAN
3250613131876
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderNot applicable
-
Number of poles4 P
-
Type of pole4 P
-
Type of caseFixed built-in
Functions
-
Reversing switchYes
Controls and indicators
-
Motor drive integratedYes
Main electrical features
-
Rated operational voltage Ue380 / 415 V
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage1000 V
-
Rated impulse withstand voltage12000 V
Electric current
-
Rated operational current in AC21category B1000 A
-
Acceptable current rating with AC22 category A1000 A
-
Rated current1000 A
-
Short-circuit current with gI-gG fuses100 kA
-
Rated short-time withstand current 1s35 kA
-
Rating current 10°C according to IEC 609471000 A
-
Rating current 15°C according to IEC 609471000 A
-
Rating current 20°C according to IEC 609471000 A
-
Rating current 25°C according to IEC 609471000 A
-
Rating current 30°C according to IEC 609471000 A
-
Rating current 35°C according to IEC 609471000 A
-
Rating current 40°C according to IEC 609471000 A
-
Rating current 45°C according to IEC 60947900 A
-
Rating current 5°C according to IEC 609471000 A
-
Rating current 50°C according to IEC 60947900 A
-
Rating current 55°C according to IEC 60947800 A
-
Rating current 60°C according to IEC 60947800 A
-
Rating current 65°C according to IEC 60947700 A
-
Rating current 70°C according to IEC 60947700 A
-
Rated operational current in AC21 category A1000 A
-
Acceptable current rating with AC22 category B1000 A
-
Rated operational current in AC23 category A1000 A
-
Acceptable current rating with AC23 category B1000 A
-
Conventional thermal current under enclosure at 40°C1000 A
Power
-
Total power loss under IN187.6 W
-
Power loss per pole at In46.9 W
-
Contact rating with 400 V in AC1658 kW
Cover, door
-
InterlockableYes
Connection
-
Type of connectionTerminal
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact1
-
Number of auxiliary contacts as change-over contact0
-
Motor drive optionalNo
Standards
-
Standard textIEC 60947-3 ; IEC 60947-6
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Altitude2000 m
-
Storage/transport temperature-40…70 °C
Downloads
-
Product image
-
Enduserquickguide

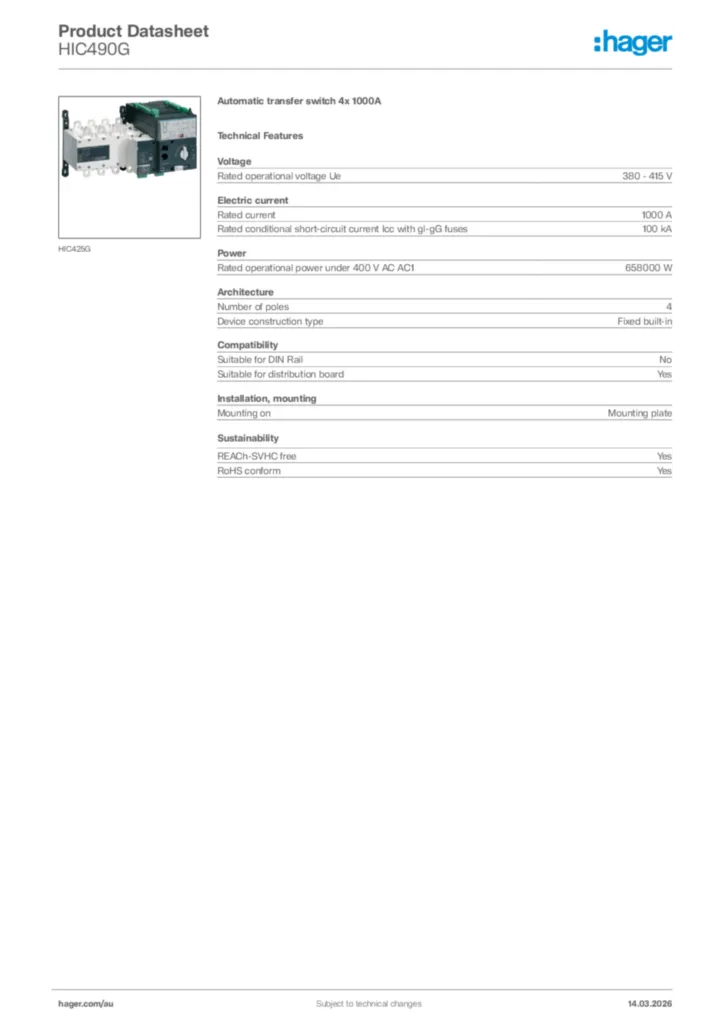

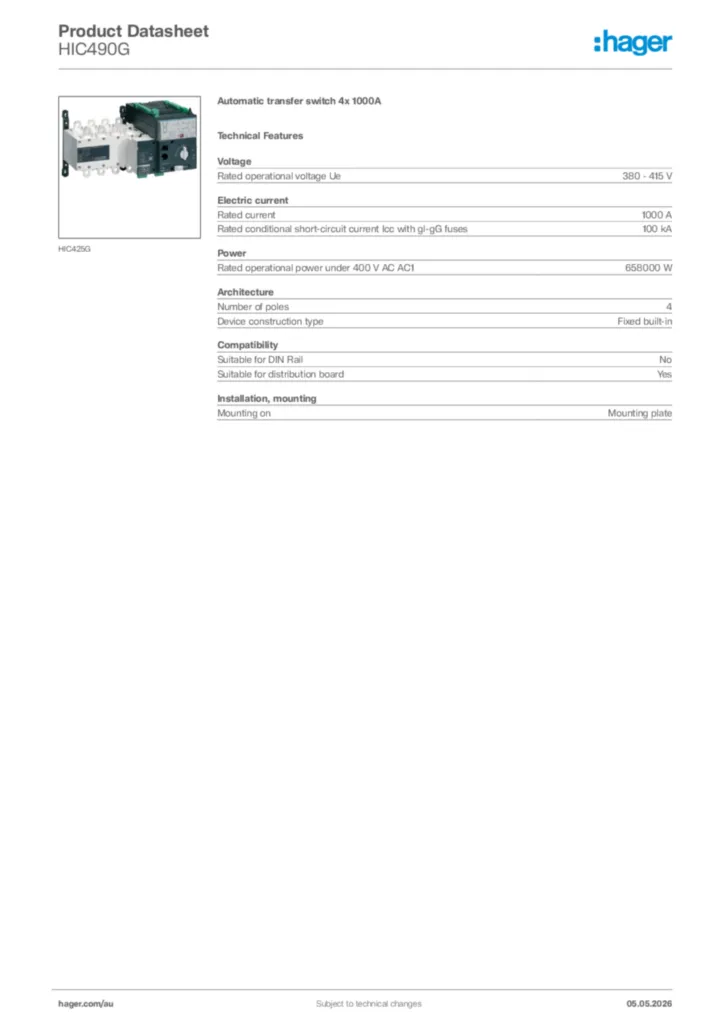

End User quick guides for HIC490G
