Moulded Case Circuit Breaker h630 4P 70kA 630A LSI HED631H
EAN
3250613349646
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries interlocking cable 1 products available -
Shunt release 5 products available -
Under voltage coil 4 products available -
Auxiliaries contact block 2 products available -
Handle for power circuit breaker 2 products available -
See more 11 other products available
Complete your system
-
HXC001H
Shunt trip Release 24V DC (h250-h400-h630-h800-h1000)
-
HXC002HShunt trip Release 48V DC (h250-h400-h630-h800-h1000)
-
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
-
HXC004HShunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
-
HXC005HShunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)

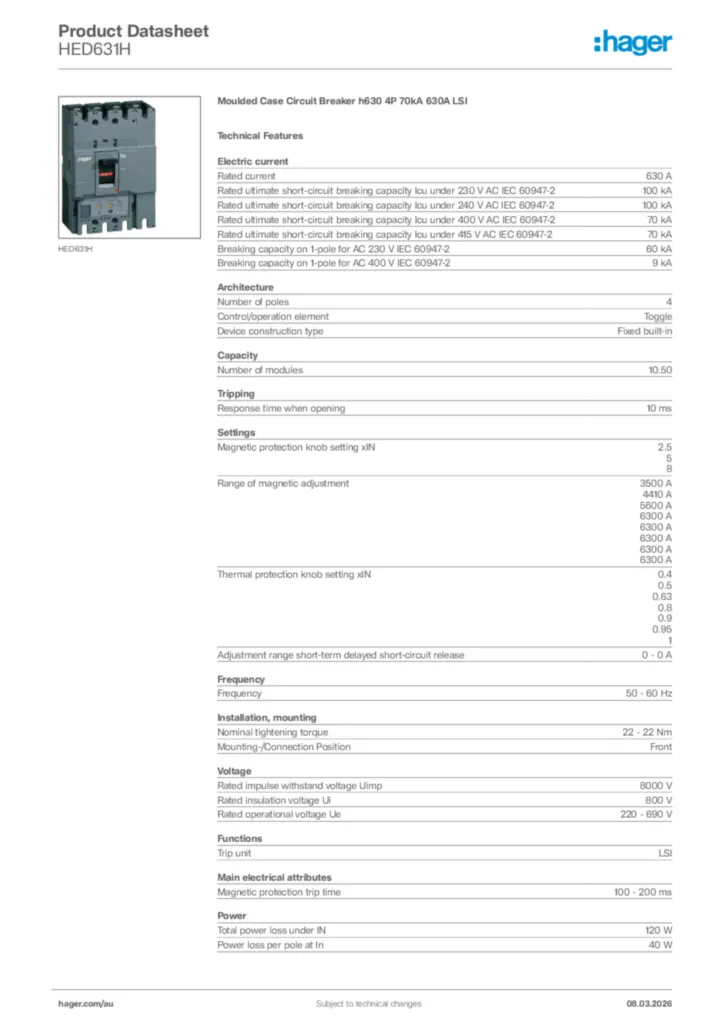

Technical properties
Electric current
-
Rated current630 A
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2100 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2100 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-270 kA
-
Rated ultimate short-circuit breaking capacity Icu under 415 V AC IEC 60947-270 kA
-
Breaking capacity on 1-pole for AC 230 V IEC 60947-260 kA
-
Breaking capacity on 1-pole for AC 400 V IEC 60947-29 kA
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
Capacity
-
Number of modules10,50
Tripping
-
Response time when opening10 ms
Settings
-
Magnetic protection knob setting xIN2.5, 5, 8
-
Range of magnetic adjustment3500 A, 4410 A, 5600 A, 6300 A, 6300 A, 6300 A, 6300 A, 6300 A
-
Thermal protection knob setting xIN0.4, 0.5, 0.63, 0.8, 0.9, 0.95, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque22 - 22 Nm
-
Mounting-/Connection PositionFront
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 690 V
Functions
-
Trip unitLSI
Main electrical attributes
-
Magnetic protection trip time100 - 200 ms
Power
-
Total power loss under IN120 W
-
Power loss per pole at In40 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations4000
Equipment
-
Number of auxiliary contacts as change-over contact0
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor35 - 240 mm²
-
Cross-section rigid conductor35 - 240 mm²
-
Connector/plug typeTerminal
Controls and indicators
-
Motor drive integratedNo
Compatibility
-
Suitable for DIN RailNo
Power supply
-
Position power supplyBidirectional
Environmental value
