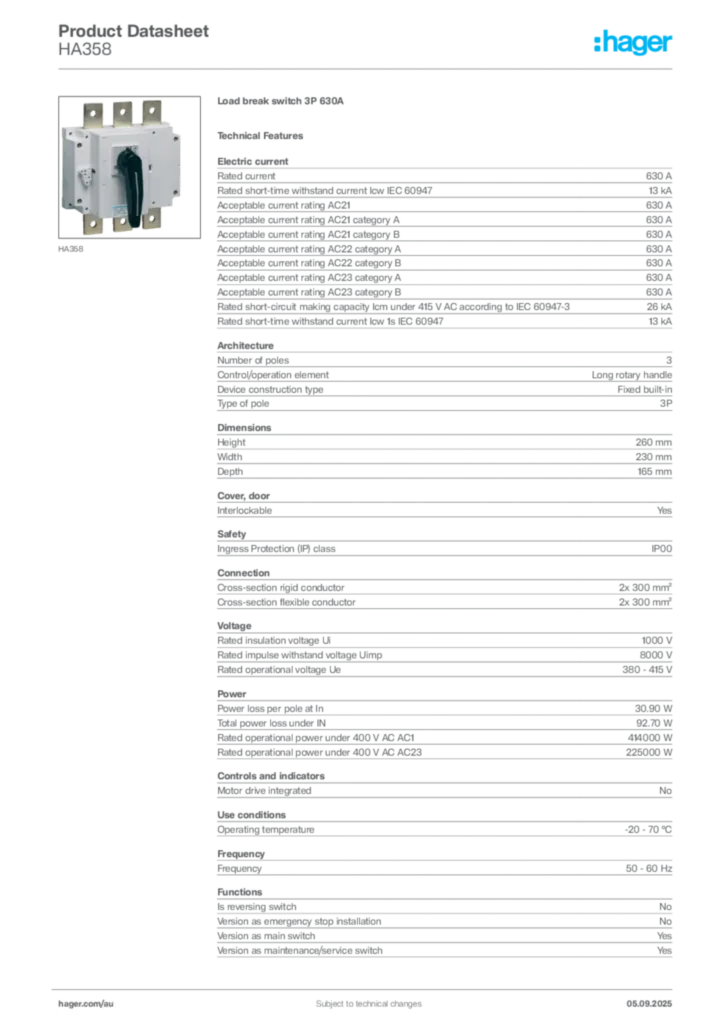

Load break switch 3P 630A HA358
EAN
3250613113582
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderLong thumb-grip
-
Number of poles3 P
-
Type of caseFixed built-in
Functions
-
Reversing switchNo
Controls and indicators
-
Motor drive integratedNo
Main electrical features
-
Rated operational voltage Ue380 / 415 V
Voltage
-
Rated insulation voltage1000 V
-
Rated impulse withstand voltage8000 V
Electric current
-
Rated operational current in AC21category B630 A
-
Acceptable current rating with AC22 category A630 A
-
Cut off current15 kA
-
Rated current630 A
-
Short-circuit current with gI-gG fuses50 kA
-
Rated short-time withstand current 1s13 kA
-
Rated operational current in AC21 category A630 A
-
Acceptable current rating with AC22 category B630 A
-
Rated operational current in AC23 category A630 A
-
Acceptable current rating with AC23 category B630 A
Dimensions
-
Depth of installed product165 mm
-
Height of installed product260 mm
-
Width of installed product230 mm
Power
-
Nominal power under 440/500, 50Hz150 kW
-
Total power loss under IN92.7 W
-
Power loss per pole at In30.9 W
-
Contact rating with 400 V in AC1414 kW
Cover, door
-
InterlockableYes
Installation, mounting
-
Fixation typeBack plate monting
Connection
-
Connection cross-sect. flexible conductor185mm²
-
Connection cross-sect. rigid cable2x300mm²
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
-
Number of auxiliary contacts as change-over contact0
-
Width available for insulation connection185 mm²
-
Motor drive optionalNo
Standards
-
Standard textIEC 60947-3
-
European directive WEEEconcerned
Safety
-
Protection index IPIP00
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeYes
Use conditions
-
Operating temperature-20…70 °C
