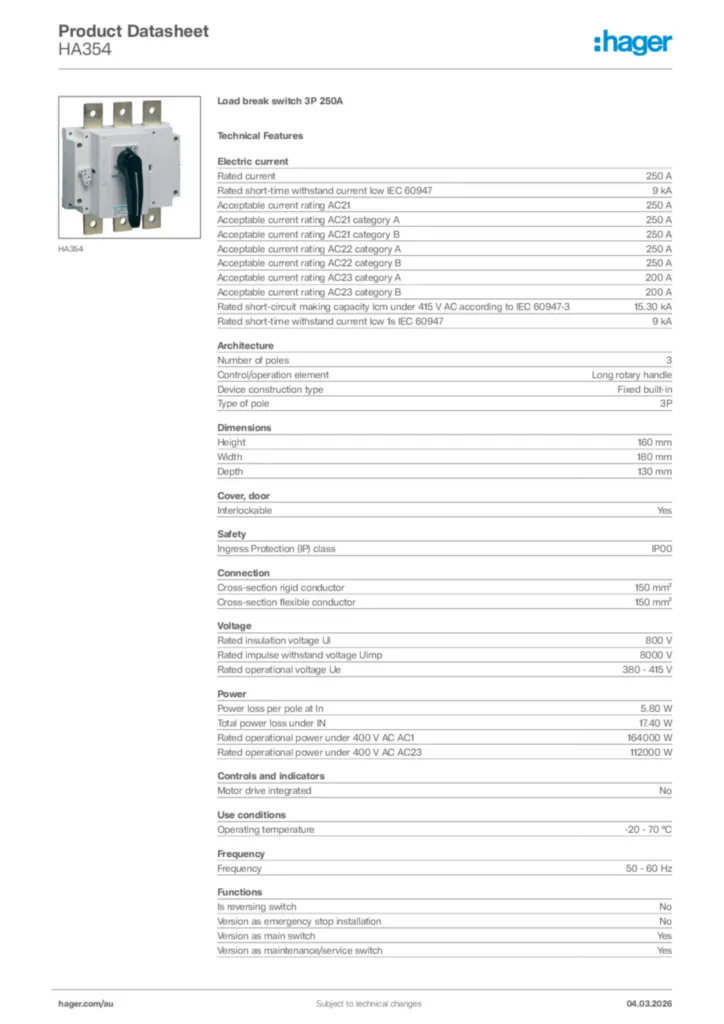

Load break switch 3P 250A HA354
EAN
3250613113544
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderLong thumb-grip
-
Number of poles3 P
-
Type of pole3 P
-
Type of caseFixed built-in
Functions
-
Reversing switchNo
Controls and indicators
-
Motor drive integratedNo
Main electrical features
-
Rated operational voltage Ue380 / 415 V
Voltage
-
Rated insulation voltage800 V
-
Rated impulse withstand voltage8000 V
Electric current
-
Rated operational current in AC21category B250 A
-
Acceptable current rating with AC22 category A250 A
-
Cut off current4.3 kA
-
Rated current250 A
-
Short-circuit current with gI-gG fuses50 kA
-
Rated short-time withstand current 1s9 kA
-
Thermal rated current outside of housings250 A
-
Rated operational current in AC21 category A250 A
-
Acceptable current rating with AC22 category B250 A
-
Rated operational current in AC23 category A200 A
-
Acceptable current rating with AC23 category B200 A
-
Conventional thermal current under enclosure at 40°C250 A
Dimensions
-
Depth of installed product130 mm
-
Height of installed product160 mm
-
Width of installed product180 mm
Power
-
Nominal power under 440/500, 50Hz90 kW
-
Total power loss under IN17.4 W
-
Power loss per pole at In5.8 W
-
Contact rating with 400 V in AC1164 kW
Cover, door
-
InterlockableYes
Installation, mounting
-
Fixation typeBack plate monting
Connection
-
Connection cross-sect. flexible conductor120mm²
-
Connection cross-sect. rigid cable150mm²
-
Type of connectionTerminal
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
-
Number of auxiliary contacts as change-over contact0
-
Width available for insulation connection185 mm²
-
Motor drive optionalNo
Standards
-
Standard textIEC 60947-3
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeYes
Use conditions
-
Operating temperature-20…70 °C
