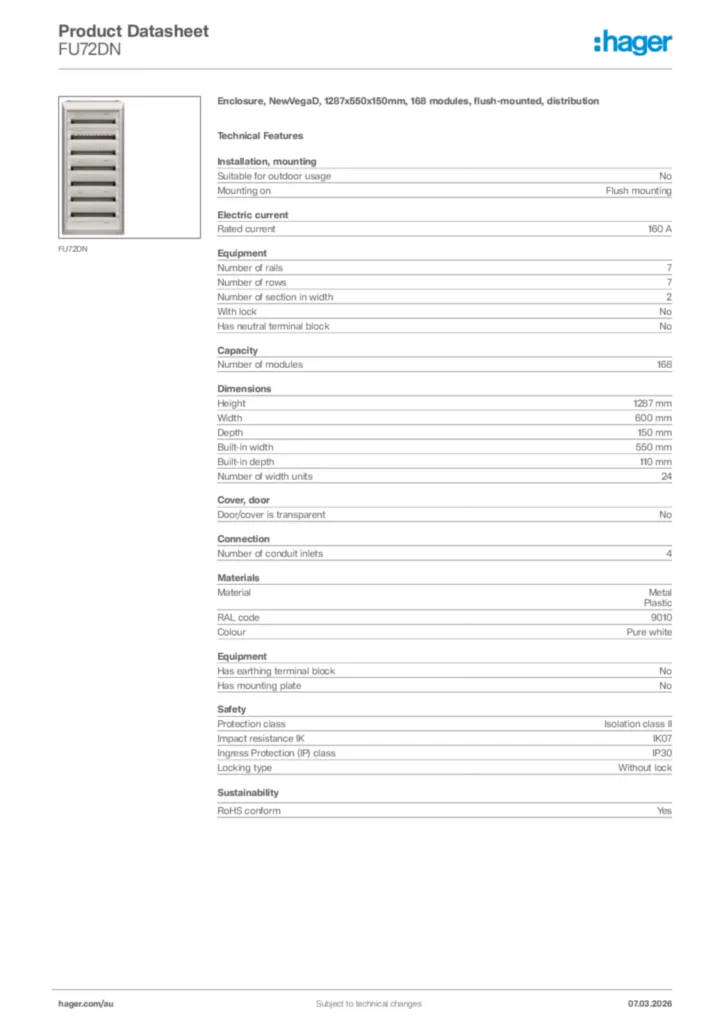

Enclosure, NewVegaD, 1287x550x150mm, 168 modules, flush-mounted, distribution FU72DN
EAN
3250612710768
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Separation plate for meter/distribution boards 1 products available -
Coax connector 1 products available -
Mounting accessories 2 products available -
Cover strip 1 products available
Complete your system
Technical properties
Connection
-
Number of conduit inlets4
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onFlush mounting
Electric current
-
Rated current160 A
Equipment
-
Number of rails7
-
Number of rows7
-
Number of section in width2
-
With lockNo
-
Has neutral terminal blockNo
-
Has earthing terminal blockNo
-
Has mounting plateNo
Capacity
-
Number of modules168
Dimensions
-
Height1287 mm
-
Width600 mm
-
Depth150 mm
-
Built-in width550 mm
-
Built-in depth110 mm
-
Number of width units24
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialMetal, Plastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP30
-
Locking typeWithout lock
