The Hager modular contactor 25A 2NO with 24V~ 50Hz coil enables reliable remote switching of lighting, heating, ventilation or other loads. Two normally open contacts handle up to 25A for safe isolation and durability. Its compact DIN-rail modular design saves space in distribution boards, ideal for residential and light commercial control applications. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.

EAN

3250612400584

Packaging

1 Piece

Contactors Configurator

Contactors 25A to 63A

Hager Modular Contactor 25A 2NO 24V~ 50Hz ESD225

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Mechanic accessories for low-voltage components 1 products available
Auxiliary device for distribution board devices 1 products available

Technical properties

Type of contacts

2NO
Number of contacts

2
Cross-section flexible conductor

1 - 6 mm²
Cross-section rigid conductor

1 - 10 mm²

Rated current

25 A
Acceptable current rating AC3

8,5 A

Number of modules

1

Frequency

50 - 50 Hz

Rated impulse withstand voltage Uimp

4000 V
Rated insulation voltage Ui

250 V
Rated operational voltage Ue

230 - 230 V
Command voltage AC

24 - 24 V
Command voltage DC

0 - 0 V

Operating temperature

-10 - 50 °C
Storage/transport temperature

-40 - 80 °C

Category of use

AC-7a/AC-7b

Number of mechanical operations

100000
Electric endurance in number of cycles

30000

Total power loss under IN

4 W
Inrush power absorbed

10,70 VA

Height

83 mm
Width

17,85 mm
Depth

60 mm

Number of NO contacts

2
Number of NC contacts

0
With switch for manual switch

No

Nominal tightening torque

1,20 - 1,20 Nm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

PEP - Contactor 25A, 2NO, 230V (English)

PDF

3,90 MB

REACH declaration ESD225

PDF

RoHS report ESD225

PDF

Downloads

Product image

Product Image ESD225
Product datasheet

Hager Product data sheet ESD225

Contactor 25A, 2NO, 24V~50Hz

PDF
Tools

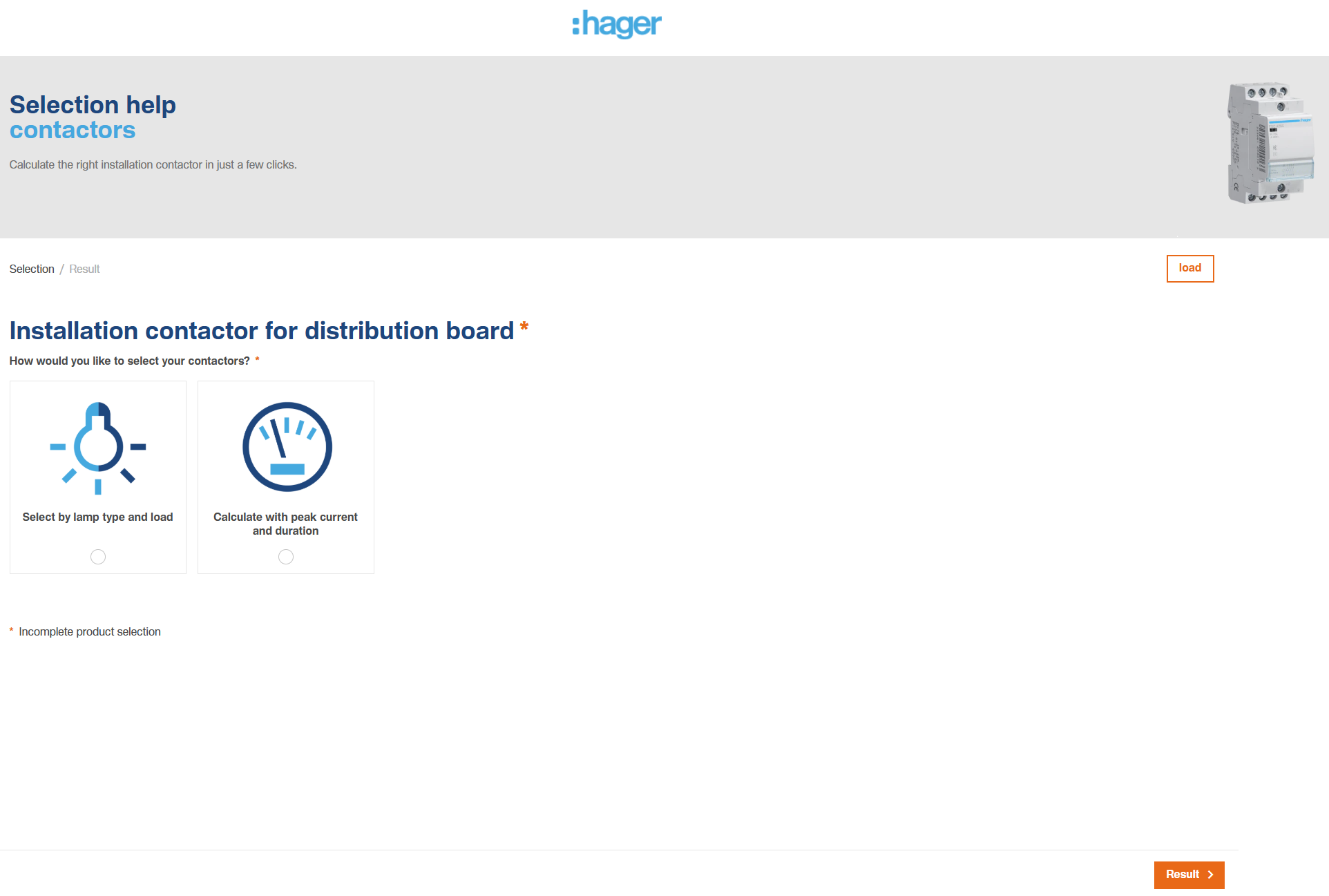

Contactors Configurator
