Contactor 40A, 2NO, 230V~50Hz ESC240
EAN
3250612401055
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderNot applicable
-
Number of poles2 P
Configuration
-
Number of modules3
Main electrical features
-
Rated operational voltage Ue400 V
-
Frequency50 Hz
Voltage
-
Rated insulation voltage440 V
-
DC control voltage0 V
-
Command voltage AC230 V
-
Rated impulse withstand voltage4 kV
Electric current
-
Rated current40 A
-
Thermal rated current outside of housings40 A
-
Acceptable current load with AC7 category A40 A
-
Acceptable current load with AC7 category B25 A
Dimensions
-
Depth of installed product60 mm
-
Height of installed product85 mm
-
Width of installed product54 mm
Power
-
Inrush power absorbed62.5 VA
-
Operating consumption5.7 VA
-
Total power loss under IN7.9 W
-
Power loss per contact3.2 W
-
Power dissipation per coil1.5 W
-
Contact rating with 230 V in AC7 category A7.3 kW
-
Contact rating with 230 V in AC7 category B2.6 kW
-
Contact rating with 400 V in AC7 category A22 kW
-
Contact rating with 400 V in AC7 category B7.8 kW
Tripping
-
Time of response when opening20 ms
-
Time of response when closing25 ms
Resistance
-
Winding resistance770 Ω
Endurance
-
Electric endurance in number of cycles30000
-
Number of mechanical operations100000
Fluorescent bulbs control
-
Max. power with fluorescent parallel lamps1300 VA
-
Fluorescent lamps in duo circuit3000 VA
-
Max. load fluorescent lamp1900 VA
Incandescent bulbs control
-
Max. power with incandescent lamps4000 W
Installation, mounting
-
Tightening torqueCoil: 2,5Nm ; Power: 3,5Nm
Connection
-
Connection cross-sect. flexible conductor1,5 / 16mm²
-
Connection cross-sect. rigid cable1,5 / 25mm²
-
Number of contacts2
-
Type of contacts2NO
-
Type of connectionwith screw
-
Connection cross-section of the control cable solid1 / 2.5 mm²
Equipment
-
Can be accessorizedYes
Use
-
Local operation/hand operationNo
Safety
-
Protection classisol.class II
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-10…50 °C
-
Storage/transport temperature-40…80 °C
Downloads
-
Product image
-

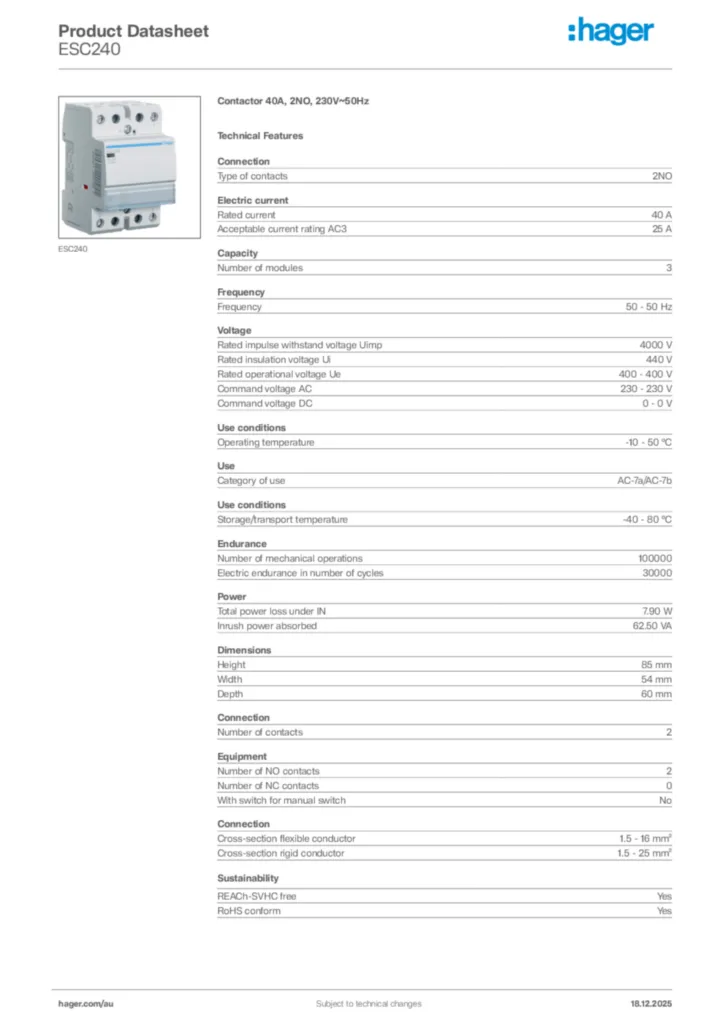

Product data sheet
