The Hager 25A Modular Contactor with 2NC contacts and 230V~50Hz coil provides safe, reliable switching and isolation of loads. Ideal for lighting, heating, and ventilation control in residential and commercial boards. Compact DIN-rail design saves space, while the 2 normally closed poles enable secure fail-safe control and efficient remote operation. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.
EAN
3250612400713
Packaging
12
Hager Modular Contactor 25A 2NC 230V~ 50Hz ESC226
Login to create a product list
You need to be logged into your myHager account to create product lists
Configure the product
For the best experience, please use a desktop device, as some features may not be fully supported on mobile or tablet.
Contactors Configurator
Open toolsComplete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliary device for distribution board devices 1 products available
Technical properties
Connection
-
Type of contacts2NC
-
Number of contacts2
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
Electric current
-
Rated current IN25 A
Capacity
-
Number of modules1
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated insulation voltage Ui250 V
-
Rated operational voltage Ue230 - 230 V
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100000
-
Electric endurance in number of cycles30000
Power
-
Power dissipation at IN3 W
-
Inrush power absorbed7,40 VA
Dimensions
-
Height83 mm
-
Width17,85 mm
-
Depth60 mm
Equipment
-
Number of NO contacts0
-
Number of NC contacts2
-
With switch for manual switchNo
Installation, mounting
-
Nominal tightening torque1,20 - 1,20 Nm
Functions
-
Hum-freeNo
Architecture
-
Number of poles2
Downloads
-
Product image
-
Product datasheet

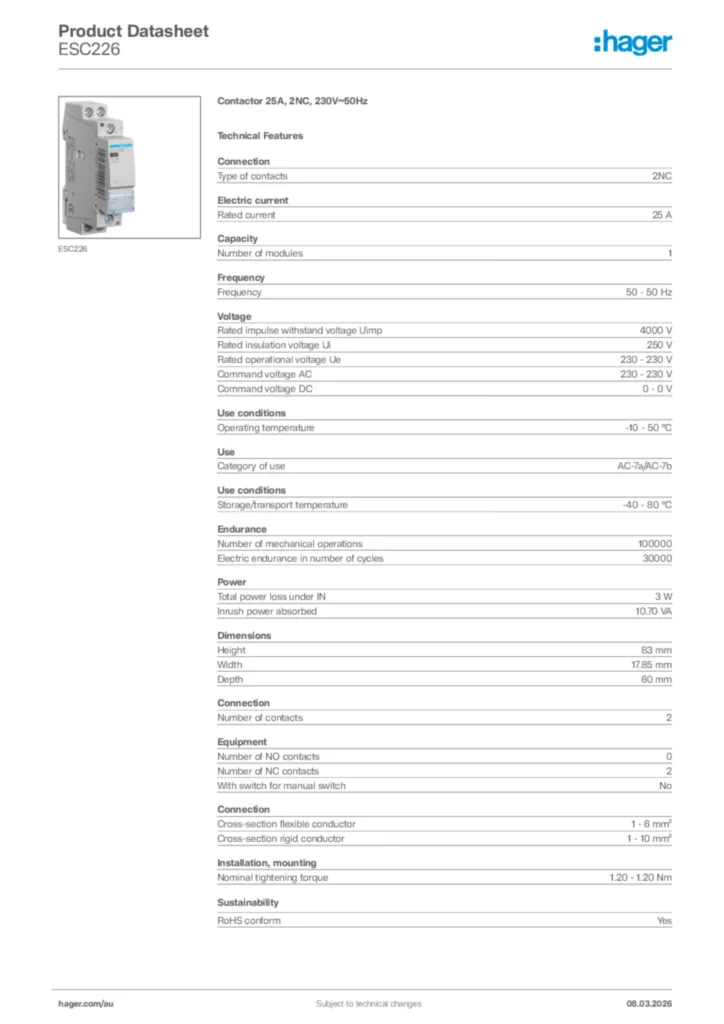

Hager Product data sheet ESC226
