Hager The Hager modular latching relay 4NO 230V provides reliable switching and centralized control of multiple circuits. Its 4 normally open contacts and 230 V control enable flexible lighting or load management. The bistable design maintains state without continuous power, saving energy. DIN-rail modular format integrates neatly in distribution boards for residential and commercial installations.
EAN
3250612369454
Packaging
1 Piece
Latching relay 4NO 230V Modular Relay EPN540
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current16 A
-
Quiescent current6 mA
-
Acceptable current rating AC116 A
Capacity
-
Number of modules2
Connection
-
Type of contacts4NO
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
-
Number of contacts4
Voltage
-
Command voltage AC230 - 230 V
-
Command voltage DC110 - 110 V
-
Command voltage 2110 - 110 V
-
Command voltage 1230 - 230 V
-
Rated insulation voltage Ui400 V
-
Rated operational voltage Ue250 - 400 V
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-5 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Power
-
Total power loss under IN4,80 W
-
Inrush power absorbed55 VA
Dimensions
-
Height83 mm
-
Width35 mm
-
Depth63 mm
Lighting
-
Max. load fluorescent lamp800 VA
-
Max. load fluorescent lamp parallel compensated900 VA
Equipment
-
Number of NO contacts4
-
Number of NC contacts0
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

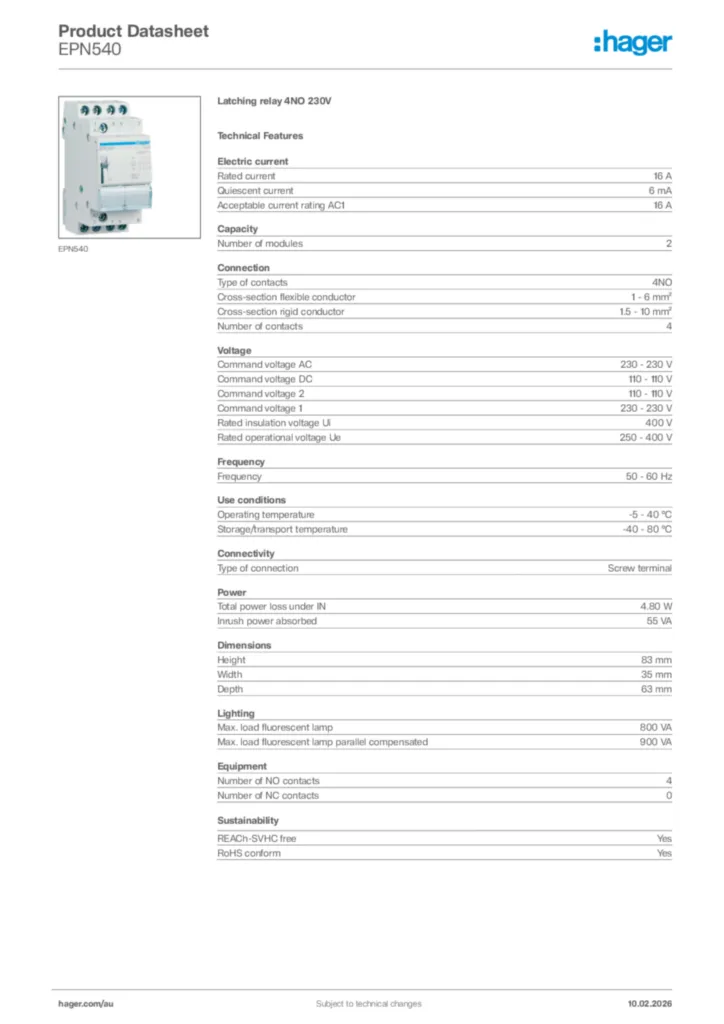

Hager Product data sheet EPN540
