Hager The Hager latching relay 1NC+1NO 230V provides bistable remote control with low standby (6 mA). Rated 16 A AC1 at 250 V, ideal for lighting and load control; handles fluorescent loads up to 800 VA (900 VA parallel compensated). Compact 1-module (17.5 mm) with screw terminals for 1-6 mm² flexible / 1.5-10 mm² rigid. Coil command 230 V AC or 110 V DC, 50-60 Hz. Ui/Ue 250 V. Power loss 1.2 W.
EAN
3250612369577
Packaging
1 Piece
Latching relay 1NO+1NC 16A 230V AC coil Screw terminals 1 Module EPN515
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current16 A
-
Quiescent current6 mA
-
Acceptable current rating AC116 A
Capacity
-
Number of modules1
Connection
-
Type of contacts1NC+1NO
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
-
Number of contacts2
Voltage
-
Command voltage AC230 - 230 V
-
Command voltage DC110 - 110 V
-
Command voltage 2110 - 110 V
-
Command voltage 1230 - 230 V
-
Rated insulation voltage Ui250 V
-
Rated operational voltage Ue250 - 250 V
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-5 - 40 °C
-
Storage/transport temperature-40 - 80 °C
Connectivity
-
Type of connectionScrew terminal
Power
-
Total power loss under IN1,20 W
-
Inrush power absorbed25 VA
Dimensions
-
Height83 mm
-
Width17,50 mm
-
Depth63 mm
Lighting
-
Max. load fluorescent lamp800 VA
-
Max. load fluorescent lamp parallel compensated900 VA
Equipment
-
Number of NO contacts1
-
Number of NC contacts1
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

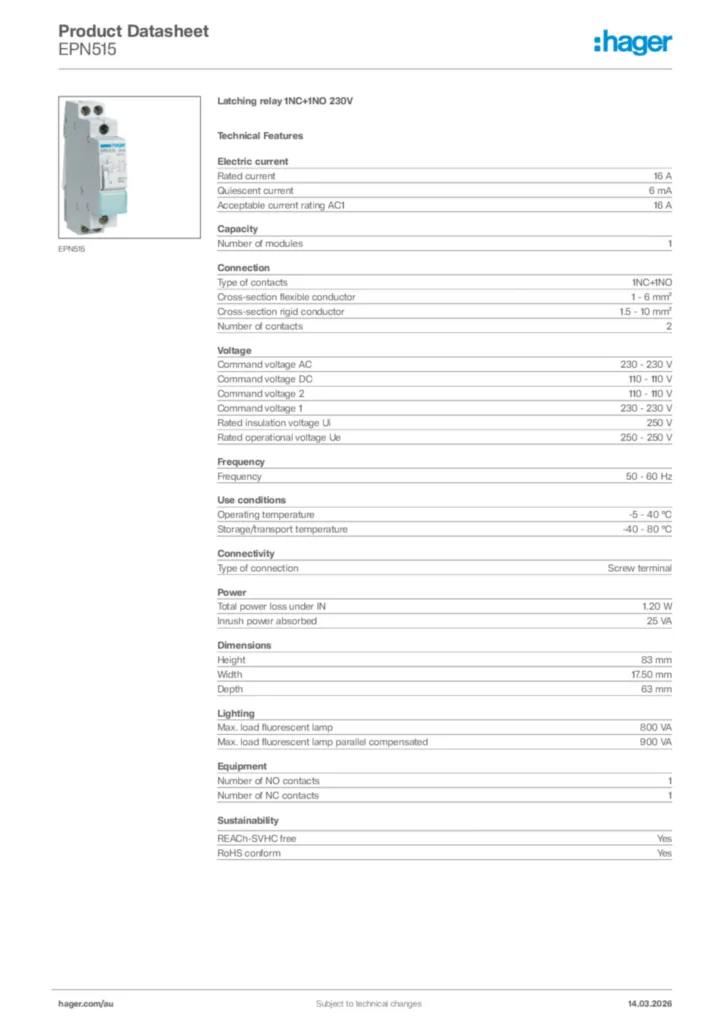

Hager Product data sheet EPN515
