Hager The Hager BGUK 3-phase current transformer with RJ45 output provides accurate metering and protection up to 160 A. Class 1 accuracy delivers a 330 mV secondary with plug-in RJ45 for fast wiring. Fits 35 mm pitch, mounts on busbar or cable with 25 x 21 mm window, Ui 3000 V. Operates -25 to 50 °C at 50 Hz—ideal for residential, commercial, and panel energy monitoring.
EAN
3250617121095
Packaging
1 Piece
Current Transformer 3-Phase 160A/330mV RJ45 Class 1 35mm EC25160CT
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Specific identificaton attributes for Protection
-
Filter Type product3-phase current transformer replacement
Functions
-
Accuracy class1
Dimensions
-
Height80 mm
-
Width105 mm
-
Depth54 mm
-
Height of opening25 mm
-
Width of opening21 mm
Connectivity
-
Type of connectionPlug-in connection
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated power-frequency withstand voltage (r.m.s.)3000 V
-
Max. operating voltage720 V
Use conditions
-
Operating temperature-25 - 50 °C
-
Storage/transport temperature-40 - 85 °C
Electric current
-
Rated primary current (Ipr)160 A
-
Rated dynamic current2.5*Ith
-
Over voltage limiting factorFS 5
Installation, mounting
-
Mounting onBusbar, Cable
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

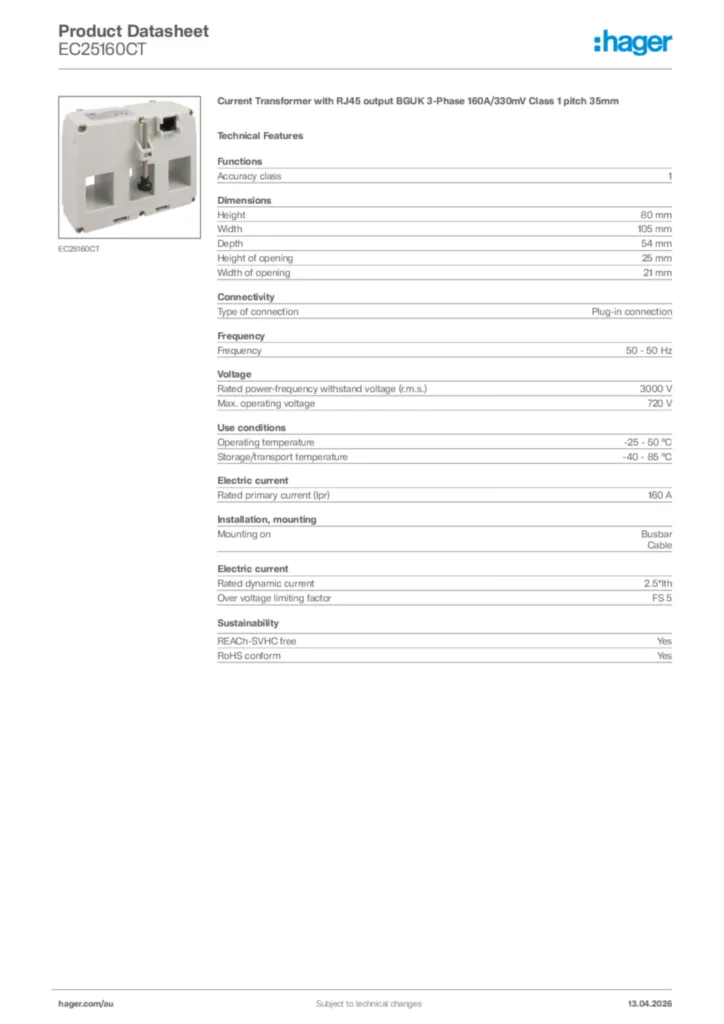

Product datasheet
