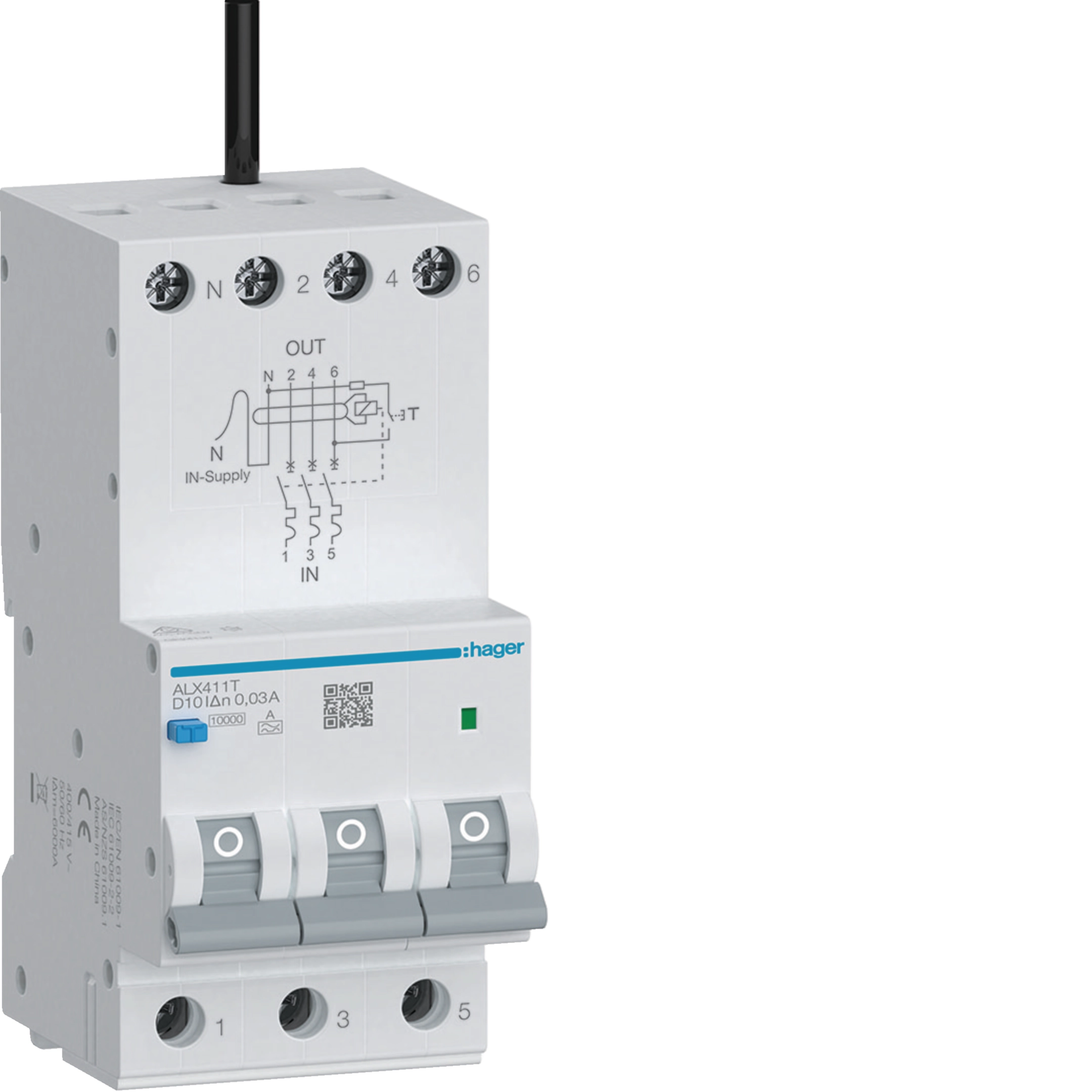

Hager The Hager RCBO Electronic 3M 3P+N 10kA D-10A 30mA Type A combines overcurrent and earth leakage protection for three-phase circuits. With 10kA breaking capacity, D-curve 10A for high inrush loads, and 30mA Type A sensitivity, it ensures reliable safety. Rated 400-415 V AC (Ui 500 V, Uimp 4 kV), IP20. Compact 3-module DIN-rail device ideal for motors and mixed-use subcircuits in commercial and residential setups.

EAN

3250610015834

Packaging

1 Piece

Residual Current Circuit Breakers with Overcurrent Protection - (RCBOs)

RCBO Electronic 3P+N 10A D Curve 10kA 30mA Type A, 3 Modules ALX411T

Technical properties
Environmental value
Documentations
More products

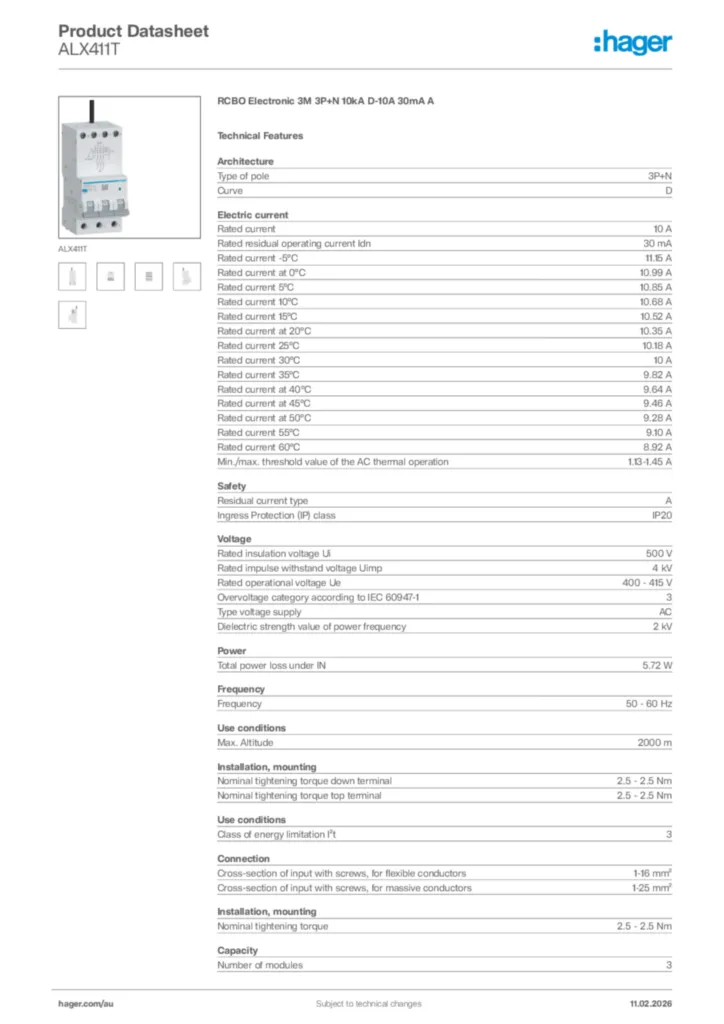

Download the data sheet

Technical properties

Type of pole

3P+N
Curve

D

Residual current type

A
Ingress Protection (IP) class

IP20

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4 kV
Rated operational voltage Ue

400 - 415 V
Overvoltage category according to IEC 60947-1

3
Type voltage supply

AC
Dielectric strength value of power frequency

2 kV

Rated current

10 A
Rated residual operating current Idn

30 mA
Rated current -5°C

11,15 A
Rated current at 0°C

10,99 A
Rated current 5°C

10,85 A
Rated current 10°C

10,68 A
Rated current 15°C

10,52 A
Rated current at 20°C

10,35 A
Rated current 25°C

10,18 A
Rated current 30°C

10 A
Rated current 35°C

9,82 A
Rated current at 40°C

9,64 A
Rated current at 45°C

9,46 A
Rated current at 50°C

9,28 A
Rated current 55°C

9,10 A
Rated current 60°C

8,92 A
Min./max. threshold value of the AC thermal operation

1,13-1,45 A

Total power loss under IN

5,72 W

Frequency

50 - 60 Hz

Nominal tightening torque down terminal

2,5 - 2,5 Nm
Nominal tightening torque top terminal

2,5 - 2,5 Nm
Nominal tightening torque

2,5 - 2,5 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-5 - 70 °C
Storage/transport temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2

Cross-section of input with screws, for flexible conductors

1-16 mm²
Cross-section of input with screws, for massive conductors

1-25 mm²
Cross-section of input and output with screws, for flexible conductors

1-16 mm²
Cross-section of input and output with screws, for massive conductors

1-25 mm²
