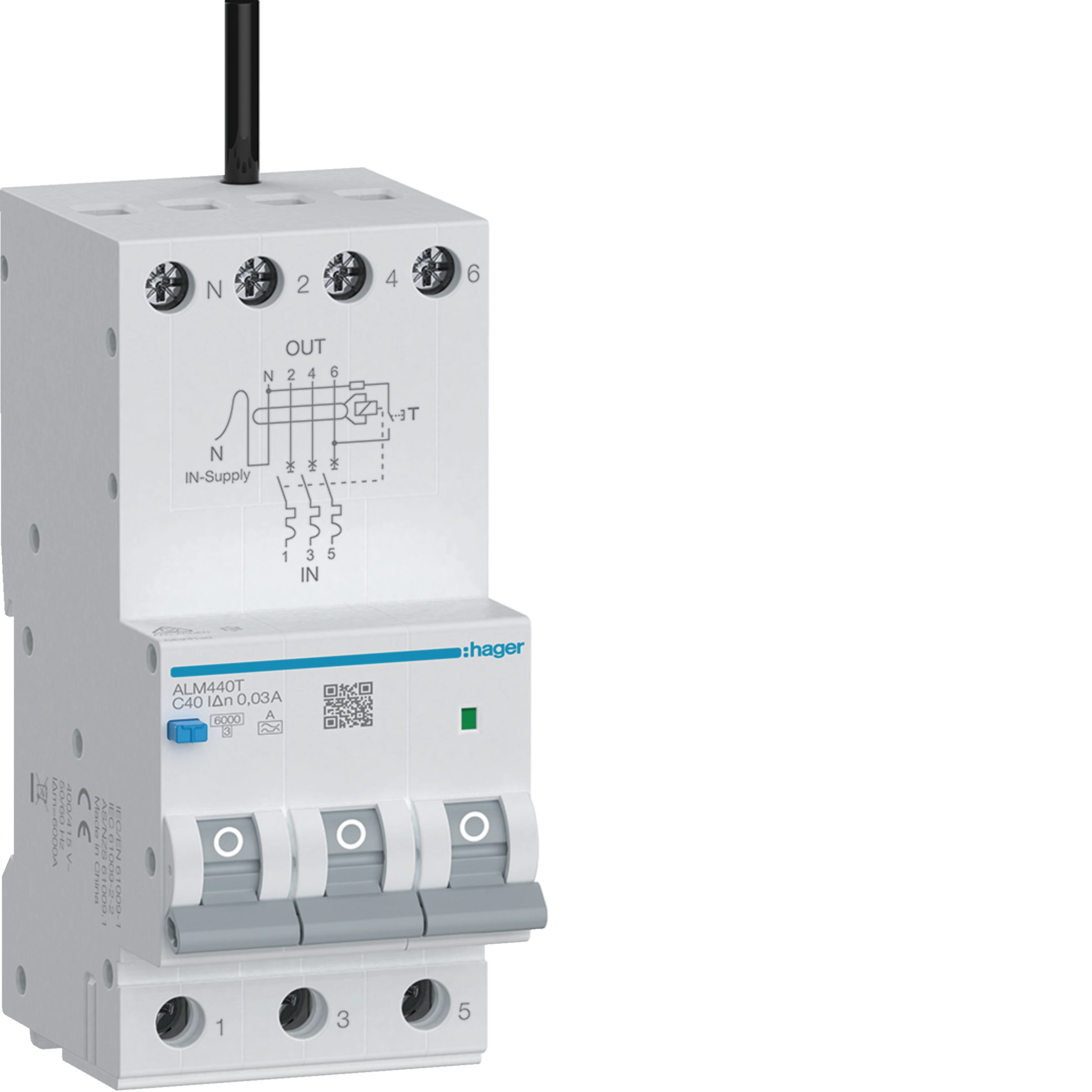

Hager RCBO Electronic 3M 3P+N 6kA C-40A 30mA Type A: combines MCB and RCD for three-phase circuits, protecting against overloads, short circuits and earth leakage. C-curve 40A for mixed/motor loads; 6kA breaking capacity. Electronic Type A for reliable 30mA personal protection. Compact 3-module IP20 for 400-415V AC, DIN-rail mount with screw/biconnect terminals. For residential/commercial switchboards and compliant electrical distribution.

EAN

3250610015643

Packaging

1 Piece

Residual Current Circuit Breakers with Overcurrent Protection - (RCBOs)

Hager RCBO Electronic 3P+N 40A C-curve 6kA 30mA Type A 3 Modules ALM440T

Technical properties
Environmental value
Documentations
More products

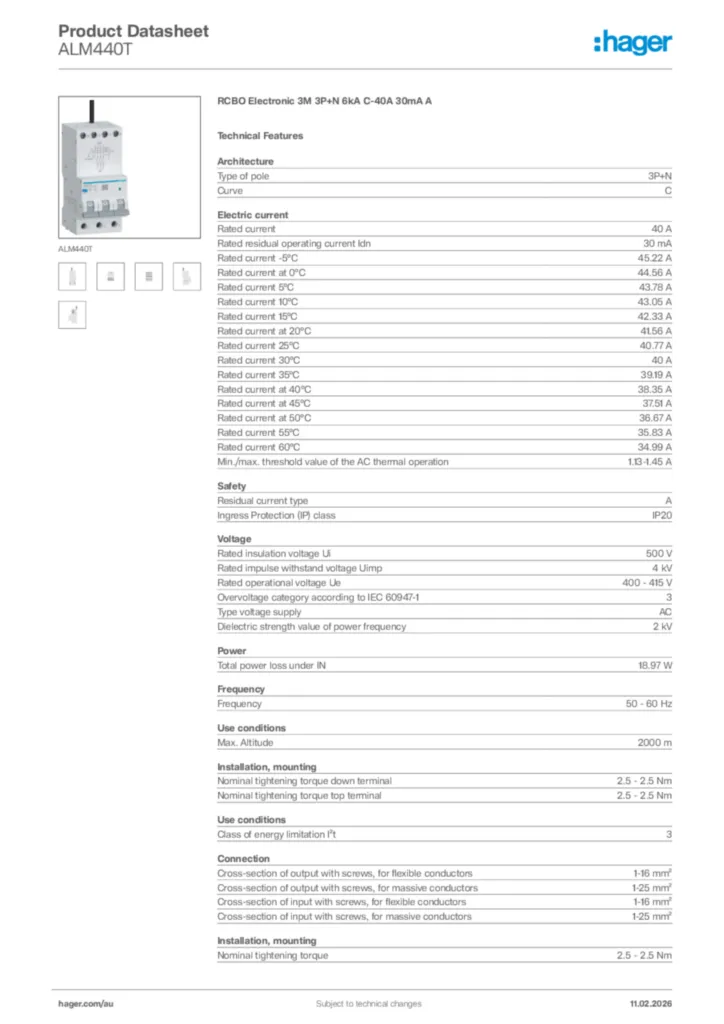

Download the data sheet

Technical properties

Type of pole

3P+N
Curve

C

Residual current type

A
Ingress Protection (IP) class

IP20

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4 kV
Rated operational voltage Ue

400 - 415 V
Overvoltage category according to IEC 60947-1

3
Type voltage supply

AC
Dielectric strength value of power frequency

2 kV

Rated current

40 A
Rated residual operating current Idn

30 mA
Rated current -5°C

45,22 A
Rated current at 0°C

44,56 A
Rated current 5°C

43,78 A
Rated current 10°C

43,05 A
Rated current 15°C

42,33 A
Rated current at 20°C

41,56 A
Rated current 25°C

40,77 A
Rated current 30°C

40 A
Rated current 35°C

39,19 A
Rated current at 40°C

38,35 A
Rated current at 45°C

37,51 A
Rated current at 50°C

36,67 A
Rated current 55°C

35,83 A
Rated current 60°C

34,99 A
Min./max. threshold value of the AC thermal operation

1,13-1,45 A

Total power loss under IN

18,97 W

Frequency

50 - 60 Hz

Nominal tightening torque down terminal

2,5 - 2,5 Nm
Nominal tightening torque top terminal

2,5 - 2,5 Nm
Nominal tightening torque

2,5 - 2,5 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-5 - 70 °C
Storage/transport temperature

-25 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2

Cross-section of output with screws, for flexible conductors

1-16 mm²
Cross-section of output with screws, for massive conductors

1-25 mm²
Cross-section of input with screws, for flexible conductors

1-16 mm²
Cross-section of input with screws, for massive conductors

1-25 mm²
Cross-section of input and output with screws, for flexible conductors

1-16 mm²
Cross-section of input and output with screws, for massive conductors

1-25 mm²
