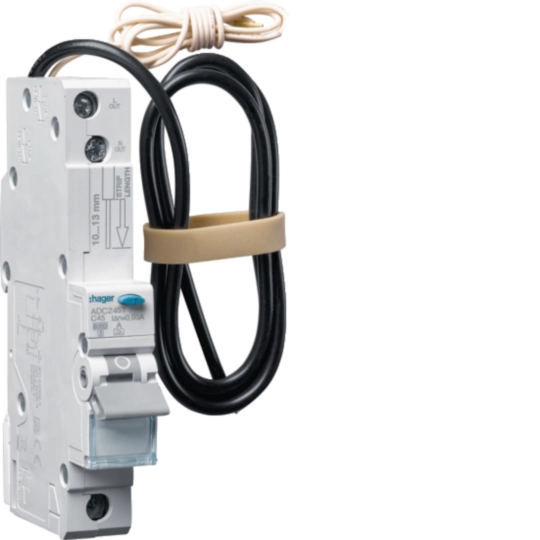

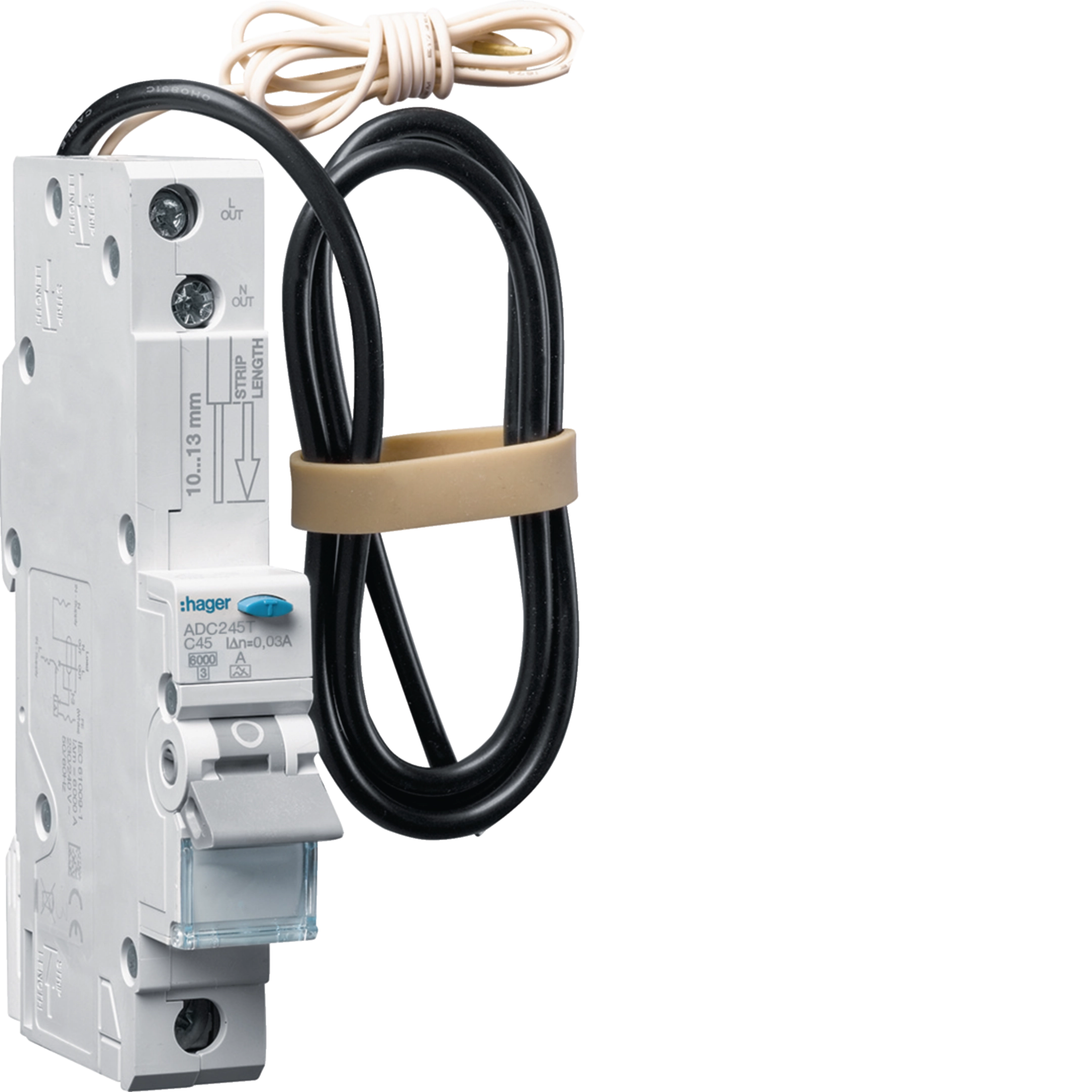

Hager The Hager RCBO 1M 1P 45A C-curve, 6kA, 30mA Type A combines MCB and RCD protection to guard circuits against overloads, short-circuits and earth leakage. Rated 230-240 V, 50/60 Hz with 4 kV impulse withstand and IP20, it fits a single 17.8 mm module for space-saving DIN-rail panels. Biconnect/screw terminals accept 1-25 mm² conductors. Ideal for residential and light commercial use.

EAN

3250611035770

Packaging

1 Piece

Residual Current Circuit Breakers with Overcurrent Protection - (RCBOs)

RCBO 1P 45A Curve C 6kA 30mA Type A 230V 1 Module ADC245T

Accessories
Technical properties
Environmental value
Documentations
More products

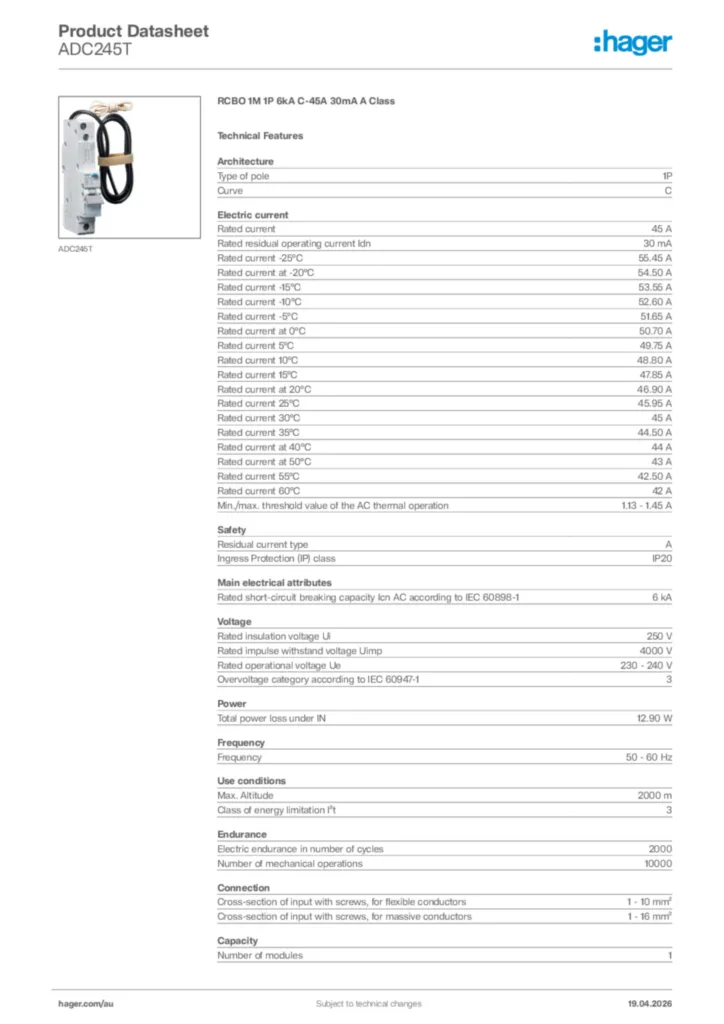

Download the data sheet

Complete your system

Locking interlocking functions 1 products available

Technical properties

Type of pole

1P
Curve

C

Rated current

45 A
Rated residual operating current Idn

30 mA
Rated current -25°C

55,45 A
Rated current at -20°C

54,50 A
Rated current -15°C

53,55 A
Rated current -10°C

52,60 A
Rated current -5°C

51,65 A
Rated current at 0°C

50,70 A
Rated current 5°C

49,75 A
Rated current 10°C

48,80 A
Rated current 15°C

47,85 A
Rated current at 20°C

46,90 A
Rated current 25°C

45,95 A
Rated current 30°C

45 A
Rated current 35°C

44,50 A
Rated current at 40°C

44 A
Rated current at 50°C

43 A
Rated current 55°C

42,50 A
Rated current 60°C

42 A
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4000 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

12,90 W

Frequency

50 - 60 Hz

Max. altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-5 - 40 °C
Storage/transport temperature

-40 - 70 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

10000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
