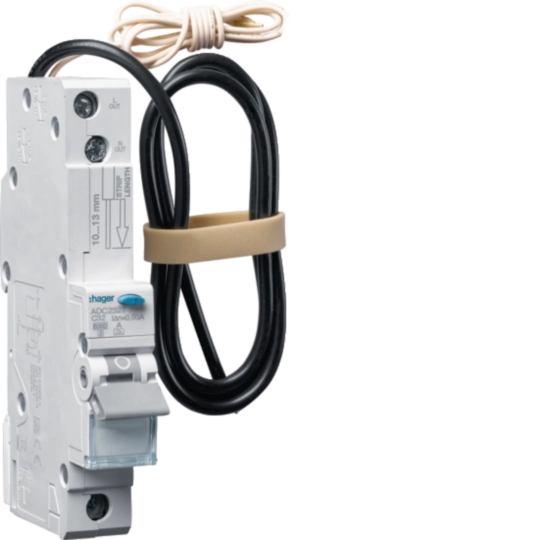

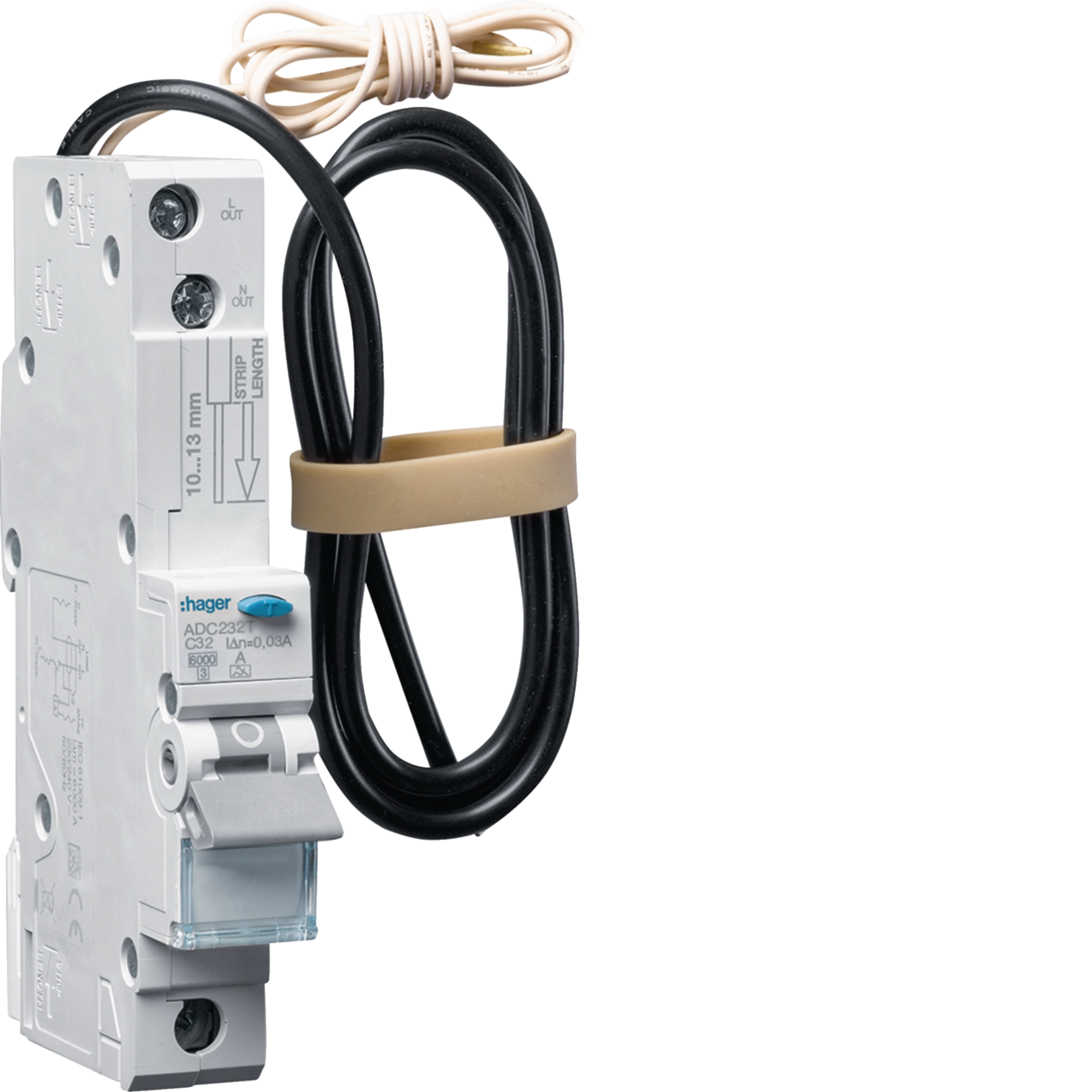

RCBO 1M 1P 6kA C-32A 30mA A Class ADC232T
EAN
3250611035718
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available
Technical properties
Architecture
-
Type of pole1P
-
CurveC
Electric current
-
Rated current32 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C42,45 A
-
Rated current at -20°C41,50 A
-
Rated current -15°C40,55 A
-
Rated current -10°C39,60 A
-
Rated current -5°C38,65 A
-
Rated current at 0°C37,70 A
-
Rated current 5°C36,75 A
-
Rated current 10°C35,80 A
-
Rated current 15°C34,85 A
-
Rated current at 20°C33,90 A
-
Rated current 25°C32,95 A
-
Rated current 30°C32 A
-
Rated current 35°C31,15 A
-
Rated current at 40°C30,30 A
-
Rated current at 50°C28,60 A
-
Rated current 55°C27,75 A
-
Rated current 60°C26,90 A
-
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue230 - 240 V
-
Overvoltage category according to IEC 60947-13
Power
-
Total power loss under IN9,90 W
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Max. Altitude2000 m
-
Class of energy limitation I²t3
-
Operating temperature-5 - 40 °C
-
Storage/transport temperature-40 - 70 °C
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations10000
Connection
-
Cross-section of input with screws, for flexible conductors1 - 10 mm²
-
Cross-section of input with screws, for massive conductors1 - 16 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
Installation, mounting
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Capacity
-
Number of modules1
Dimensions
-
Height115 mm
-
Width17,80 mm
-
Depth70 mm
Compatibility
-
Suitable for DIN RailYes
