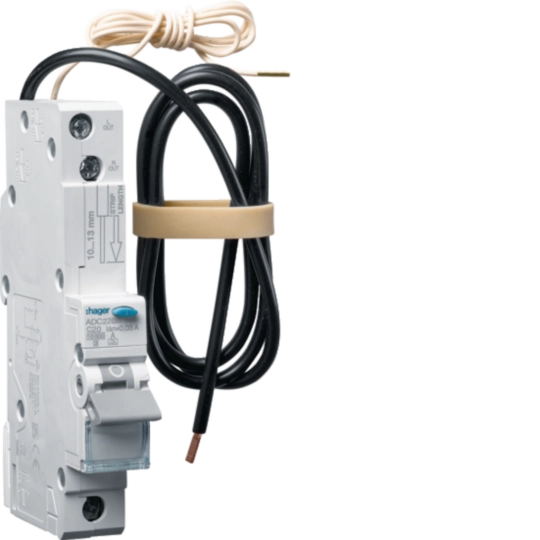

RCBO 1M 1P 10kA C-20A 30mA A ADC220B
EAN
3250611035565
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available

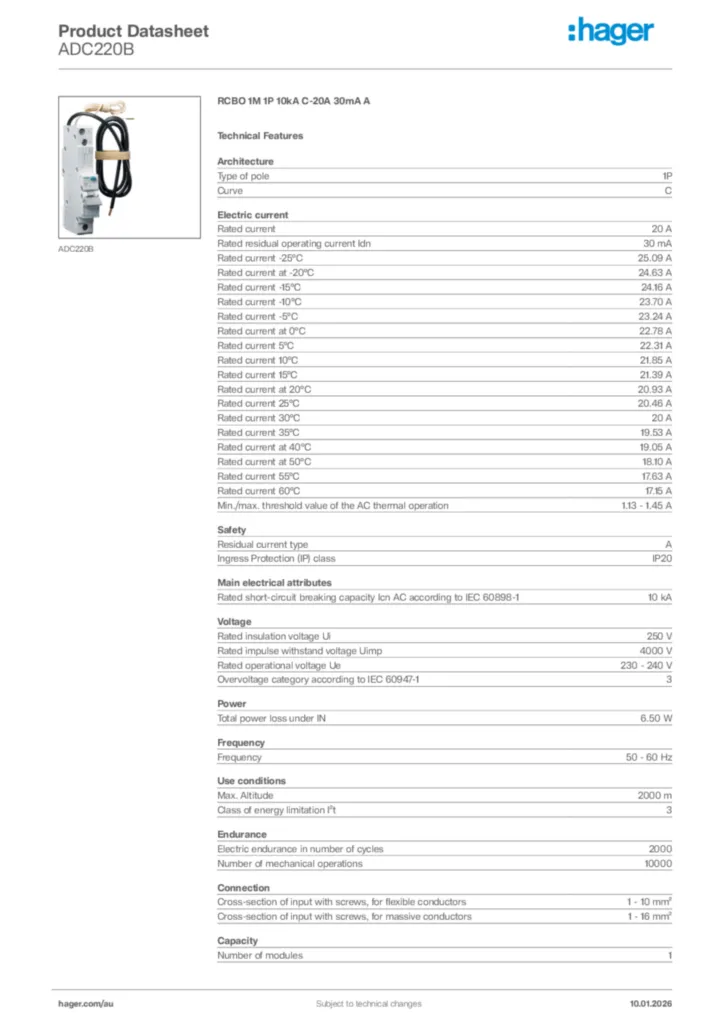

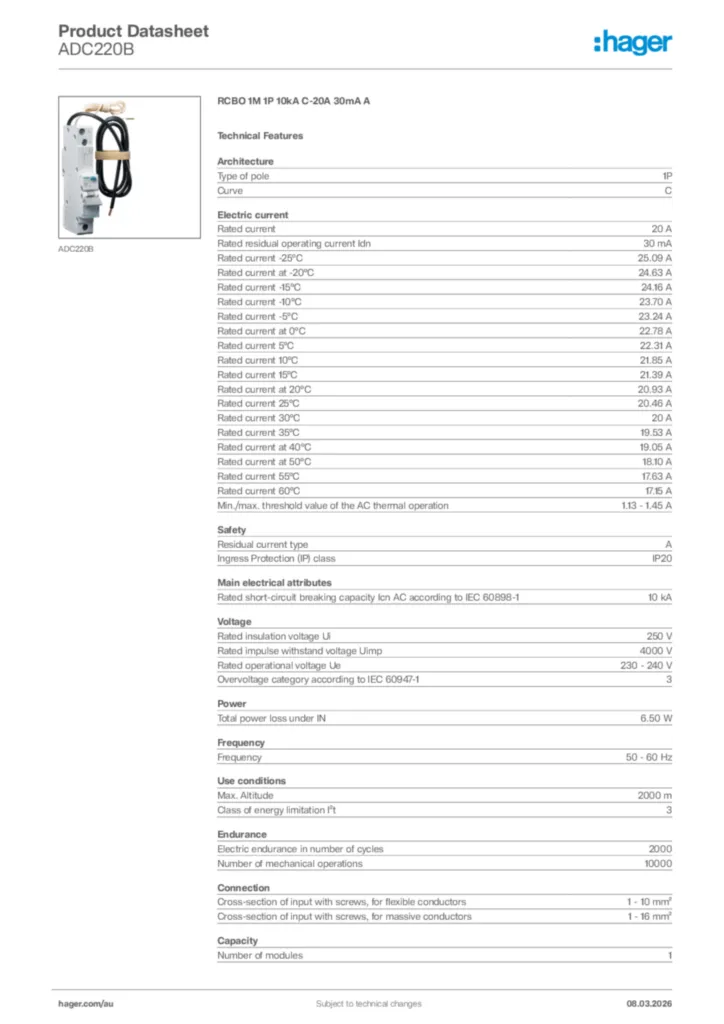

Technical properties
Architecture
-
Type of pole1P
-
CurveC
Electric current
-
Rated current20 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C25,09 A
-
Rated current at -20°C24,63 A
-
Rated current -15°C24,16 A
-
Rated current -10°C23,70 A
-
Rated current -5°C23,24 A
-
Rated current at 0°C22,78 A
-
Rated current 5°C22,31 A
-
Rated current 10°C21,85 A
-
Rated current 15°C21,39 A
-
Rated current at 20°C20,93 A
-
Rated current 25°C20,46 A
-
Rated current 30°C20 A
-
Rated current 35°C19,53 A
-
Rated current at 40°C19,05 A
-
Rated current at 50°C18,10 A
-
Rated current 55°C17,63 A
-
Rated current 60°C17,15 A
-
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp4000 V
-
Rated operational voltage Ue230 - 240 V
-
Overvoltage category according to IEC 60947-13
Power
-
Total power loss under IN6,50 W
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Altitude2000 m
-
Class of energy limitation I²t3
-
Operating temperature-5 - 40 °C
-
Storage/transport temperature-40 - 70 °C
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations10000
Connection
-
Cross-section of input with screws, for flexible conductors1 - 10 mm²
-
Cross-section of input with screws, for massive conductors1 - 16 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 16 mm²
-
Cross-section of input and output with screws, for massive conductors1 - 25 mm²
Installation, mounting
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Capacity
-
Number of modules1
Dimensions
-
Height115 mm
-
Width17,80 mm
-
Depth70 mm
Compatibility
-
Suitable for DIN RailYes
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
notice disjoncteur RCBO
Installation manual en-GB 2019-04-08
PDF770,59 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-10-25
PDF413,52 kB
