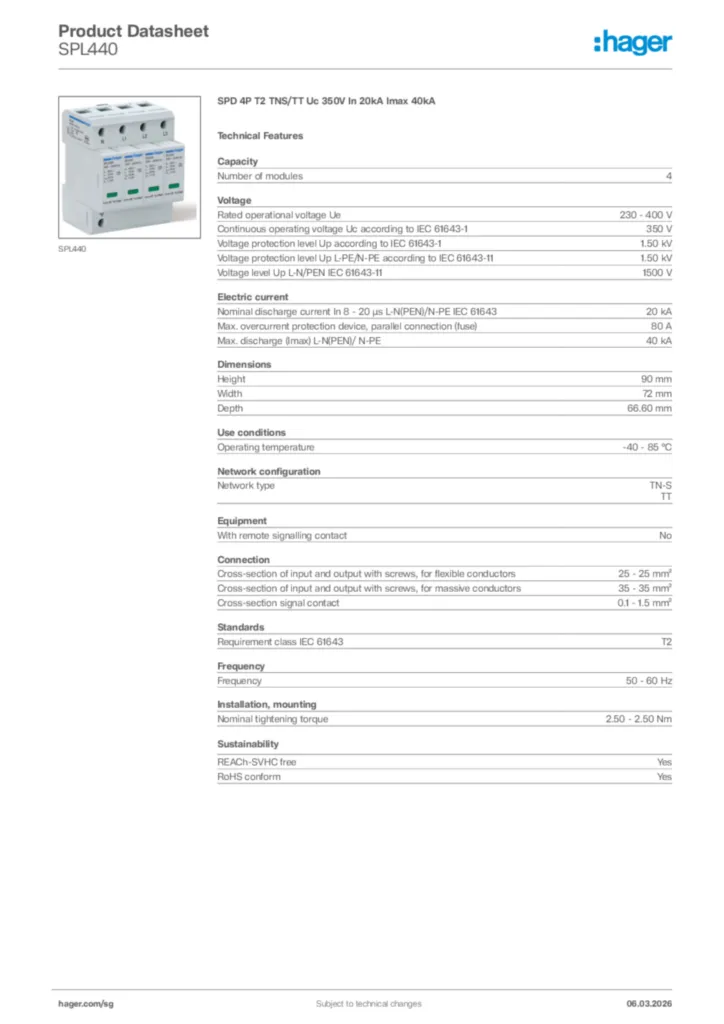

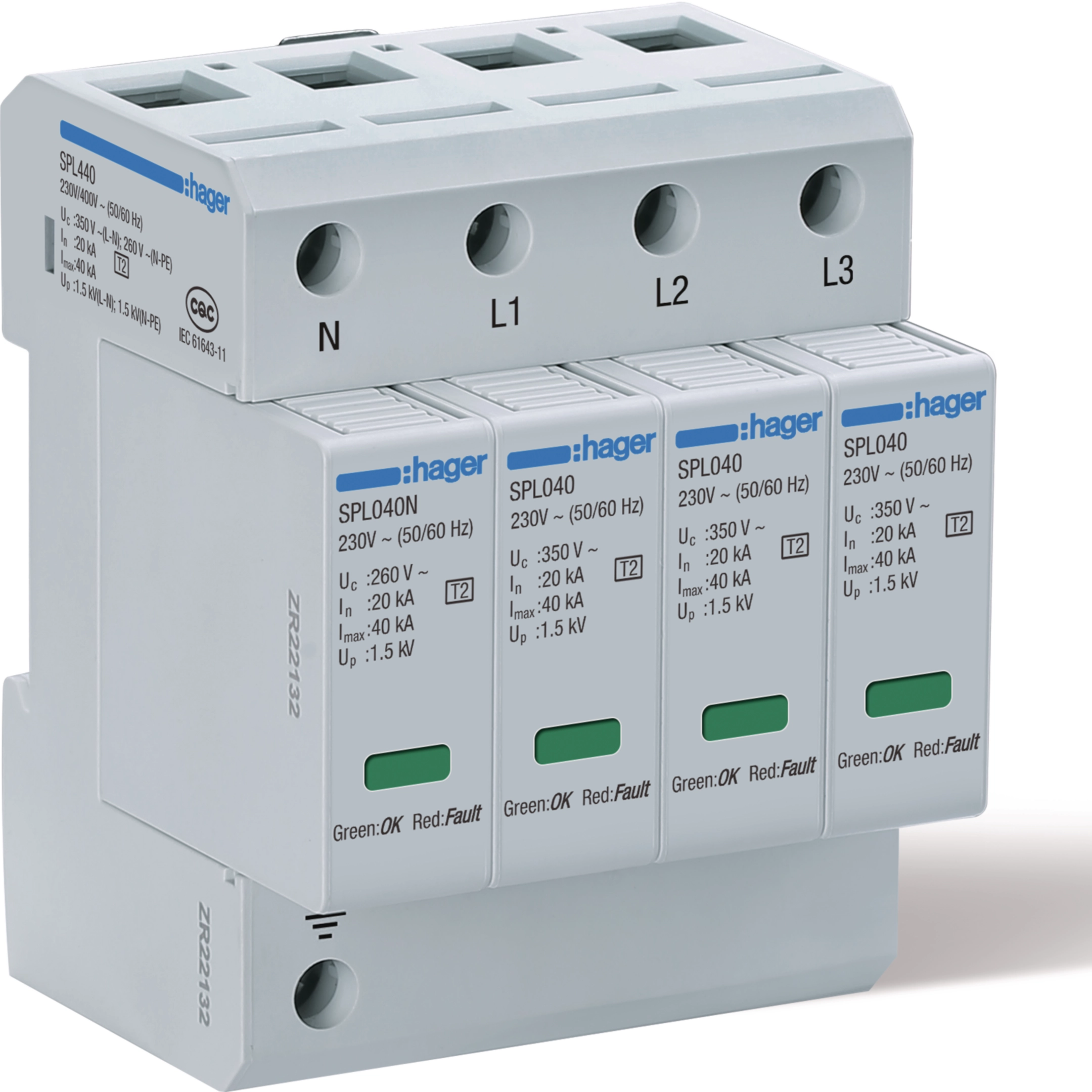

SPD 4P T2 TNS/TT Uc 350V In 20kA Imax 40kA SPL440
EAN-Nr.
3250615515780
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surge protection device for power supply systems 2 products available
Complete your system
Technical characteristics
Capacity
-
Number of modules4
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Continuous operating voltage Uc according to IEC 61643-1350 V
-
Voltage protection level Up according to IEC 61643-11,50 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111,50 kV
-
Voltage level Up L-N/PEN IEC 61643-111500 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
-
Max. overcurrent protection device, parallel connection (fuse)80 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE40 kA
Dimensions
-
Height90 mm
-
Width72 mm
-
Depth66,60 mm
Use conditions
-
Operating temperature-40 - 85 °C
Network configuration
-
Network typeTN-S, TT
Equipment
-
With remote signalling contactNo
Connection
-
Cross-section of input and output with screws, for flexible conductors25 - 25 mm²
-
Cross-section of input and output with screws, for massive conductors35 - 35 mm²
-
Cross-section signal contact0,1 - 1,5 mm²
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque2,50 - 2,50 Nm
