    EAN-Nr.
    3250614062742
    Packaging
    10 Pieces
    • Cylinder fuses and fuse elements

    Cylindrical fuse-links for industrial applications 22x58mm gG 100A 500V AC 120kA LF590G

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Cylindrical fuse-links for industrial applications 22x58mm gG 100A 500V AC 120kA

    LF590G

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Fuse
    • Fuse char­ac­ter­istics
      gG
    • Fuse size
      22 x 58
    Elec­tric current
    • Rated current
      100 A
    Power
    • Total power loss under IN
      9 W
    Main elec­trical attrib­utes
    • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
      120 kA
    Voltage
    • Type voltage supply
      AC
    • Nominal voltage
      500 - 500 V

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Cylindrical fuse-links for industrial applications 10x38mm gG 2A 500V AC 120kA
    PDF
    762,67 kB
    Hager REACH declaration LF590G
    PDF
    Hager RoHS report LF590G
    PDF

    Downloads

    • Image LF590G | Hager

      Product Image LF590G

    • Product datasheet

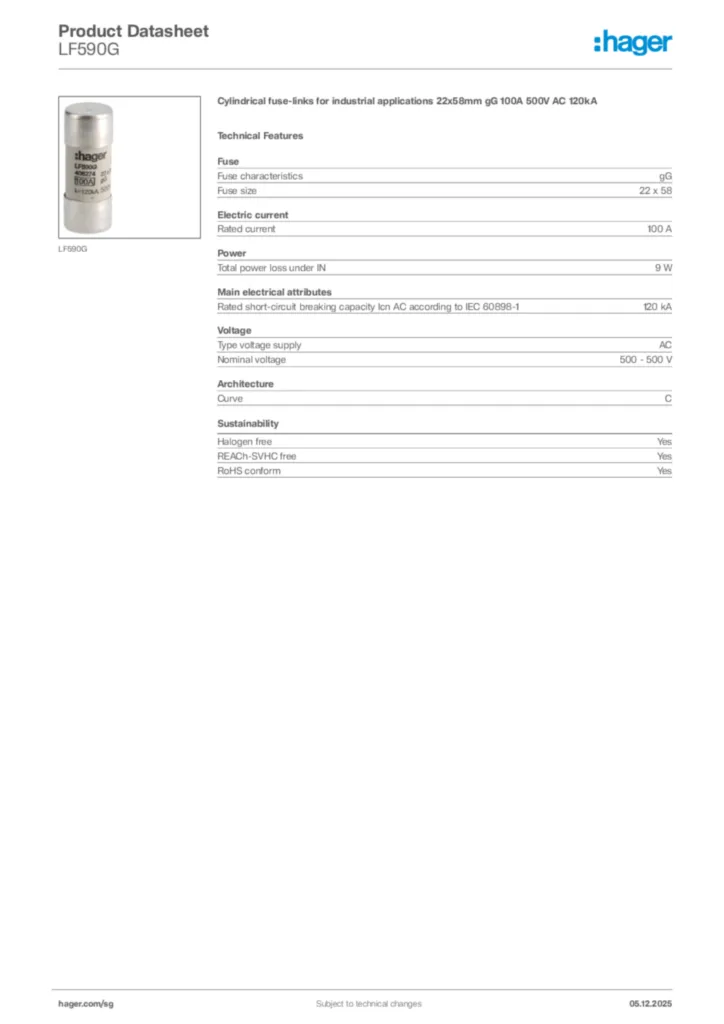

      Image Hager Product data sheet LF590G | Hager

      Hager Product data sheet LF590G

      Cylindrical fuse-links for industrial applications 22x58mm gG 100A 500V AC 120kA

      PDF
    More documentation
