    250A TP&N BOARD 24 WAY Surface enclosure JK2B24S2

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    250A TP&N BOARD 24 WAY Surface enclosure

    JK2B24S2

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • TPN/SPN boards 2 products available
    • Empty cabinet 1 products available

    Complete your system

    • TPN/SPN boards
    • Empty cabinet
    • JK2E32S

      0.00 €  / *
    • JK2E48S

      0.00 €  / *
    • JK2E16S

      0.00 €  / *

    Technical characteristics

    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Breaking and opening capa­city Idm
      0
    Equip­ment
    • Has mounting plate
      No
    • Equipped with switch
      No switch
    • Number of switches
      0
    • Type of busbar chassis
      Fixed load chassis
    Capa­city
    • Number of modules
      24
    Dimen­sions
    • Height
      1195 mm
    • Width
      445 mm
    • Depth
      125 mm
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      9002
    • Colour
      Grey white
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP41
    • Locking type
      Special tool, Without lock
    Archi­tec­ture
    • Number of poles
      72

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    125A 4 Way TPN Board c/w SD & SPD
    PDF
    17,17 MB
    REACH declaration JK2B24S2
    PDF
    Hager RoHS report JK2B24S2
    PDF

    Downloads

    • Image JK2B24S2 | Hager

      Product Image JK2B24S2

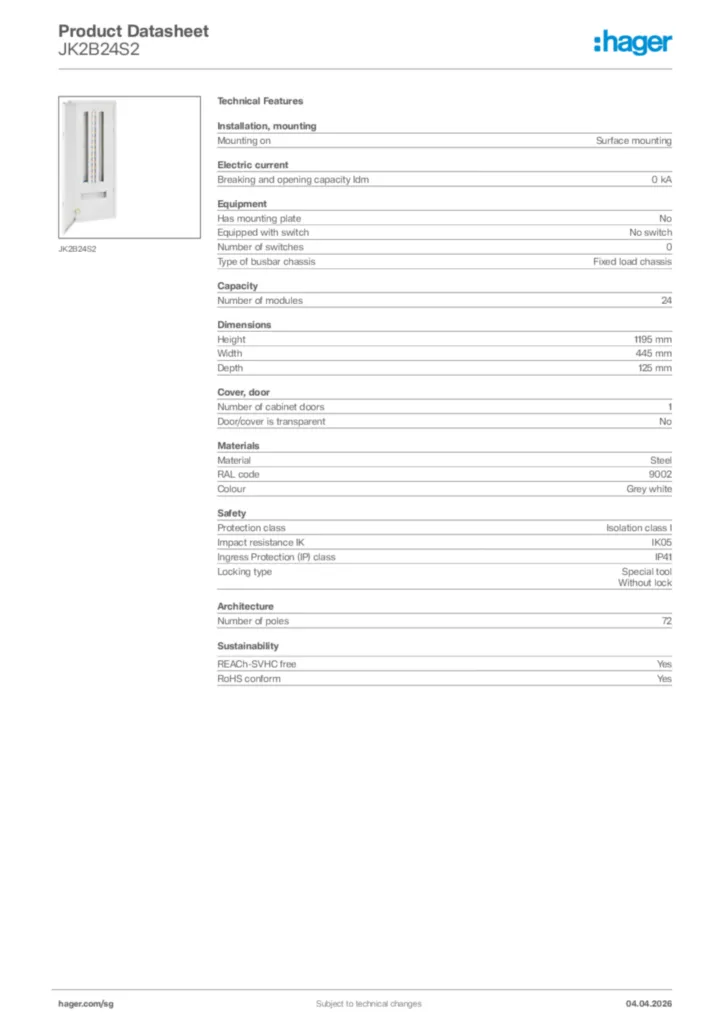

    • Product datasheet

      Image Hager Product data sheet JK2B24S2 | Hager

      Hager Product data sheet JK2B24S2

      Product data sheet en-GB 2026-03-03

      PDF
    More documentation
