250A TP&N BOARD 12 WAY Flush enclosure JK2B12F2

EAN-Nr.
3250611112686
Packaging
1 piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

250A TP&N BOARD 12 WAY Flush enclosure

JK2B12F2

  • Technical characteristics
  • Environmental value
  • Documentations
  • More products
Download the sheet

Technical characteristics

Connec­tion
  • Number of access­ible phases
    3
Install­a­tion, mounting
  • Mounting on
    Surface mounting
Elec­tric current
  • Breaking and opening capa­city Idm
    0
Equip­ment
  • Has mounting plate
    No
  • Equipped with switch
    No switch
  • Number of switches
    0
  • Type of busbar chassis
    Fixed load chassis
Capa­city
  • Number of modules
    12
Dimen­sions
  • Height
    890 mm
  • Width
    470 mm
  • Depth
    5 mm
Cover, door
  • Number of cabinet doors
    1
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Steel
  • RAL code
    9002
  • Colour
    Grey white
Safety
  • Protec­tion class
    Isol­a­tion class I
  • Impact resist­ance IK
    IK05
  • Ingress Protec­tion (IP) class
    IP41
  • Locking type
    Special tool, Without lock
Archi­tec­ture
  • Number of poles
    36

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

125A 4 Way TPN Board c/w SD & SPD
PDF
17,17 MB
REACH declaration JK2B12F2
PDF
Hager RoHS report JK2B12F2
PDF

Downloads

  • Image JK2B12F2 | Hager

    Product Image JK2B12F2

  • Product datasheet

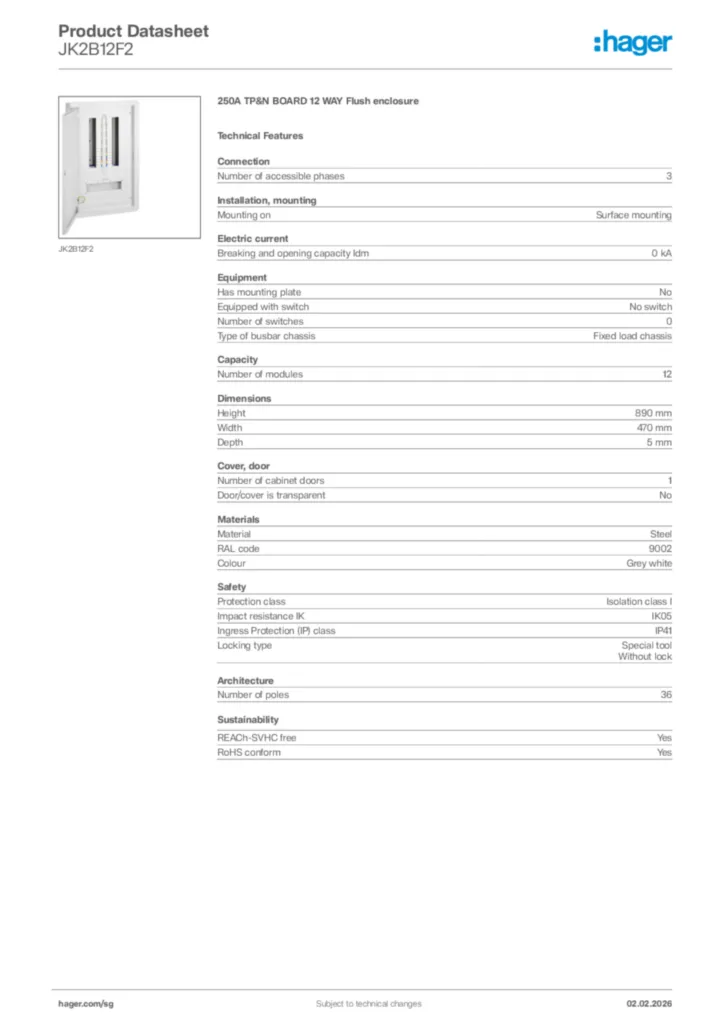

    Image Hager Product data sheet JK2B12F2 | Hager

    Hager Product data sheet JK2B12F2

    250A TP&N BOARD 12 WAY Flush enclosure

    PDF
