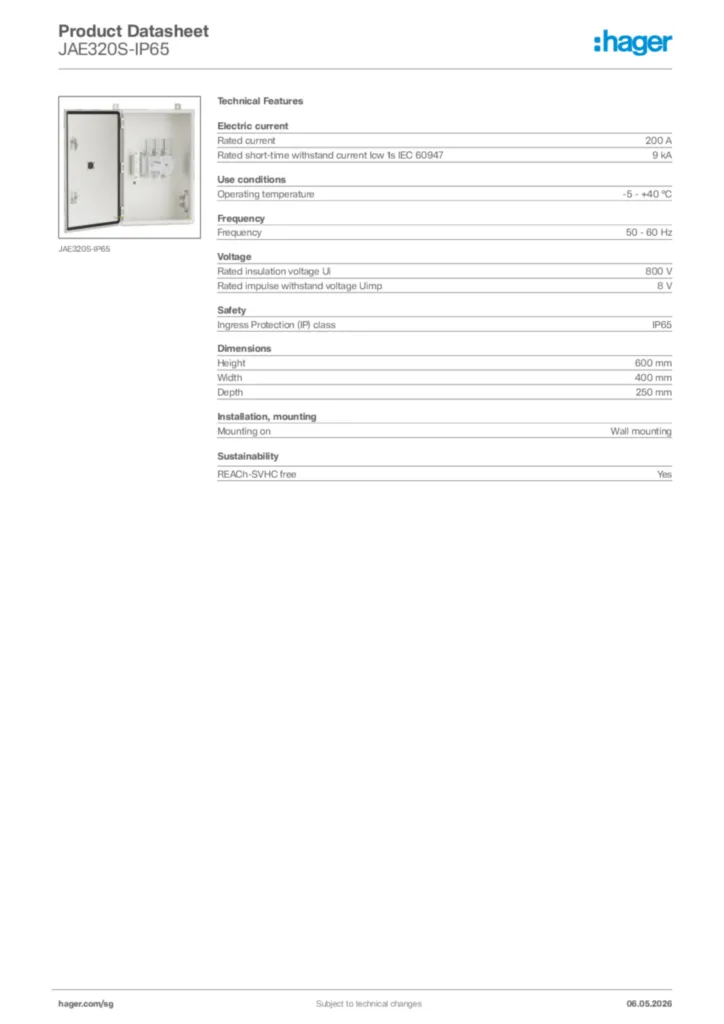

Enclosed LBS,200A,TPN,IP65 JAE320S-IP65
EAN-Nr.
3250616617544
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Electric current
-
Rated current200 A
-
Rated short-time withstand current Icw 1s IEC 609479 kA
Use conditions
-
Operating temperature-5 - +40 °C
Installation, mounting
-
Mounting onWall mounting
Frequency
-
Frequency50-60 Hz
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8 V
Safety
-
Ingress Protection (IP) classIP65
Dimensions
-
Height600 mm
-
Width400 mm
-
Depth250 mm
