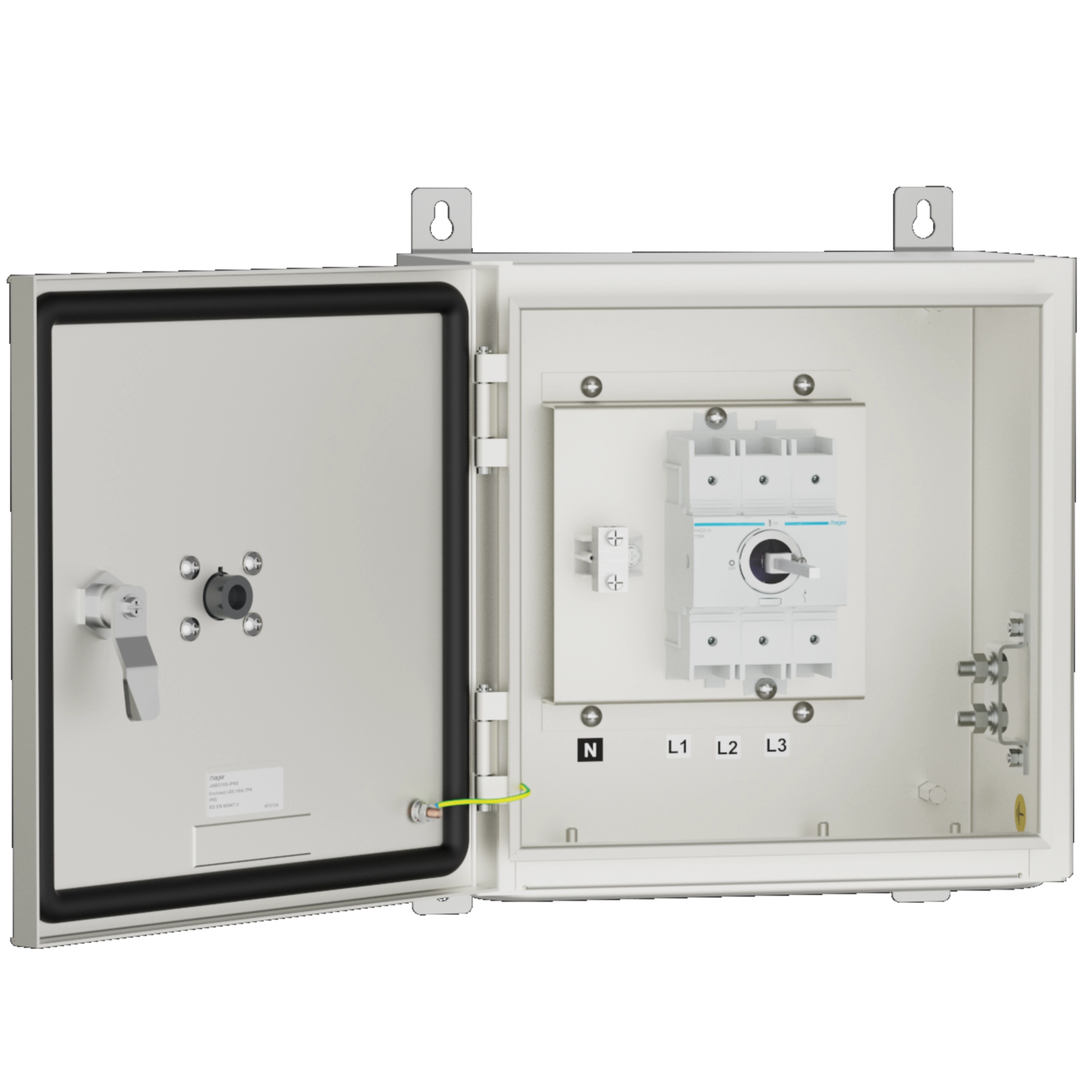

Enclosed LBS,100A,TPN,IP65 JAB310S-IP65
EAN-Nr.
3250616617254
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Electric current
-
Rated current100 A
-
Rated short-time withstand current Icw 1s IEC 609472,75 kA
Installation, mounting
-
Mounting onWall mounting
Frequency
-
Frequency50-60 Hz
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8 V
Safety
-
Ingress Protection (IP) classIP65
Dimensions
-
Height300 mm
-
Width300 mm
-
Depth200 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Instruction manual
Instruction manual en-GB 2024-02-16
PDF8,66 MB -
Brochure
Load Break switch catalogue
Brochure en-GB 2025-08-25
PDF3,98 MB -
Declaration of conformity
EU Declaration of Conformity
Declaration of conformity en-GB 2024-05-13
PDF588,39 kB
