EAN-Nr.

3250613362263

Packaging

1 piece

Automatic transfer switches up to 1600 A

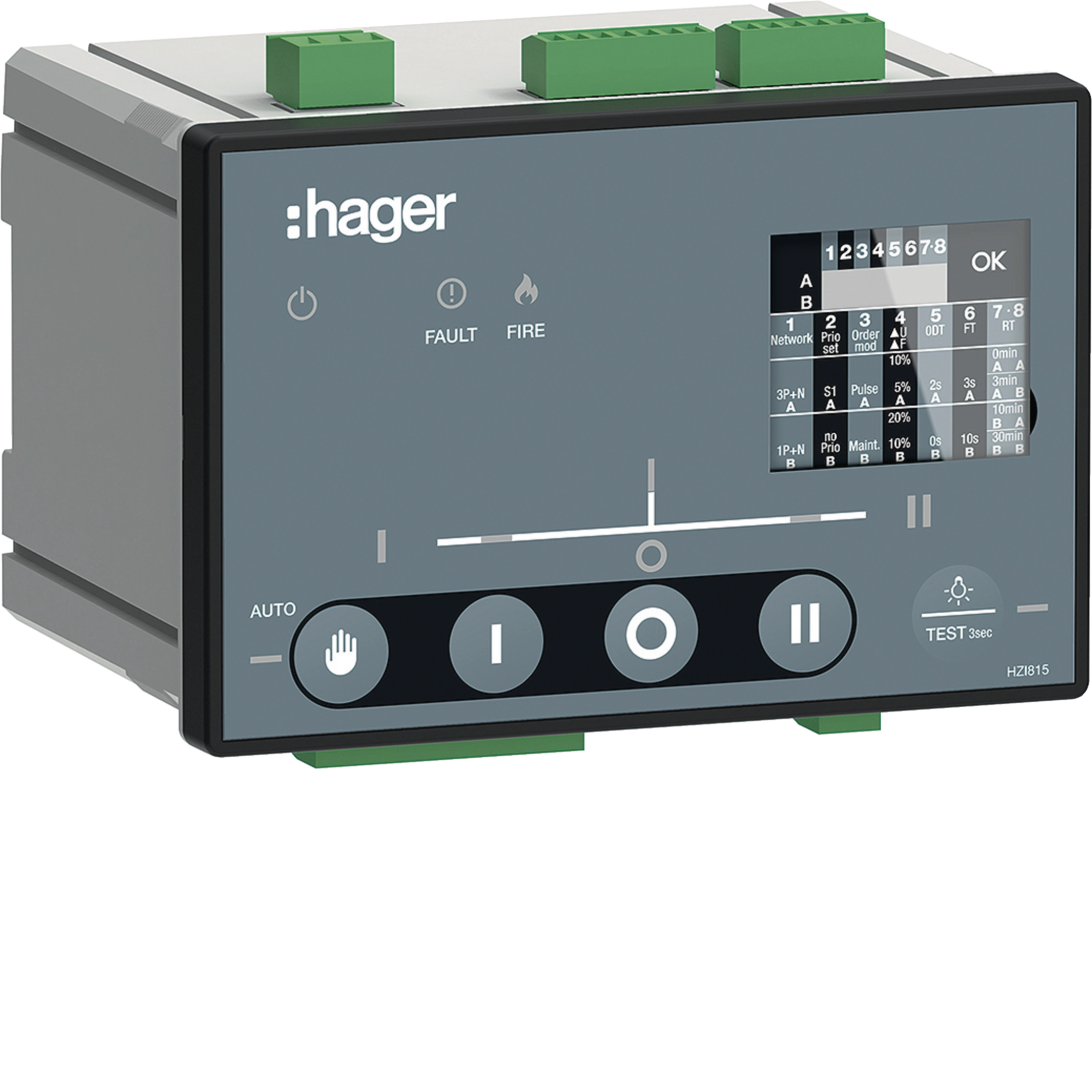

ATS controller for Remotely operated Transfer Switching Equipment (HIB) only HZI815

Technical characteristics
Documentations
More products

Download the sheet

Technical characteristics

Rated operational voltage Ue

240 - 415 V

Cross-section output with rigid conductor

1,5 - 2,5 mm²
Cross-section output with flexible conductor

1,5 - 2,5 mm²
Connection type bus input

Screw terminal
Connection type input

Screw terminal
Output connection type

Screw terminal

Number of outputs

4
Number of inputs

5
Type of display

LCD

Operating temperature

-25 - 70 °C
Storage/transport temperature

-30 - 70 °C

Power absorbed

10 W

Ingress Protection (IP) class

IP4X

Mounting on

DIN rail
Nominal tightening torque of the control and auxiliary contact circuit

0,58 - 0,58 Nm

Downloads

Product Image HZI815
Product datasheet

Hager Product data sheet HZI815

ATS controller for Remotely operated Transfer Switching Equipment (HIB) only

PDF
Operating manual

Operating manual International 2021-09-24

PDF

5,55 MB
Installation manual

ID1_HZI815-HZI825_6LE007316Ab_EN_web.pdf

Installation manual International 2021-02-03

PDF

1,84 MB
Declaration of conformity

Declaration

Declaration of conformity International 2022-04-13

PDF

573,94 kB

EU Declaration of Conformity

Declaration of conformity en-GB 2024-12-04

PDF

639,40 kB
