Automatic motorized changeover switch 4P 40A HIC404R
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Voltage
-
Rated operational voltage Ue380 - 415 V
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp6000 V
Electric current
-
Rated current40 A
-
Rated short-time withstand current Icw IEC 609473,50 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses50 kA
Power
-
Rated operational power under 400 V AC AC126000 W
Architecture
-
Number of poles4
-
Type of pole4P
Controls and indicators
-
Motor drive integratedYes
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Frequency
-
Frequency50 - 60 Hz
Downloads
-
Product datasheet

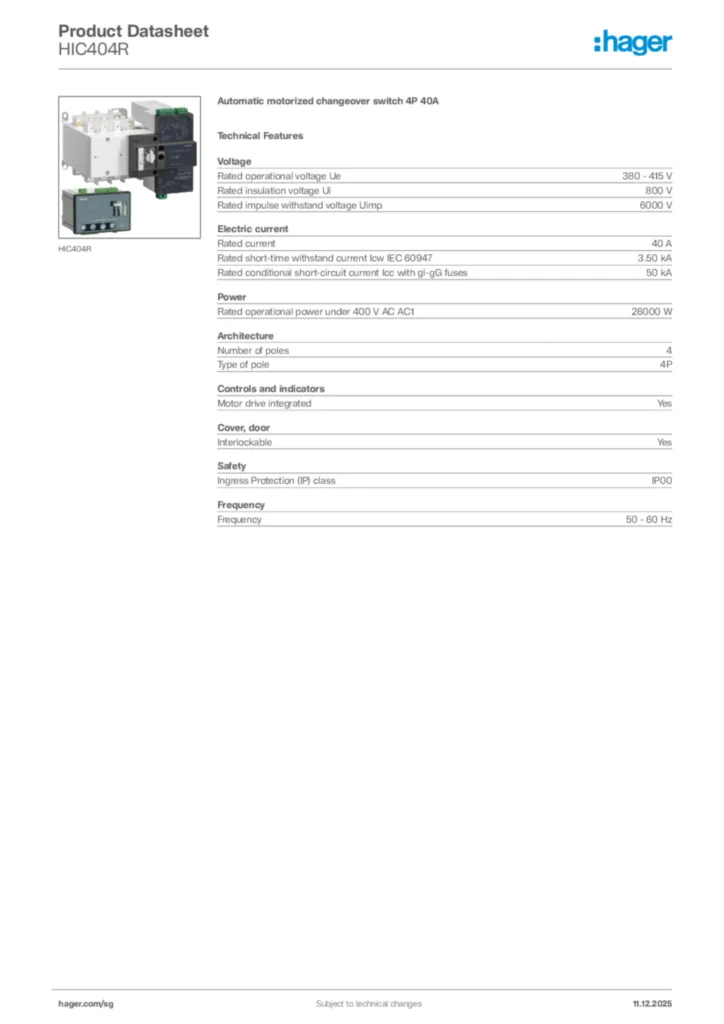

Hager Product data sheet HIC404R
Automatic motorized changeover switch 4P 40A
PDF -
Operating manual
Operating manual International 2021-09-24
PDF5,55 MB -
Installation manual
ID1_HZI815-HZI825_6LE007316Ab_EN_web.pdf
Installation manual International 2021-02-03
PDF1,84 MB
Manual for HIC4xxR - Automatic transfer switching equipment (EN, 2020-03)
Installation manual International 2020-05-15
PDF3,40 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-04-13
PDF573,94 kB
EU Declaration of Conformity
Declaration of conformity en-GB 2024-12-04
PDF639,40 kB
More documentation
