RCCB auto reclos 3P+N 63A 30mA A 7M PRO • CDA463SP | Hager
Location Singapore

  • Better buildings. Better tomorrows.

    • Menu
    Account
    EAN-Nr.
    3250611653158
    Packaging
    1 piece

    RCCB auto reclosing 3P+N 63A 30mA A 7M PRO CDA463SP

    Complete your system

    Optional accessories

    • Mech­anic accessories for low-­voltage compon­ents 1 products available

    Technical characteristics

    Archi­tec­ture
    • Type of pole
      3P+N
    Elec­tric current
    • Rated current
      63 A
    • Rated residual oper­ating current Idn
      30 mA
    • Breaking and opening capa­city Idm
      0,63 kA
    • Rated condi­tional short-­cir­cuit current Inc according to EN61008-1
      6 kA
    • Rated current -25°C
      63 A
    • Rated current at -20°C
      63 A
    • Rated current -15°C
      63 A
    • Rated current -10°C
      63 A
    • Rated current -5°C
      63 A
    • Rated current at 0°C
      63 A
    • Rated current 5°C
      63 A
    • Rated current 10°C
      63 A
    • Rated current 15°C
      63 A
    • Rated current at 20°C
      63 A
    • Rated current 25°C
      63 A
    • Rated current 30°C
      63 A
    • Rated current 35°C
      63 A
    • Rated current at 40°C
      63 A
    Install­a­tion, mounting
    • Nominal tight­ening torque top terminal
      3 - 3 Nm
    • Nominal tight­ening torque down terminal
      3 - 3 Nm
    • Type of top connec­tion for modular devices
      Screw terminal
    • Type of bottom connec­tion for modular devices
      Screw terminal
    • Nominal tight­ening torque
      3 - 3 Nm
    Voltage
    • Rated oper­a­tional voltage Ue
      400 - 400 V
    • Type voltage supply
      AC
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    • Max. oper­ating voltage
      440 V
    Frequency
    • Frequency
      50 - 50 Hz
    Capa­city
    • Number of modules
      7
    Compat­ib­ility
    • Suit­able for DIN Rail
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Connec­tion
    • Cross-sec­tion of input and output with screws, for massive conductors
      1,5 - 35,0 mm²
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1,5 - 35,0 mm²
    Power
    • Total power loss under IN
      12 W
    Use condi­tions
    • Air humidity protec­tion
      95%/55°C
    • Max. Alti­tude
      2000 m
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      1000
    • Number of mech­an­ical oper­a­tions
      4000
    Connectivity
    • Type of connec­tion
      Screw terminal
    Dimen­sions
    • Height
      106 mm
    • Width
      125 mm
    • Depth
      74 mm

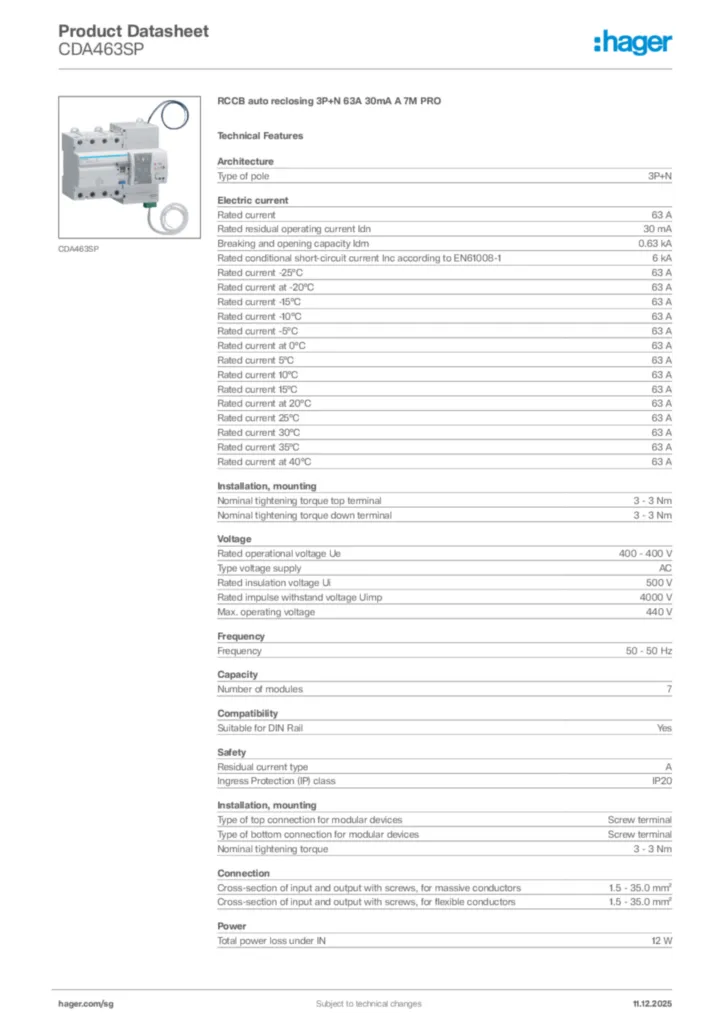

    Downloads
