Surge Protection Device 4P T2 TNS/TT Uc 275V In 20kA Imax 40kA SPB440D
EAN
3250615515582
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surge protection device for power supply systems 2 products available
Technical properties
Capacity
-
Number of modules4
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Continuous operating voltage Uc according to IEC 61643-1275 V
-
Voltage protection level Up according to IEC 61643-11,35 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111,50 kV
-
Voltage level Up L-N/PEN IEC 61643-111350 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164320 kA
-
Max. overcurrent protection device, parallel connection (fuse)125 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE40 kA
Dimensions
-
Height89,80 mm
-
Width71 mm
-
Depth65,7 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN-S, TT
Equipment
-
With remote signalling contactNo
Connection
-
Cross-section of input and output with screws, for flexible conductors1,5 - 25,0 mm²
-
Cross-section of input and output with screws, for massive conductors1,5 - 35,0 mm²
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-

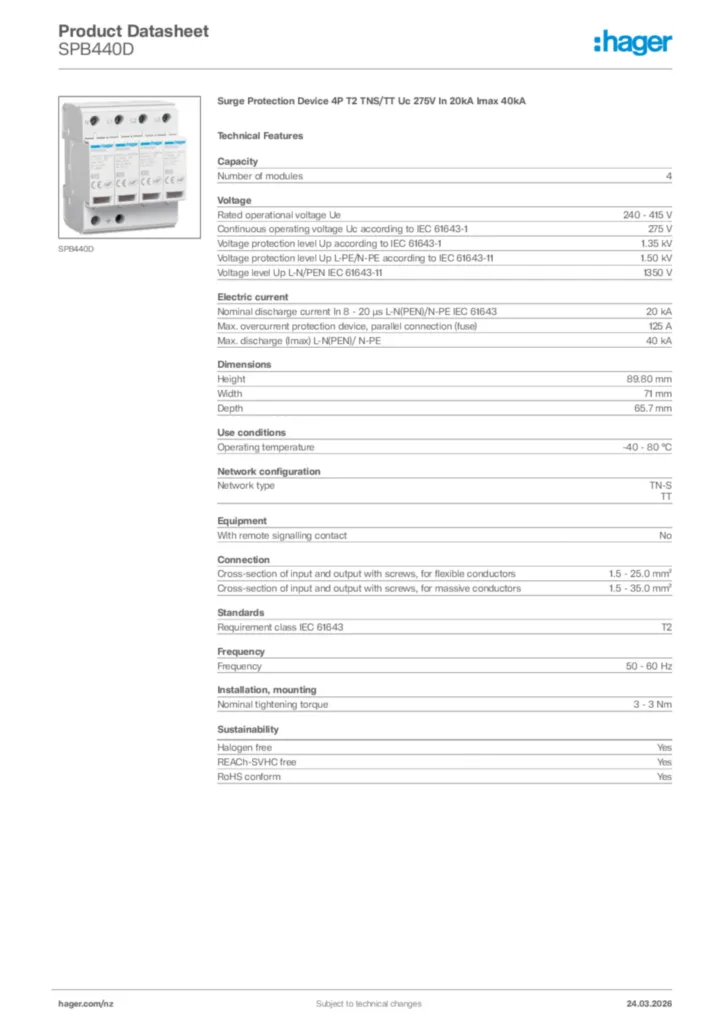

Product image
-
