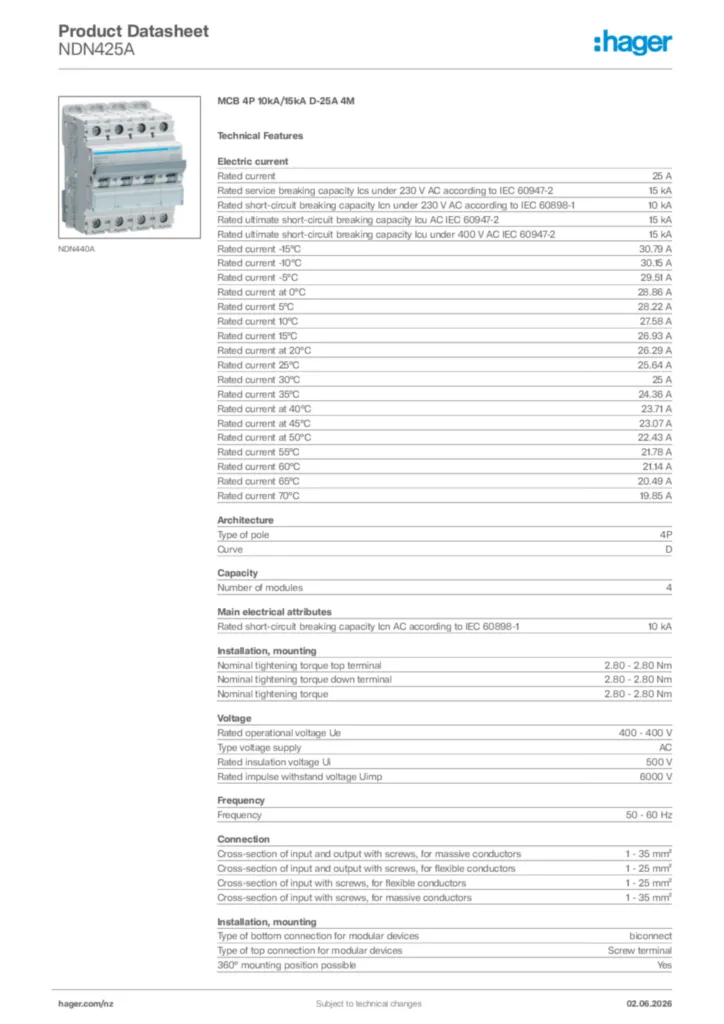

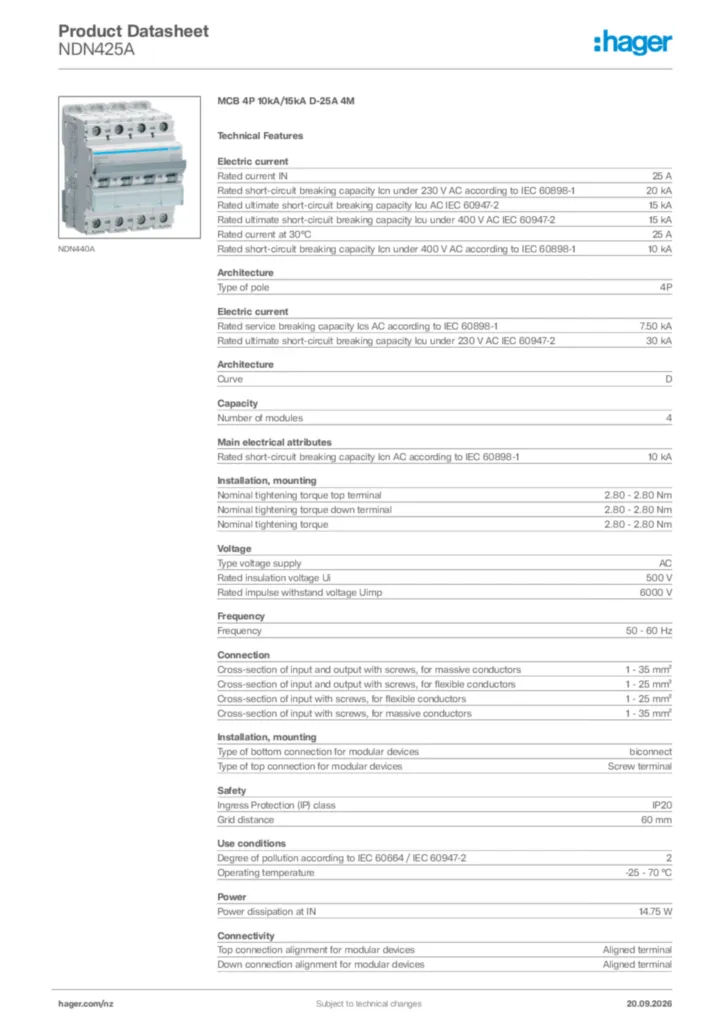

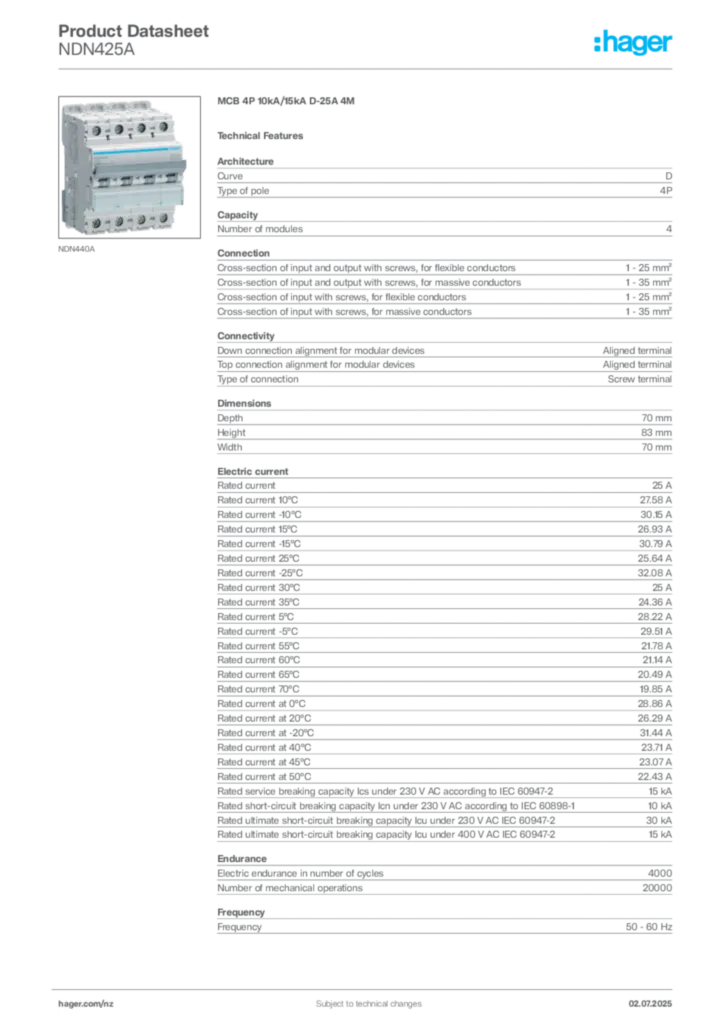

MCB 4P 10kA/15kA D-25A 4M NDN425A
EAN
3250614619410
Packaging
3
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Phase separation functions 1 products available -
Locking interlocking functions 1 products available -
See more 1 other products available
Complete your system
Technical properties
Electric current
-
Rated current25 A
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-215 kA
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
-
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-230 kA
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-215 kA
-
Rated current -25°C32,08 A
-
Rated current at -20°C31,44 A
-
Rated current -15°C30,79 A
-
Rated current -10°C30,15 A
-
Rated current -5°C29,51 A
-
Rated current at 0°C28,86 A
-
Rated current 5°C28,22 A
-
Rated current 10°C27,58 A
-
Rated current 15°C26,93 A
-
Rated current at 20°C26,29 A
-
Rated current 25°C25,64 A
-
Rated current 30°C25 A
-
Rated current 35°C24,36 A
-
Rated current at 40°C23,71 A
-
Rated current at 45°C23,07 A
-
Rated current at 50°C22,43 A
-
Rated current 55°C21,78 A
-
Rated current 60°C21,14 A
-
Rated current 65°C20,49 A
-
Rated current 70°C19,85 A
Architecture
-
Type of pole4P
-
CurveD
Capacity
-
Number of modules4
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
-
Nominal tightening torque top terminal2,80 - 2,80 Nm
-
Nominal tightening torque down terminal2,80 - 2,80 Nm
Voltage
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Installation, mounting
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
360° mounting position possibleYes
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN14,75 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Connectivity
-
Type of connectionScrew terminal
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width70 mm
-
Depth70 mm
