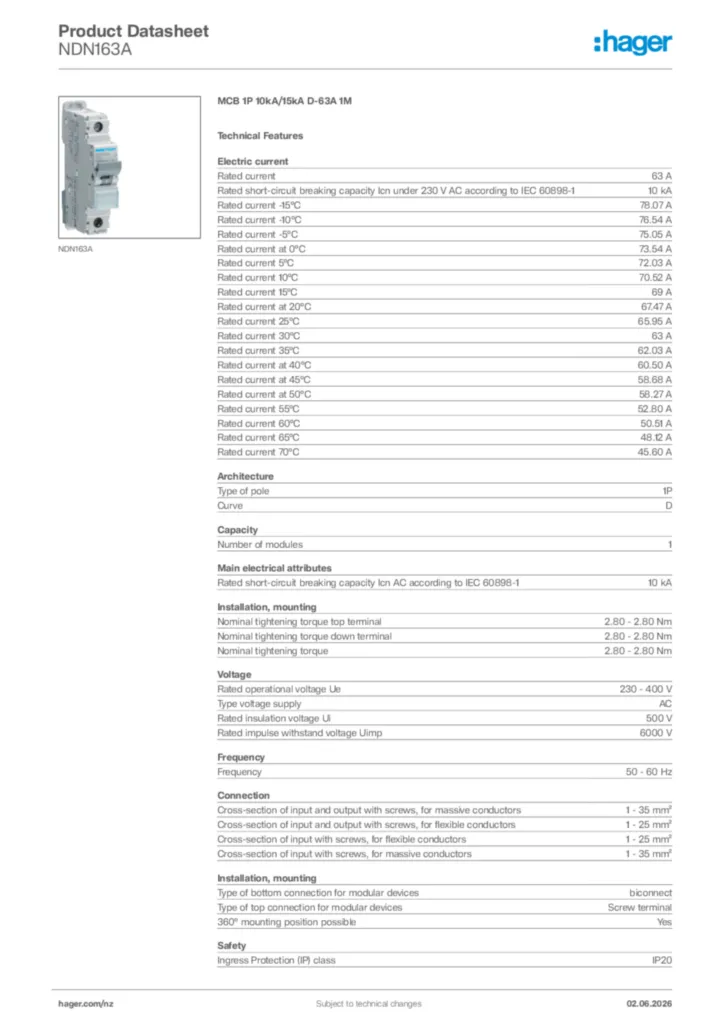

MCB 1P 10kA/15kA D-63A 1M NDN163A
EAN
3250614619007
Packaging
12
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries contact block 2 products available -
Shunt release 2 products available -
Under voltage coil 1 products available -
Locking interlocking functions 1 products available -
Terminal cover 1 products available
Complete your system
Technical properties
Electric current
-
Rated current63 A
-
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-110 kA
-
Rated current -25°C81,04 A
-
Rated current at -20°C79,57 A
-
Rated current -15°C78,07 A
-
Rated current -10°C76,54 A
-
Rated current -5°C75,05 A
-
Rated current at 0°C73,54 A
-
Rated current 5°C72,03 A
-
Rated current 10°C70,52 A
-
Rated current 15°C69 A
-
Rated current at 20°C67,47 A
-
Rated current 25°C65,95 A
-
Rated current 30°C63 A
-
Rated current 35°C62,03 A
-
Rated current at 40°C60,50 A
-
Rated current at 45°C58,68 A
-
Rated current at 50°C58,27 A
-
Rated current 55°C52,80 A
-
Rated current 60°C50,51 A
-
Rated current 65°C48,12 A
-
Rated current 70°C45,60 A
Architecture
-
Type of pole1P
-
CurveD
Capacity
-
Number of modules1
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
-
Nominal tightening torque top terminal2,80 - 2,80 Nm
-
Nominal tightening torque down terminal2,80 - 2,80 Nm
Voltage
-
Rated operational voltage Ue230 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
Installation, mounting
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Operating temperature-25 - 70 °C
Power
-
Total power loss under IN5,73 W
Endurance
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
Connectivity
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
Dimensions
-
Height83 mm
-
Width17,50 mm
-
Depth70 mm
