RCCB 2 pole 30mA

RCCB 1P+N 40A 30mA F CDF540T

EAN

3250611626541

Packaging

1 Piece

Technical properties
Documentations
Accessories

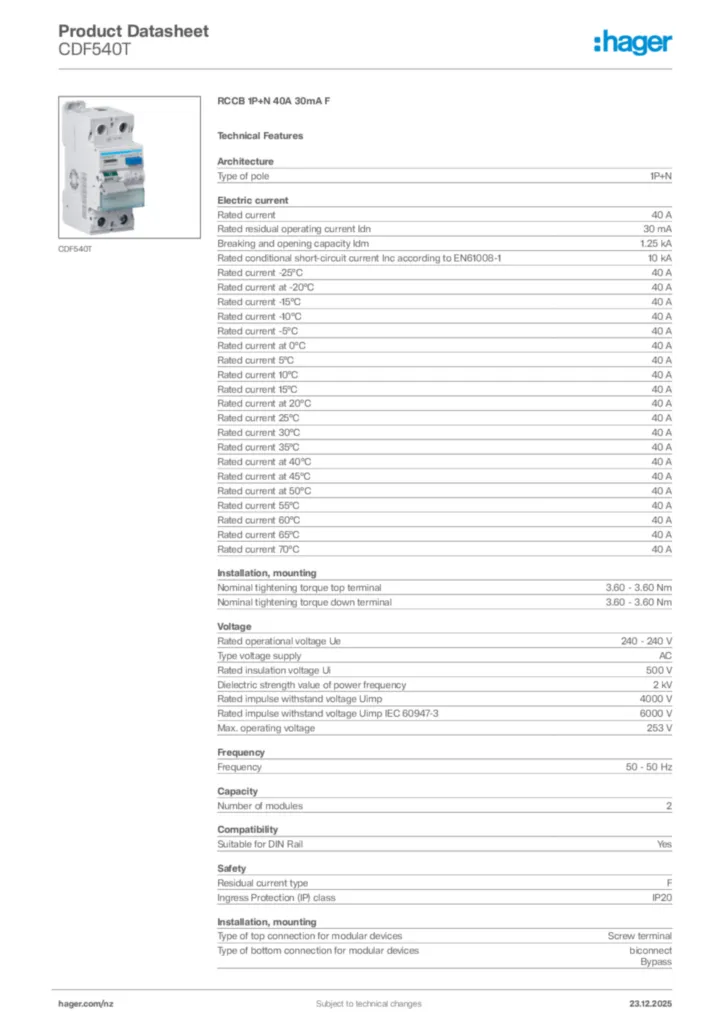

Download the data sheet

Technical properties

Neutral position

right
Number of poles

2 P
Type of pole

1P+N

Number of modules

2

Top connection alignement for modular devices

Aligned terminal
Bottom connection alignement for modular devices

Aligned terminal

Rated operational voltage Ue

230 V - 240 V
Type of supply voltage

AC
Frequency

50 Hz

Rated insulation voltage

500 V
Max operating voltage

253 V
Rated impulse withstand voltage

4000 V

Rated residual operating current

30 mA
Rated current

40 A
Withstand not tripping on 8-20 μs wave

5 kA
Breaking and opening capacity

1250 A
Rated conditional short-circuit current Inc according to EN 61008-1

10 kA

Rating current -25°C

40 A
Rating current -20°C

40 A
Rating current -15°C

40 A
Rating current -10°C

40 A
Rating current -5°C

40 A
Rating current 0°C

40 A
Rating current 5°C

40 A
Rating current 10°C

40 A
Rating current 15°C

40 A
Rating current 20°C

40 A
Rating current 25°C

40 A
Rating current 30°C

40 A
Rating current 35°C

40 A
Rating current 40°C

40 A
Rating current 45°C

40 A
Rating current 50°C

40 A
Rating current 55°C

40 A
Rating current 60°C

40 A
Rating current 65°C

40 A
Rating current 70°C

40 A

Depth of installed product

70 mm
Height of installed product

85 mm
Width of installed product

36 mm
Construction size (DIN 43880)

1

Frequency

50 Hz

Total power loss under IN

3.31 W

Short-time delayed tripping

Yes

Operating voltage for test button circuit

195…265 V

Electric endurance in number of cycles

10000
Number of mechanical operations

20000

Type of top connection for modular devices

with screw
Type of top rail clip for modular devices

Plastic
Type of bottom rail clip for modular devices

metallic
Type of Bottom Connection for modular devices

BIconnect + bypass
Top removability for modular devices

Yes
Bottom removability for modular devices

No

Connection cross-section at output with screw, for flexible conductor

1 / 16 mm²
Connection cross-section at output with screw, for massive conductor

1 / 25 mm²
Connection cross-section for rigid conductor, upstream terminals with screws

1 / 25 mm²
Connection cross-section of the access with screws, with flexible conductor

1 / 16 mm²

Quick connect

no
Type selective

No
Can be accessorized

Yes
With transparent product label holder

Yes

Standard text

IEC 61008-1 ; IEC 62423 ; AS/NZS 61008-1
European directive WEEE

not concerned

Residual current type

F

Operating temperature

-25…70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Altitude

2000 m
Storage/transport temperature

-55…70 °C
