RCCB 2 Pole 30mA

RCCB 2P 63A 30mA A Class CDA263T

EAN

3250611615460

Packaging

1 Piece

Technical properties
Documentations
Accessories
More products

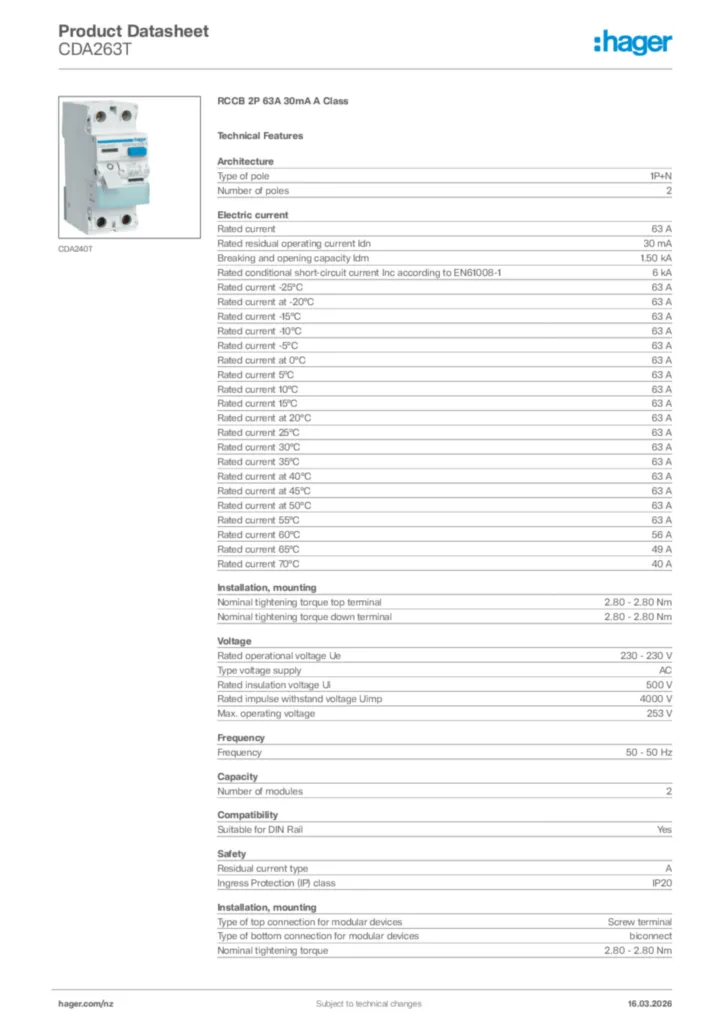

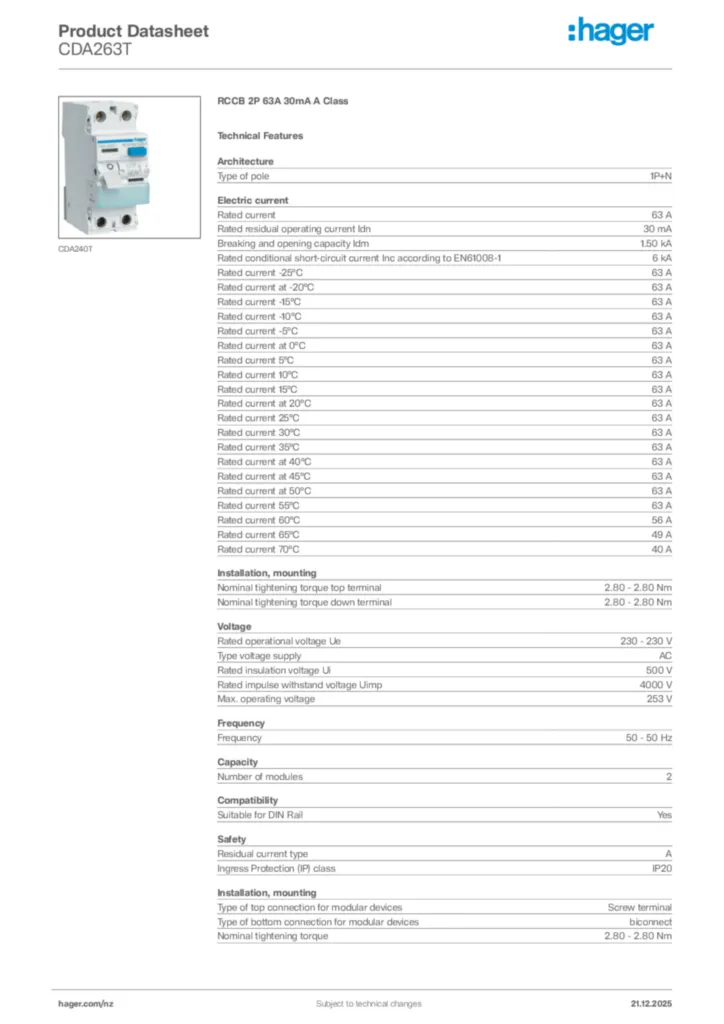

Download the data sheet

Technical properties

Neutral position

right
Number of poles

2 P
Type of pole

1P+N

Number of modules

2

Rated operational voltage Ue

230/400 V
Type of supply voltage

AC
Frequency

50 Hz

Rated insulation voltage

500 V
Max operating voltage

253 V
Rated impulse withstand voltage

4000 V

Rated residual operating current

30 mA
Rated current

63 A
Withstand not tripping on 8-20 μs wave

0.25 kA
Breaking and opening capacity

1.5 kA
Rated conditional short-circuit current Inc according to EN 61008-1

6 kA

Rating current -25°C

63 A
Rating current -20°C

63 A
Rating current -15°C

63 A
Rating current -10°C

63 A
Rating current -5°C

63 A
Rating current 0°C

63 A
Rating current 5°C

63 A
Rating current 10°C

63 A
Rating current 15°C

63 A
Rating current 20°C

63 A
Rating current 25°C

63 A
Rating current 30°C

63 A
Rating current 35°C

63 A
Rating current 40°C

63 A
Rating current 45°C

63 A
Rating current 50°C

63 A
Rating current 55°C

63 A
Rating current 60°C

56 A
Rating current 65°C

49 A
Rating current 70°C

40 A

Depth of installed product

70 mm
Height of installed product

83 mm
Width of installed product

35 mm
Construction size (DIN 43880)

1

Frequency

50 Hz

Total power loss under IN

8.1 W

Short-time delayed tripping

No

Electric endurance in number of cycles

2000
Number of mechanical operations

4000

Tightening torque

2,8Nm
Type of top rail clip for modular devices

NA
Type of bottom rail clip for modular devices

plastic

Connection cross-sect. flexible conductor

16mm²
Connection cross-sect. rigid cable

25mm²
Type of connection

with screw

Type selective

No

Standard text

IEC 61008-1 ; AS/NZS 61008-1

Residual current type

A
REACH conform

No
RoHS conform

Yes
Halogen free

No

Operating temperature

-25…40 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Altitude

2000 m
Storage/transport temperature

-55…70 °C
