Output 6 -fold 16A C-Load adapted with current monitoring TYA606E
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Connectivity
-
With bus system KNXYes
-
With bus system KNX radioNo
Settings
-
Supported configuration modeETS
Dimensions
-
Number of width units6
Materials
-
ColourLight grey
Equipment
-
Radio frequency bidirectionalNo
-
With switch for manual switchYes
Electric current
-
Rated current16 A
-
Bus current consumption while idle5 mA
Frequency
-
Frequency50 - 60 Hz
Power
-
Power incandescent lamp 230 V2300 - 2300 W
-
Output power2300 W
-
230 V incandescent and halogen lamp2300 W
Voltage
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage30 V DC Via bus
-
Operating voltage over bus21 - 32 V
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-5 - 45 °C
Connection
-
Cross-section rigid conductor0.75 - 2.5 mm²
-
Cross-section flexible conductor0.75 - 2.5 mm²
Texts
-
FunctionWith operating hours meter
-
Type of connectionWith plug-in terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

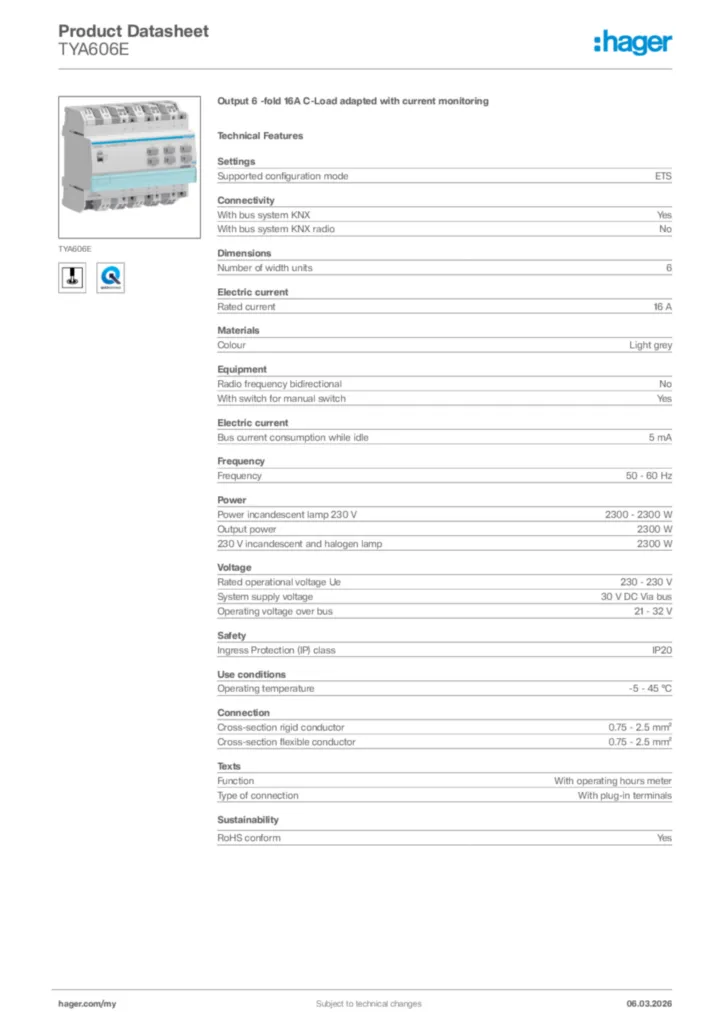

Product datasheet
Hager Product data sheet TYA606E
Output 6 -fold 16A C-Load adapted with current monitoring
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-03-04
PDF137,59 kB
More documentation
