Presence detector 360° monobloc KNX / DALI TCC521E
EAN-Nr.
3250617579414
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for movement sensor 1 products available
Technical characteristics
Dimensions
-
Installation height4 - 4 m
-
Recommended installation height2,5 - 3,5 m
Settings
-
Supported configuration modeETS
-
Minimal duty cycle60 s
Functions
-
Maximal duty cycle60 min
Connectivity
-
With bus system KNX radioNo
Voltage
-
Operating voltage over bus21 - 32 V
Scope of delivery
-
Bus connection includedYes
Electric current
-
Bus current consumption data transfer12 mA
Detection
-
Detection angle360 - 360
-
Detection angle horizontal360 - 360
Use conditions
-
Operating temperature-10 - 45 °C
Materials
-
MaterialAcrylonitrile-Butadiene-Styrene (ABS), Polycarbonate (PC)
Texts
-
FunctionLinking several detectors in order to expand the detection area
-
Installation modeWith spring clips for ceiling installation
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

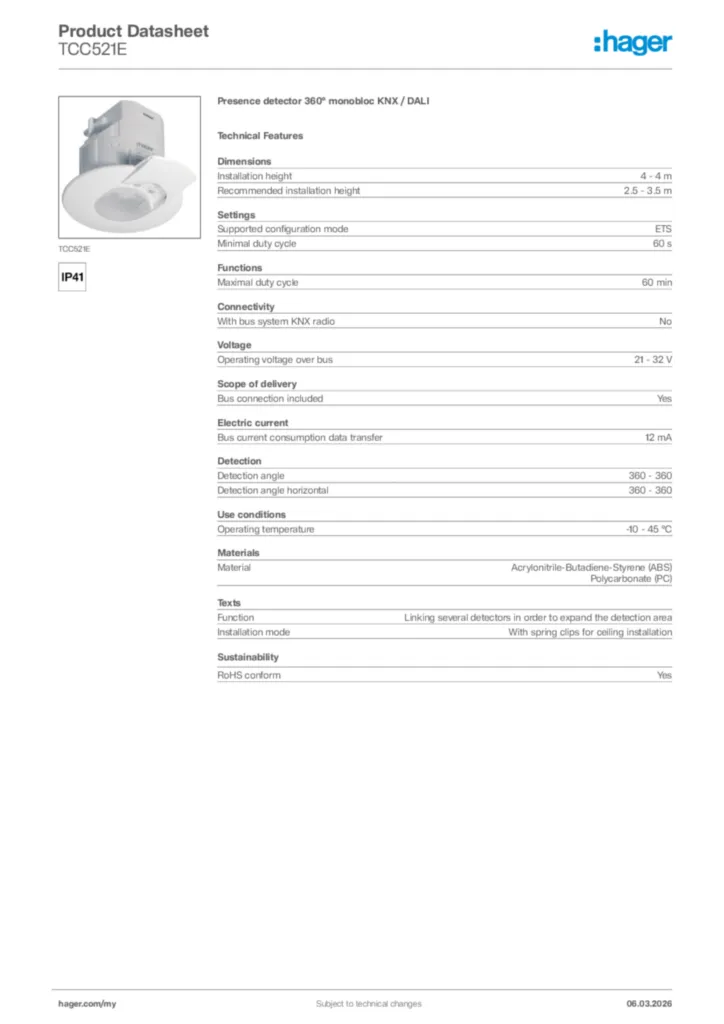

Certifications and documents
Downloads
-
Declaration of conformity
Declaration of conformity International 2023-03-02
PDF331,47 kB
More documentation
