Modular devices

MCB 3P 10kA/15kA D-16A 3M NDN316A

EAN-Nr.

3250614619243

Packaging

4 Pieces

Accessories
Technical characteristics
Documentations
More products

Complete your system

Locking interlocking functions 1 products available
Under voltage coil 2 products available
Shunt release 2 products available
Modular phase busbar 2 products available
Auxiliaries contact block 2 products available
AOB type A 1 products available

Technical characteristics

Rated current

16 A
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

15 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

10 kA
Rated ultimate short-circuit breaking capacity Icu under 230 V AC IEC 60947-2

30 kA
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

15 kA
Rated current -25°C

20,27 A
Rated current at -20°C

19,92 A
Rated current -15°C

19,56 A
Rated current -10°C

19,20 A
Rated current -5°C

18,83 A
Rated current at 0°C

18,45 A
Rated current 5°C

18,07 A
Rated current 10°C

17,67 A
Rated current 15°C

17,27 A
Rated current at 20°C

16,86 A
Rated current 25°C

16,43 A
Rated current 30°C

16 A
Rated current 35°C

15,48 A
Rated current at 40°C

14,94 A
Rated current at 45°C

14,38 A
Rated current at 50°C

13,80 A
Rated current 55°C

13,19 A
Rated current 60°C

12,56 A
Rated current 65°C

11,89 A
Rated current 70°C

11,18 A

Type of pole

3P
Curve

D

Number of modules

3

Nominal tightening torque top terminal

2,80 - 2,80 Nm
Nominal tightening torque down terminal

2,80 - 2,80 Nm
Nominal tightening torque

2,80 - 2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

10 kA

Rated operational voltage Ue

400 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Operating temperature

-25 - 70 °C

Total power loss under IN

8,27 W

Electric endurance in number of cycles

4000
Number of mechanical operations

20000

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

83 mm
Width

52,50 mm
Depth

70 mm

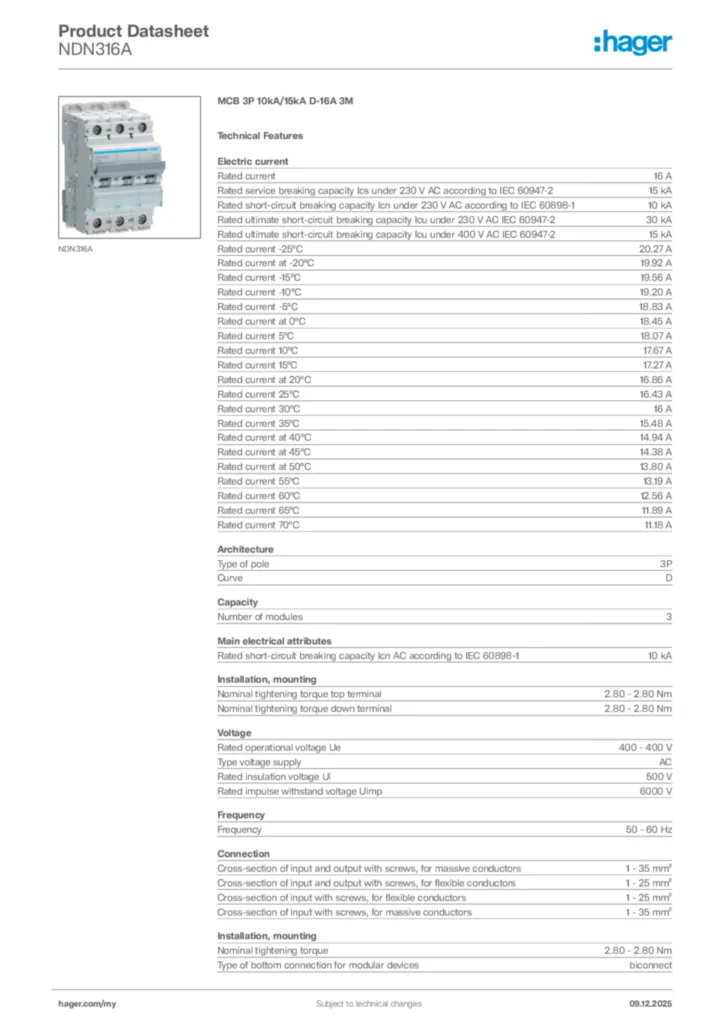

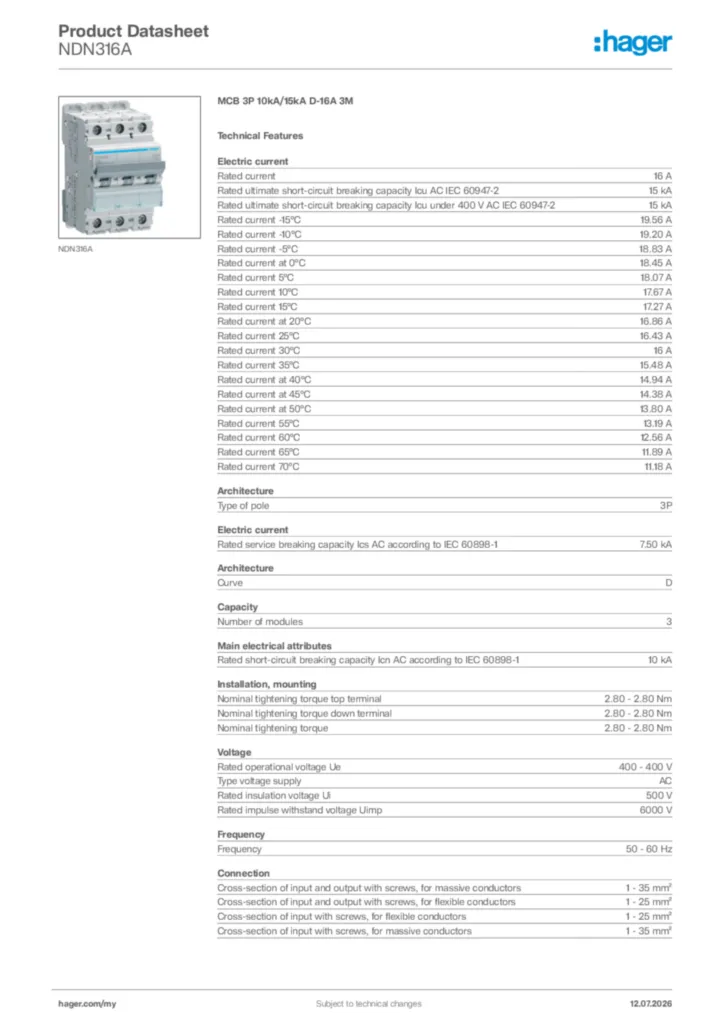

Downloads
