Shunt trip 24-48V AC 12-48V DC MZ204
EAN-Nr.
3250614562044
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 211 products available
Referenced by
-
NB320AMCB 3P 10kA B-20A 3M
-
NB210AMCB 2P 10kA B-10A 2M
-
NB216A
MCB 2P 10kA B-16A 2M
-
NB220AMCB 2P 10kA B-20A 2M
-
NB225A
MCB 2P 10kA B-25A 2M
-

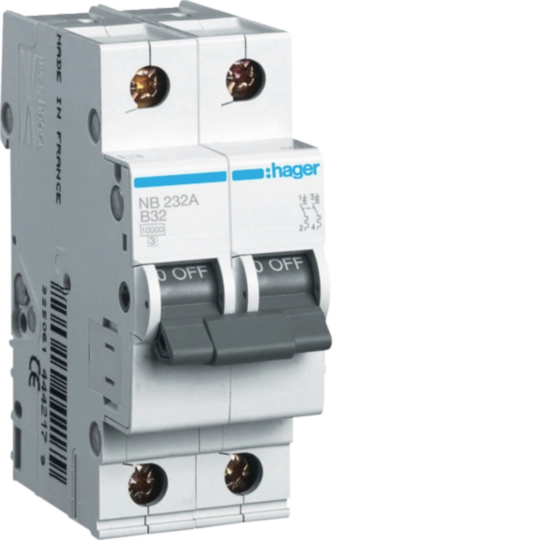

NB232AMCB 2P 10kA B-32A 2M
-
NB240AMCB 2P 10kA B-40A 2M
-
NB250AMCB 2P 10kA B-50A 2M
-
NB263AMCB 2P 10kA B-63A 2M
-

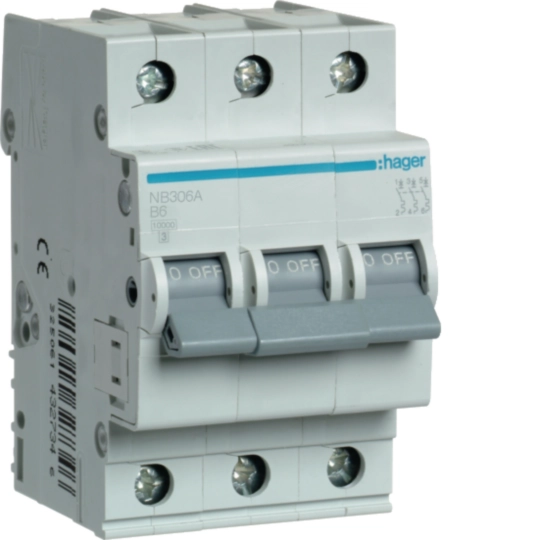

NB306A
MCB 3P 10kA B-6A 3M
-
NB310A
MCB 3P 10kA B-10A 3M
-
NB316A
MCB 3P 10kA B-16A 3M
-
NB410A
MCB 4P 10kA B-10A 4M
-
NB463AMCB 4P 10kA B-63A 4M
-
NB440A
MCB 4P 10kA B-40A 4M
-
NB432AMCB 4P 10kA B-32A 4M
-

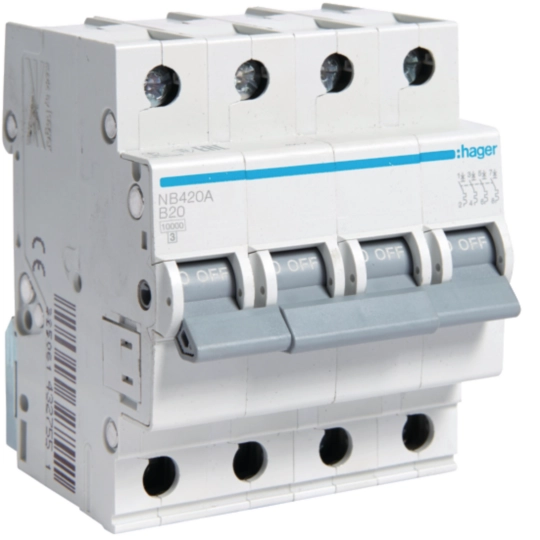

NB420A
MCB 4P 10kA B-20A 4M
-
NB416A
MCB 4P 10kA B-16A 4M
-
NB350AMCB 3P 10kA B-50A 3M
-
NB332AMCB 3P 10kA B-32A 3M
Technical characteristics
Power
-
Inrush power absorbed27 VA
Use conditions
-
Operating temperature-25 - 60 °C
Voltage
-
Command voltage AC24 - 48 V
-
Command voltage DC12 - 48 V
-
Type voltage supplyAC/DC
-
Rated insulation voltage Ui4000 V
-
Rated operational voltage Ue24 - 48 V
-
Rated operational voltage in DC12 - 48 V
Dimensions
-
Height83 mm
-
Width18 mm
-
Depth68 mm
Capacity
-
Number of modules1
