Shunt trip 230-415V AC 110-130V DC MZ203
EAN-Nr.
3250614562037
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 219 products available
Referenced by
-
NB310AMCB 3P 10kA B-10A 3M
-

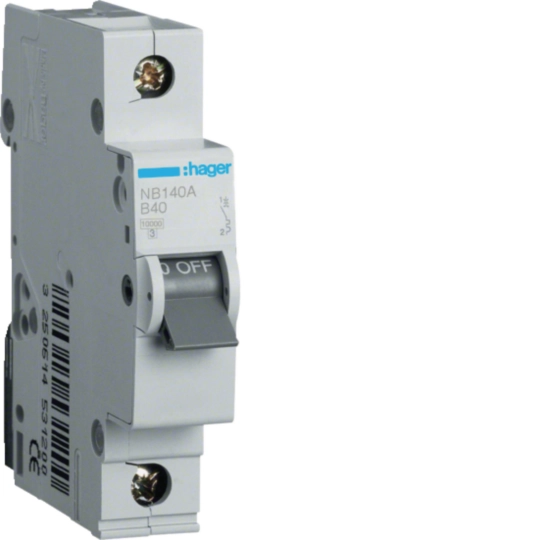

NB140A
MCB 1P 10kA B-40A 1M
-
NB163AMCB 1P 10kA B-63A 1M
-
NB206A
MCB 2P 10kA B-6A 2M
-
NB210A
MCB 2P 10kA B-10A 2M
-
NB216A
MCB 2P 10kA B-16A 2M
-
NB220AMCB 2P 10kA B-20A 2M
-
NB225A
MCB 2P 10kA B-25A 2M
-
NB232AMCB 2P 10kA B-32A 2M
-
NB240AMCB 2P 10kA B-40A 2M
-
NB250AMCB 2P 10kA B-50A 2M
-
NB263AMCB 2P 10kA B-63A 2M
-
NB306A
MCB 3P 10kA B-6A 3M
-

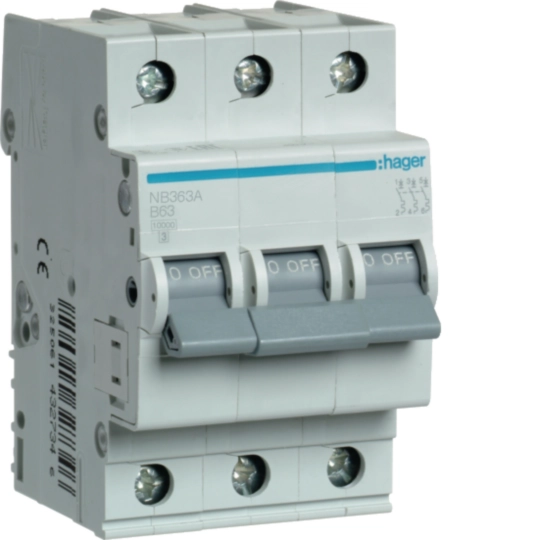

NB363A
MCB 3P 10kA B-63A 3M
-
NB432AMCB 4P 10kA B-32A 4M
-
NB420A
MCB 4P 10kA B-20A 4M
-
NB416A
MCB 4P 10kA B-16A 4M
-
NB410A
MCB 4P 10kA B-10A 4M
-
NB406A
MCB 4P 10kA B-6A 4M
-
NB332AMCB 3P 10kA B-32A 3M
Technical characteristics
Power
-
Inrush power absorbed15 VA
Use conditions
-
Operating temperature-25 - 60 °C
Voltage
-
Command voltage AC230 - 415 V
-
Command voltage DC110 - 130 V
-
Type voltage supplyAC/DC
-
Rated insulation voltage Ui4000 V
-
Rated operational voltage Ue230 - 415 V
-
Rated operational voltage in DC110 - 130 V
Dimensions
-
Height83 mm
-
Width18 mm
-
Depth68 mm
Capacity
-
Number of modules1
