IP66 63A 3P SW NEUTRAL UTILITY ISOLATOR JG463U
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles4
-
Type of pole3P+N
Electric current
-
Rated current63 A
-
Acceptable current rating AC21 category A63 A
-
Acceptable current rating AC22 category A63 A
Voltage
-
Rated operational voltage Ue380 - 440 V
-
Rated insulation voltage Ui440 V
Installation, mounting
-
Nominal tightening torque2,50 - 2,50 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor10 - 16 mm²
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

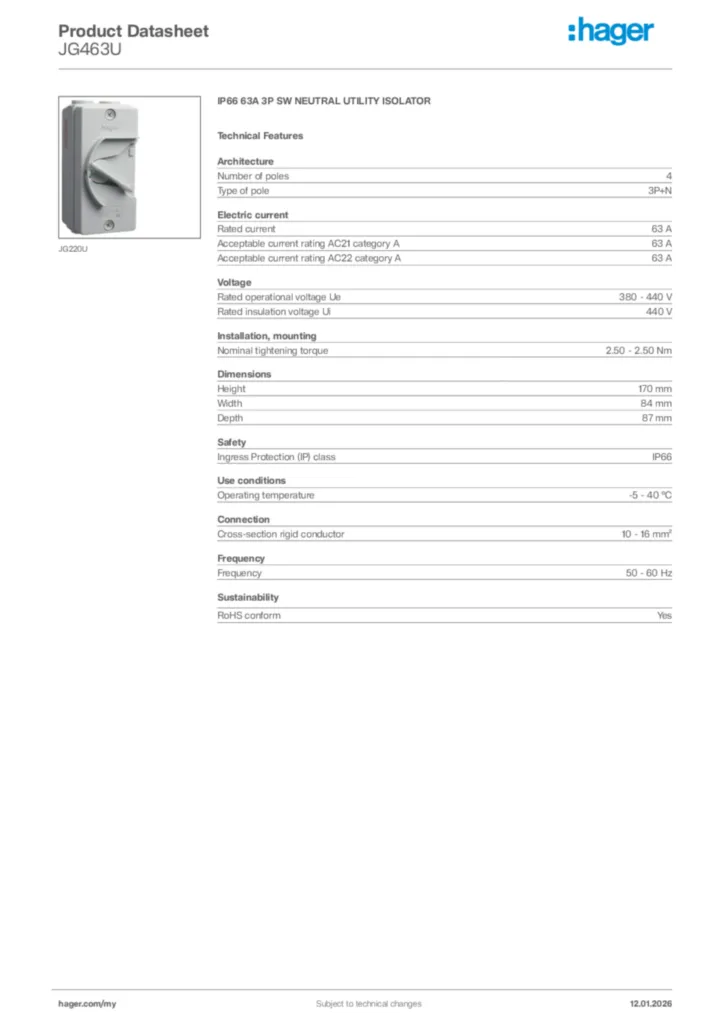

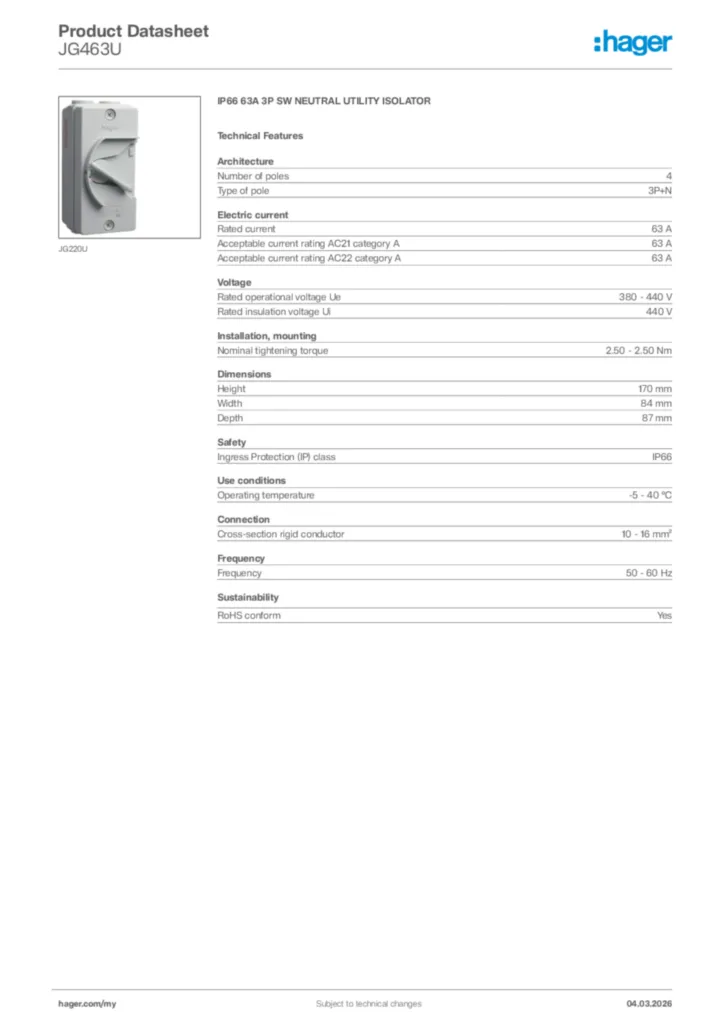

Product datasheet
Hager Product data sheet JG463U
IP66 63A 3P SW NEUTRAL UTILITY ISOLATOR
PDF -
Brochure
IP66 Isolator MY
Brochure en-GB 2025-08-25
PDF5,30 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-08-25
PDF492,64 kB
