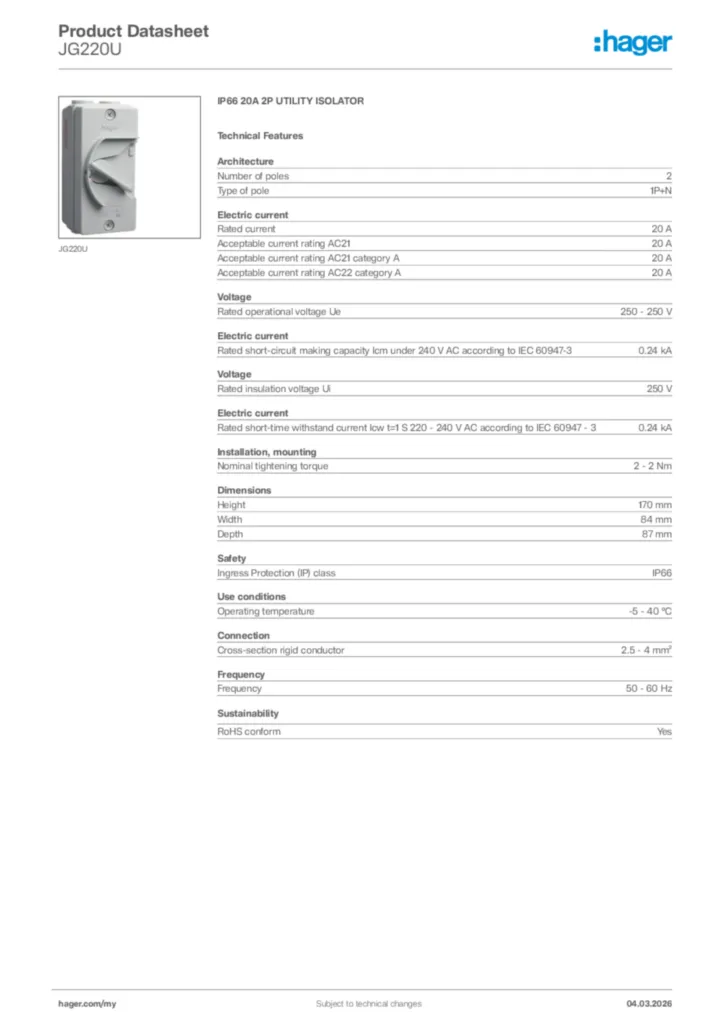

IP66 20A 2P UTILITY ISOLATOR JG220U
EAN-Nr.
3250617509794
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles2
-
Type of pole1P+N
Electric current
-
Rated current20 A
-
Acceptable current rating AC2120 A
-
Acceptable current rating AC21 category A20 A
-
Acceptable current rating AC22 category A20 A
-
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-30,24 kA
-
Rated short-time withstand current Icw t=1 S 220 - 240 V AC according to IEC 60947 - 30,24 kA
Voltage
-
Rated operational voltage Ue250 - 250 V
-
Rated insulation voltage Ui250 V
Installation, mounting
-
Nominal tightening torque2 - 2 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor2.5 - 4 mm²
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Brochure
IP66 Isolator MY
Brochure en-GB 2025-08-25
PDF5,30 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-08-25
PDF492,64 kB
