IP66 40A 2P UTILITY ISOLATOR JG240U
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles2
-
Type of pole1P+N
Electric current
-
Rated current40 A
-
Acceptable current rating AC21 category A40 A
-
Acceptable current rating AC22 category A40 A
-
Rated short-circuit making capacity Icm under 240 V AC according to IEC 60947-30,48 kA
-
Rated short-time withstand current Icw t=1 S 220 - 240 V AC according to IEC 60947 - 30,48 kA
Voltage
-
Rated operational voltage Ue250 - 250 V
-
Rated insulation voltage Ui250 V
Installation, mounting
-
Nominal tightening torque2,50 - 2,50 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor6 - 10 mm²
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

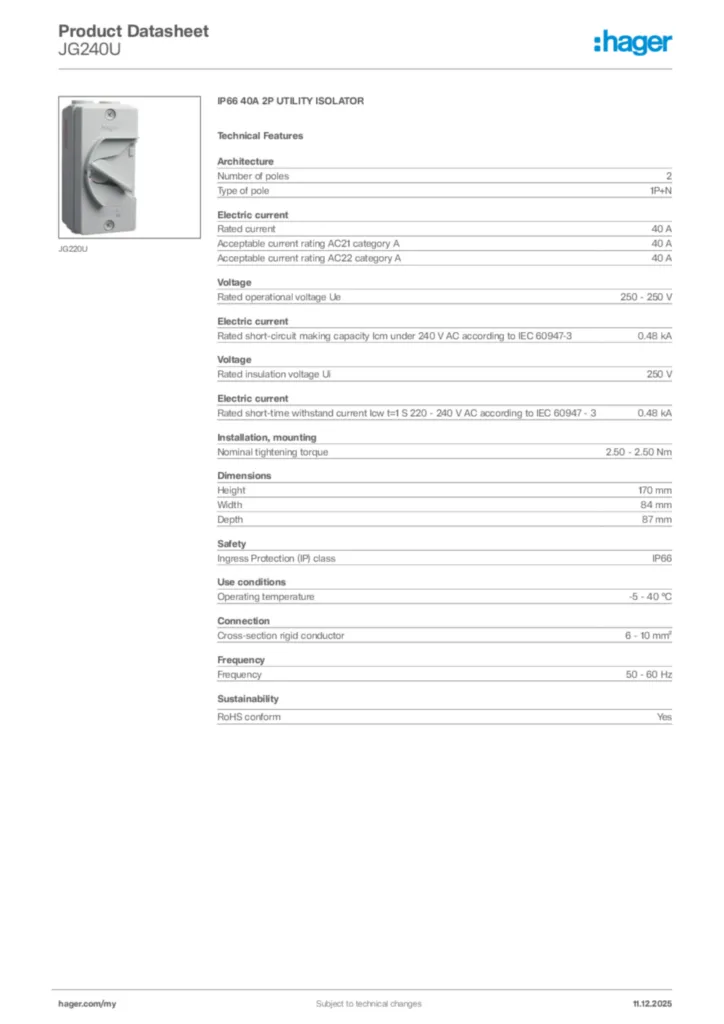

Product datasheet
Hager Product data sheet JG240U
IP66 40A 2P UTILITY ISOLATOR
PDF -
Brochure
IP66 Isolator MY
Brochure en-GB 2025-08-25
PDF5,30 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-08-25
PDF492,64 kB
