1 channel digital time switch weekly cycle EGN103
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Accessories/spare parts for time switches 1 products available
Technical characteristics
Voltage
-
Nominal voltage230 - 230 V
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Power
-
230 V incandescent and halogen lamp2300 W
Lighting
-
Max. load fluorescent lamp in series1000 W
-
Max. load fluorescent lamp parallel compensated400 VA
Functions
-
Power reserve in years5 y
-
With network synchronisationNo
-
With quartz synchronisationYes
-
Number of function channels1
Equipment
-
Accuracy per day1,50 s
-
With impulse programmeNo
-
Number of channels1
Connection
-
Type of contacts1x changeover
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1.5 - 10 mm²
Settings
-
Daily programmeYes
-
Weekly programmeYes
-
Annual programmeNo
Use conditions
-
Operating temperature-5 - +45 °C
Texts
-
Type of connectionWith screw terminal
Dimensions
-
Height85 mm
-
Width35,80 mm
-
Depth61,60 mm
Capacity
-
Number of modules2
Main electrical attributes
-
Minimum interval between 2 switching times1 min
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

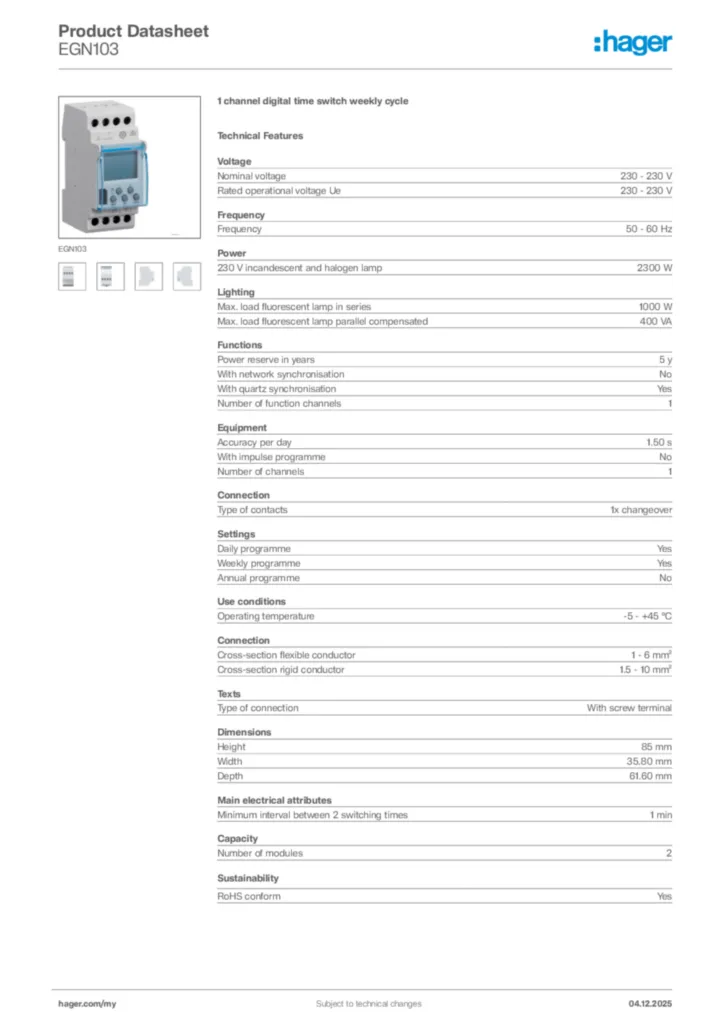

Hager Product data sheet EGN103
1 channel digital time switch weekly cycle
PDF -
Manual
Manual en-GB 2020-11-24
PDF1,28 MB -
Catalogue
Digital Timeswitch Catalogue
Catalogue en-GB 2021-03-30
PDF6,88 MB -
Declaration of conformity
Declaration of conformity International 2023-01-12
PDF234,58 kB
Declaration of conformity International 2023-01-12
PDF305,69 kB
