K.x/Q.x KNX (TP+EASY) Movement detector module 1,10m 80262170

Accessories
Technical characteristics
Environmental value
Documentations
More products

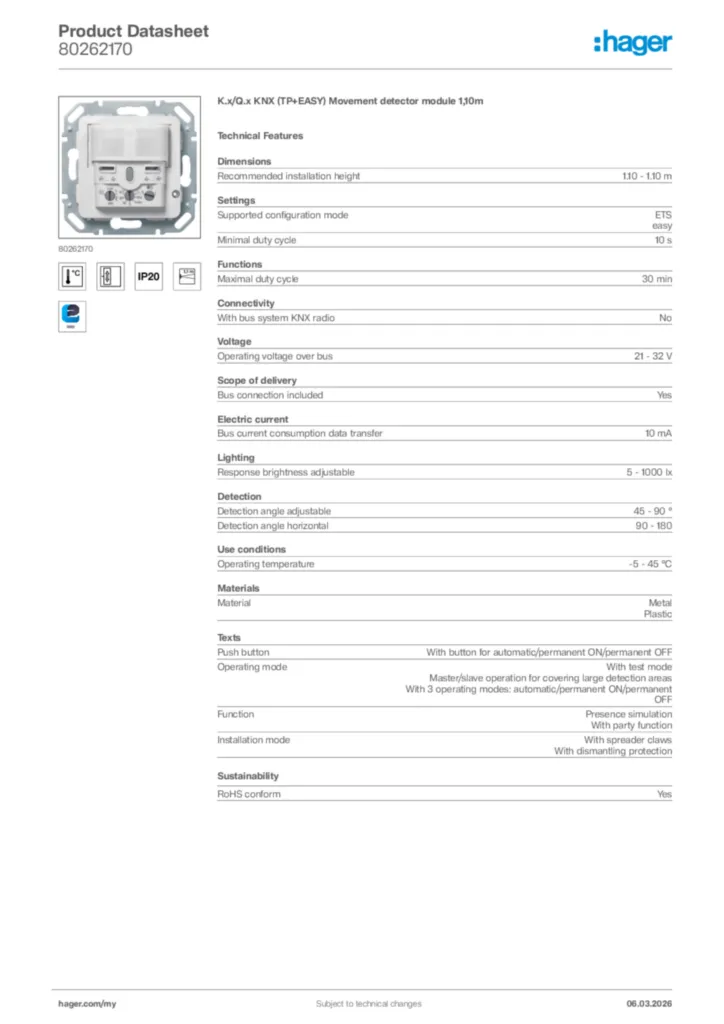

Download the sheet

Complete your system

80960429

Q.x Cover for KNX (TP+EASY) Movement detector module, polar white

80960426

Q.x Cover for KNX (TP+EASY) Movement detector module, anthracite

80960479

K.x Cover for KNX (TP+EASY) Movement detector module, polar white

80960475

K.x Cover for KNX (TP+EASY) Movement detector module, anthracite

80960471

K.x Cover for KNX (TP+EASY) Movement detector module, aluminium

80960473

K.x Cover for KNX (TP+EASY) Movement detector module, stainless steel

Technical characteristics

Recommended installation height

1,10 - 1,10 m

Supported configuration mode

ETS, easy
Minimal duty cycle

10 s

Maximal duty cycle

30 min

With bus system KNX radio

No

Operating voltage over bus

21 - 32 V

Bus connection included

Yes

Bus current consumption data transfer

10 mA

Response brightness adjustable

5 - 1000 lx

Detection angle adjustable

45 - 90 °
Detection angle horizontal

90 - 180

Operating temperature

-5 - 45 °C

Material

Metal, Plastic

Push button

With button for automatic/permanent ON/permanent OFF
Operating mode

With test mode, Master/slave operation for covering large detection areas, With 3 operating modes: automatic/permanent ON/permanent OFF
Function

Presence simulation, With party function
Installation mode

With spreader claws, With dismantling protection

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
