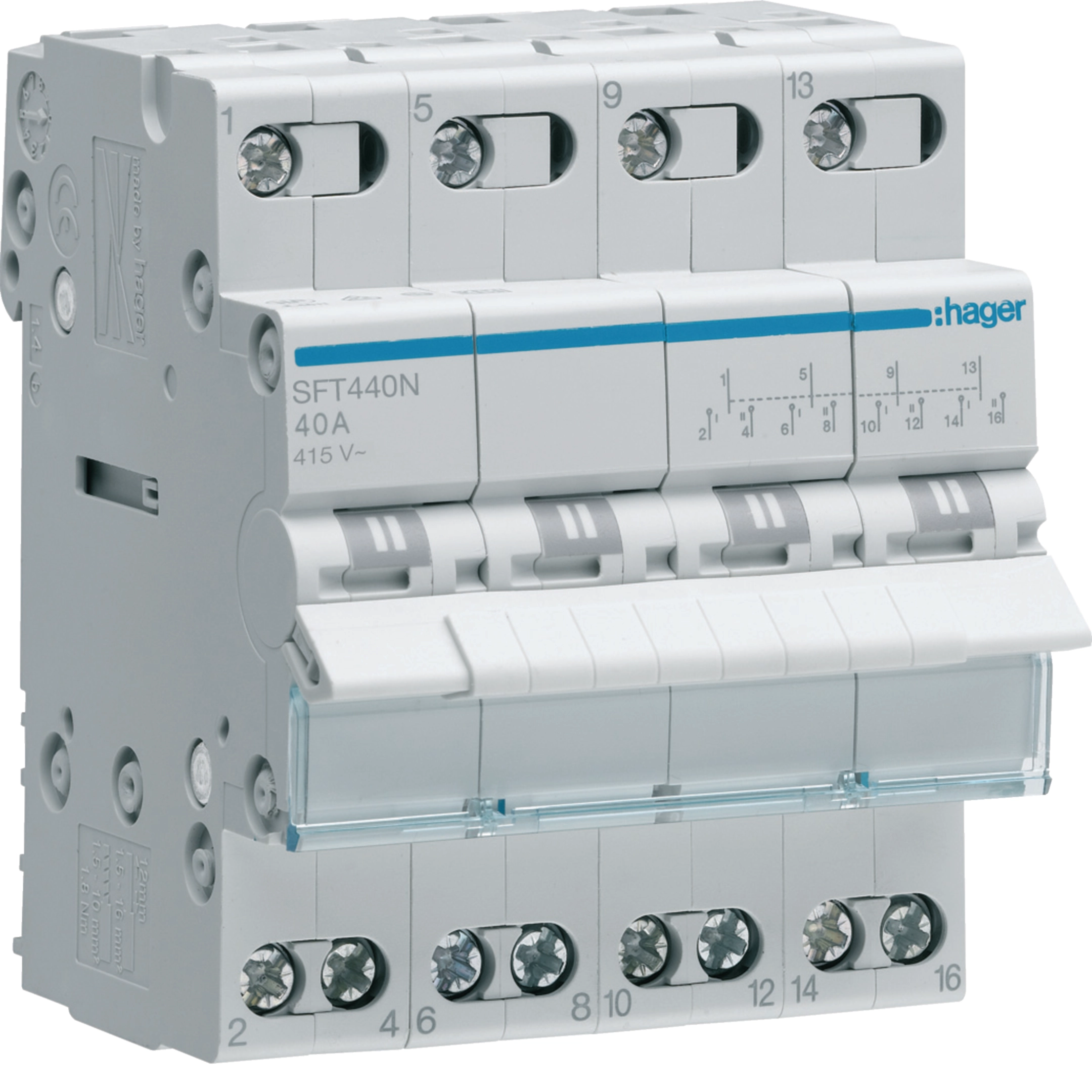

4-pole, 40A Centre Off Modular Changeover Switch with Top Common Point SFT440N
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles4
-
Control/operation elementChange over switch
-
Type of pole4P
Electric current
-
Rated current IN40 A
-
Acceptable current rating AC21 category A40 A
-
Acceptable current rating AC21 category B40 A
-
Acceptable current rating AC22 category A40 A
-
Acceptable current rating AC22 category B40 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-30,48 kA
-
Rated short-time withstand current Icw 1s IEC 609470,60 kA
Installation, mounting
-
Nominal tightening torque1,80 - 1,80 Nm
-
Type of bottom connection for modular devicesScrew terminal
Voltage
-
Rated operational voltage Ue415 - 415 V
-
Rated insulation voltage Ui440 V
-
Rated impulse withstand voltage Uimp4000 V
Capacity
-
Number of modules4
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Dimensions
-
Height83 mm
-
Width70 mm
-
Depth71 mm
Use conditions
-
Operating temperature-20 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor1.5 - 10 mm²
-
Cross-section rigid conductor1.5 - 16 mm²
Endurance
-
Number of mechanical operations200000
-
Electrical durability at nominal load in AC21 in operating cycles25000
-
Electrical durability at nominal load in AC22 in operating cycles25000
Power
-
Power dissipation at IN8,40 W
-
Power loss per pole at In2,10 W
Connectivity
-
Down connection alignment for modular devicesShifted terminal
-
Top connection alignment for modular devicesShifted terminal
