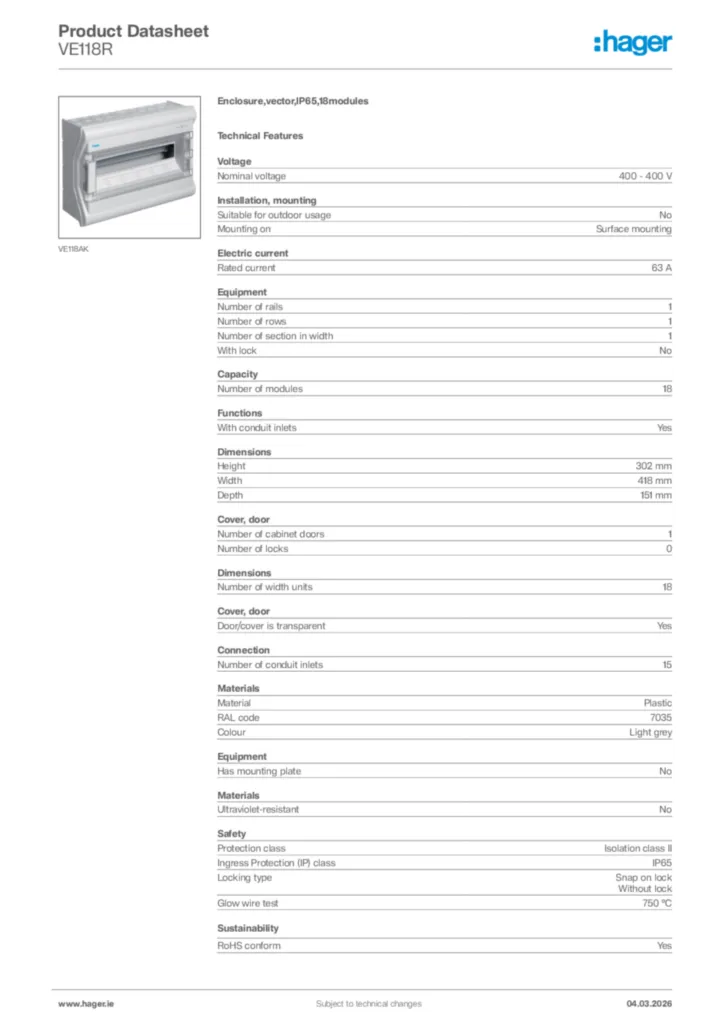

Enclosure,vector,IP65,18modules VE118R
EAN
3250610437919
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 1 products available -
Accessories/spare parts for terminals 1 products available -
Cover strip 1 products available
Technical properties
Connection
-
Number of conduit inlets15
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has mounting plateNo
Capacity
-
Number of modules18
Functions
-
With conduit inletsYes
Dimensions
-
Height302 mm
-
Width418 mm
-
Depth151 mm
-
Number of width units18
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentYes
Materials
-
MaterialPlastic
-
RAL code7035
-
ColourLight grey
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Ingress Protection (IP) classIP65
-
Locking typeSnap on lock, Without lock
-
Glow wire test750 °C
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
BIM Revit objects
Range : Vector. Switchboard IP65 with DIN rail system. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,31 MB
Range : Vector. Switchboard IP65 with DIN rail system. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,30 MB
Range Vector enclosures for UK (Lang. : en) IP55 with installation System hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,30 MB
Range Vector enclosures for UK (Lang. : en) IP55 with installation System no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,30 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-11-14
PDF257,02 kB
Declaration
Declaration of conformity International 2022-05-09
PDF836,07 kB
Declaration
Declaration of conformity International 2022-12-19
PDF258,36 kB
Declaration
Declaration of conformity International 2022-02-18
PDF814,05 kB
More documentation
