Surge Protection Device 4P TNS/TT Uc 275V In 2 kA Imax 8 kA Up 1kV SPB408D
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Follow-up products :
Complete your system
Optional accessories
-
Surge protection device for power supply systems 2 products available
Technical properties
Capacity
-
Number of modules4
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Continuous operating voltage Uc according to IEC 61643-1275 V
-
Voltage protection level Up according to IEC 61643-10.90 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111.50 kV
-
Voltage level Up L-N/PEN IEC 61643-11900 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 616432 kA, 20 kA
-
Max. overcurrent protection device, parallel connection (fuse)125 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE8 kA, 40 kA
Dimensions
-
Height89.80 mm
-
Width71 mm
-
Depth65.7 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN-S, TT
Equipment
-
With remote signalling contactNo
Connection
-
Cross-section of input and output with screws, for flexible conductors1.5 - 25.0 mm²
-
Cross-section of input and output with screws, for massive conductors1.5 - 35.0 mm²
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 4.5 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

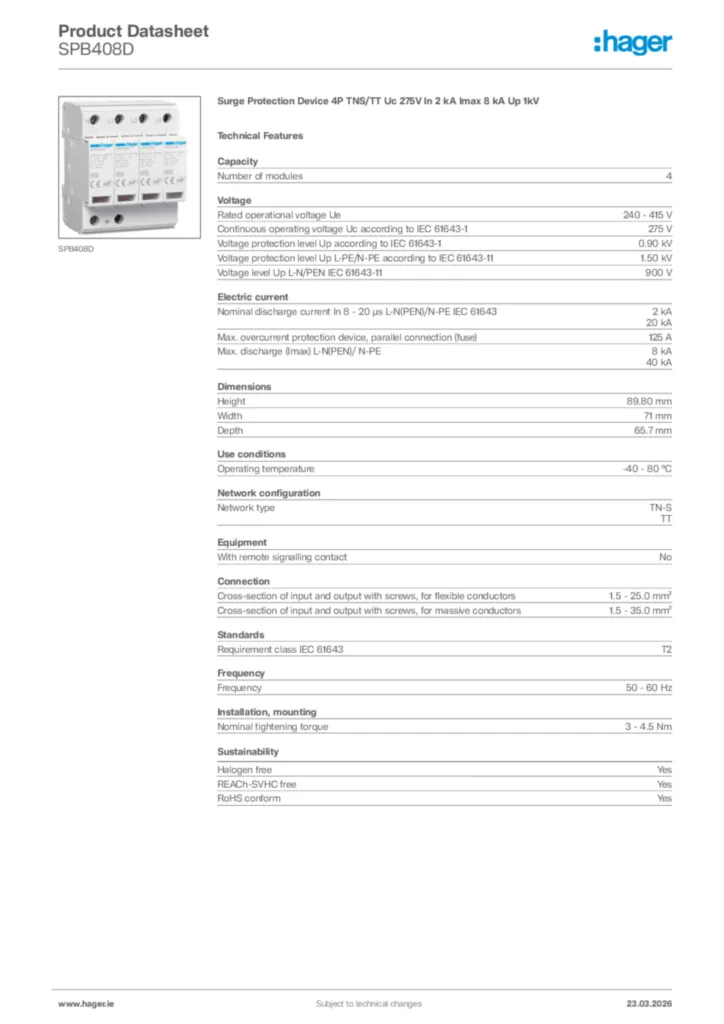

Hager Product data sheet SPB408D
