LR703 - Fuse carrier 3P 125A 690V L58 6M
LR703
Fuse carrier 3P 125A 690V L58 6M
2
LR701 - Fuse carrier 1P 125A 690V L58 2M
LR701
Fuse carrier 1P 125A 690V L58 2M

Fuse carrier 3P 125A 690V L58 6M

LR703

  • Switching and protective devices
  • Modular devices

Fuse carrier 3P 125A 690V L58 6M LR703

EAN
3250614187032
Packaging
2 Pieces

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Environmental value
  • Documentations
  • More products

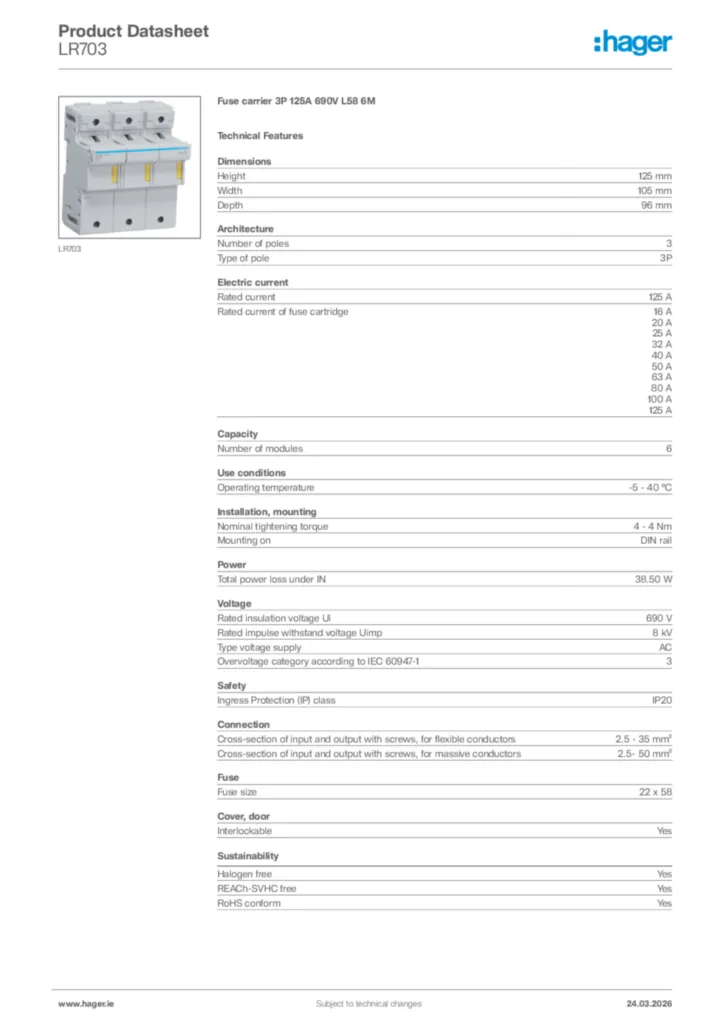

Download the data sheet

Technical properties

Dimen­sions
  • Height
    125 mm
  • Width
    105 mm
  • Depth
    96 mm
Archi­tec­ture
  • Number of poles
    3
Elec­tric current
  • Rated current
    125 A
  • Rated current of fuse cart­ridge
    16 A, 20 A, 25 A, 32 A, 40 A, 50 A, 63 A, 80 A, 100 A, 125 A
Capa­city
  • Number of modules
    6
Internal use only
  • Number of half modules of 17,5 mm
    12
Use condi­tions
  • Oper­ating temper­ature
    -5 - 40 °C
Install­a­tion, mounting
  • Nominal tight­ening torque
    4 - 4 Nm
  • Mounting on
    DIN rail
Power
  • Total power loss under IN
    38.50 W
Voltage
  • Rated insu­la­tion voltage Ui
    690 V
  • Rated impulse with­stand voltage Uimp
    8 kV
  • Type voltage supply
    AC
  • Overvoltage category according to IEC 60947-1
    3
Safety
  • Ingress Protec­tion (IP) class
    IP20
Connec­tion
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    2.5 - 35 mm²
  • Cross-sec­tion of input and output with screws, for massive conductors
    2.5- 50 mm²
Fuse
  • Fuse size
    22 x 58
Cover, door
  • Inter­lock­able
    Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACH conform Yes
Halogen free Yes

Certifications and documents

REACH declaration LR703 (english)
PDF
103,10 kB
RoHS declaration LR703 (english)
PDF
103,59 kB

Downloads

  • Product image

    Image LR703 | Hager

    Product Image LR703

  • Declaration of conformity

    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2019-09-17

    PDF
    126,64 kB
    Image Declaration | Hager

    Declaration

    Declaration of conformity International 2023-03-14

    PDF
    894,70 kB
