Brass busbar terminal 125A, 4pole, 1x 10-35² / 3x 6-35² / 11x 1,5-16² per pole KJ125B
EAN
3250613803568
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Distributor assembly terminal blocks 1 products available -
Rail terminal bar 3 products available
Compatible products
-
Referenced by 2 products available
Technical properties
Electric current
-
Rated current125 A
Architecture
-
Number of poles4
Dimensions
-
Height96 mm
-
Width170 mm
-
Depth64 mm
Capacity
-
Number of modules10
Installation, mounting
-
Nominal tightening torque2.50 - 2.50 Nm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

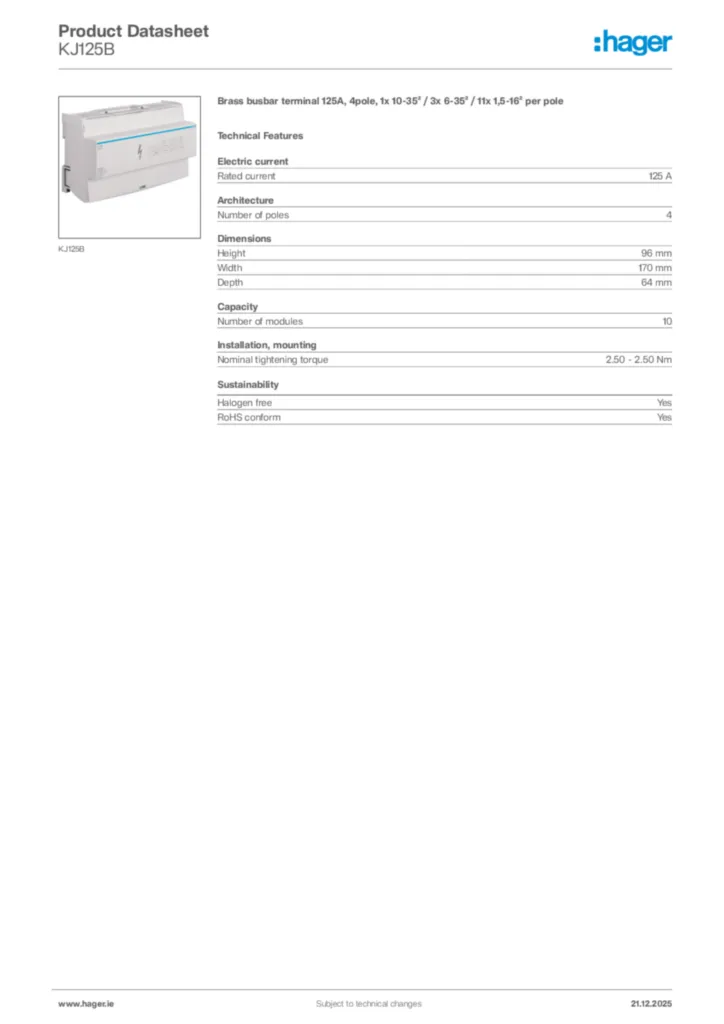

Hager Product data sheet KJ125B
Brass busbar terminal 125A, 4pole, 1x 10-35² / 3x 6-35² / 11x 1,5-16² per pole
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2022-08-29
PDF193,62 kB
