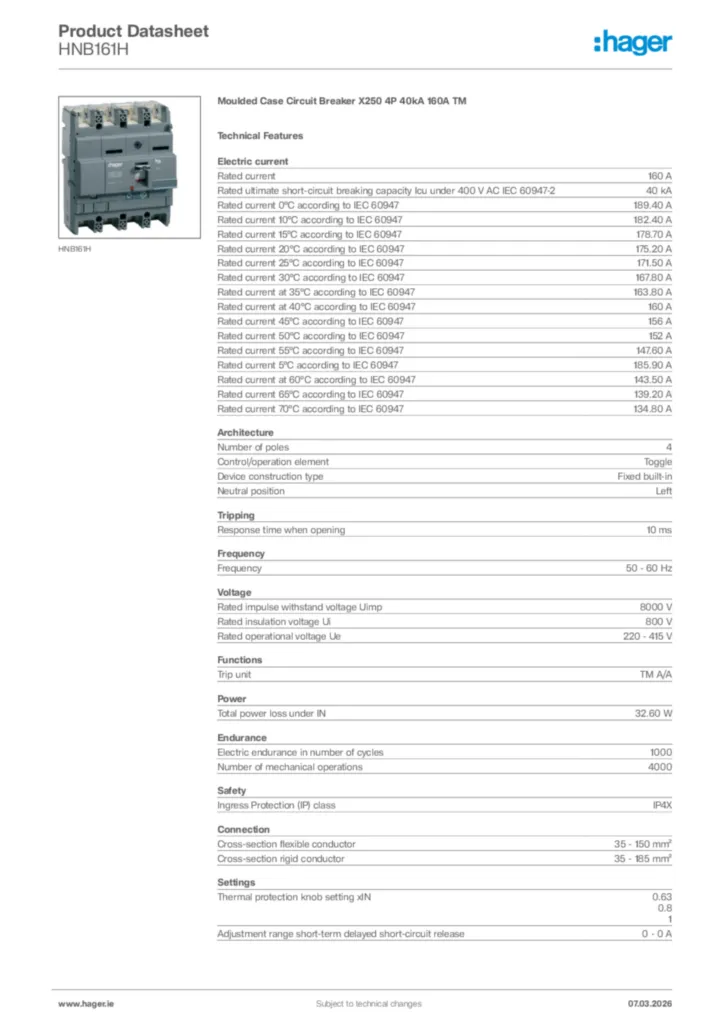

Moulded Case Circuit Breaker X250 4P 40kA 160A TM HNB161H
EAN
3250613347802
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
AOB MCCB type A-HI 2 products available -
Shunt release 6 products available -
Under voltage coil 11 products available -
Auxiliaries contact block 4 products available -
Handle for power circuit breaker 2 products available -
See more 17 other products available
Complete your system
-
HXA001H
Shunt trip 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA002HShunt trip 48V DC (x160-P160-x250-P250-x630-P630)
-
HXA003HShunt trip 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA004HShunt trip 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA005HShunt trip 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXC008HShunt trip Release 110V DC (h250-h400-h630-h800-h1000)
-
HXA011H
Undervoltage release 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA013HUndervoltage release 100-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA014HUndervoltage release 200-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA015HUndervoltage release 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXA051HUVR delayed 24V DC (x160-P160-x250-P250-x630-P630)
-
HXA053HUVR delayed 110-120V AC (x160-P160-x250-P250-x630-P630)
-
HXA054HUVR delayed 220-240V AC (x160-P160-x250-P250-x630-P630)
-
HXA055HUVR delayed 380-450V AC (x160-P160-x250-P250-x630-P630)
-
HXC019HUndervoltage Release 200-240V DC (h250-h400-h630)
-
HXC051HUndervoltage release with delay h250-h630 24V DC
-
HXC054HUndervoltage release with delay h250-h630 220-240V AC
Technical properties
Electric current
-
Rated current160 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-240 kA
-
Rated current 0°C according to IEC 60947189.40 A
-
Rated current 10°C according to IEC 60947182.40 A
-
Rated current 15°C according to IEC 60947178.70 A
-
Rated current 20°C according to IEC 60947175.20 A
-
Rated current 25°C according to IEC 60947171.50 A
-
Rated current 30°C according to IEC 60947167.80 A
-
Rated current at 35°C according to IEC 60947163.80 A
-
Rated current at 40°C according to IEC 60947160 A
-
Rated current 45°C according to IEC 60947156 A
-
Rated current 50°C according to IEC 60947152 A
-
Rated current 55°C according to IEC 60947147.60 A
-
Rated current 5°C according to IEC 60947185.90 A
-
Rated current at 60°C according to IEC 60947143.50 A
-
Rated current 65°C according to IEC 60947139.20 A
-
Rated current 70°C according to IEC 60947134.80 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
-
Device construction typeFixed built-in
-
Neutral positionLeft
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8,000 V
-
Rated insulation voltage Ui800 V
-
Rated operational voltage Ue220 - 415 V
Functions
-
Trip unitTM A/A
Power
-
Total power loss under IN32.60 W
Endurance
-
Electric endurance in number of cycles1,000
-
Number of mechanical operations4,000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor35 - 150 mm²
-
Cross-section rigid conductor35 - 185 mm²
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Cable
-
Cable materialCopper
Compatibility
-
Suitable for DIN RailNo
-
Suitable for distribution boardYes
Installation, mounting
-
Mounting-/Connection PositionFront
-
Nominal tightening torque12 - 12 Nm
-
Nominal tightening torque down terminal12 - 12 Nm
-
Nominal tightening torque top terminal12 - 12 Nm
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
Environmental value
