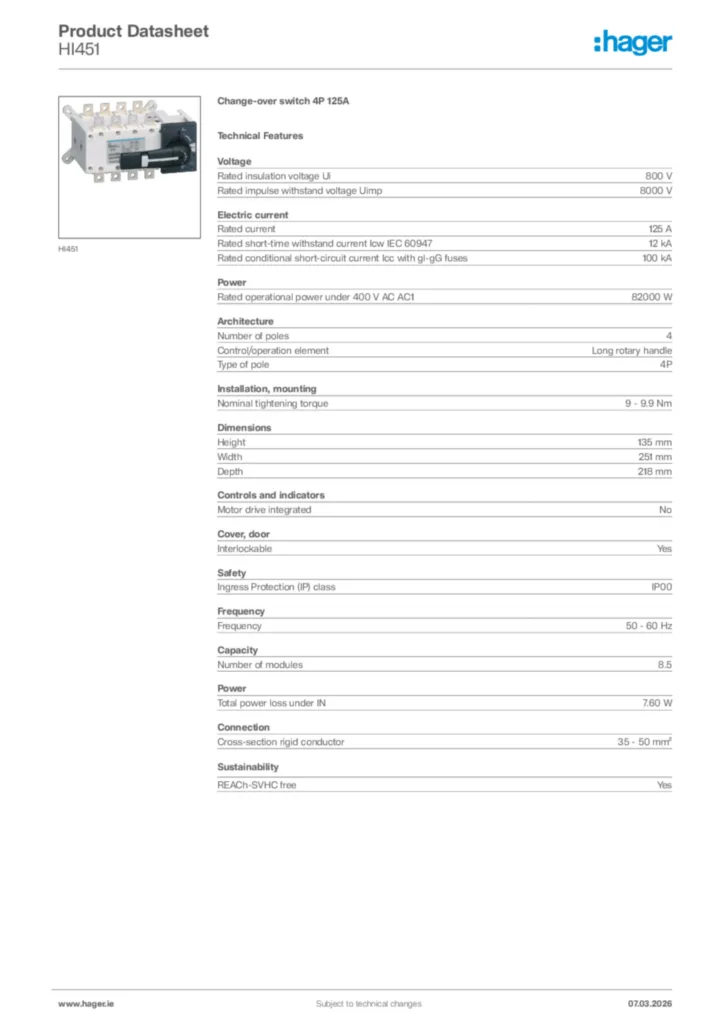

Change-over switch 4P 125A HI451
EAN
3250613190224
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary contact block 1 products available -
Switch operating shaft 2 products available -
Door coupling handle for switchgear 1 products available -
Terminal cover 2 products available -
Accessories/spare parts for low-voltage switch technology 1 products available
Technical properties
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8,000 V
Electric current
-
Rated current125 A
-
Rated short-time withstand current Icw IEC 6094712 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses100 kA
Power
-
Rated operational power under 400 V AC AC182,000 W
-
Total power loss under IN7.60 W
Architecture
-
Number of poles4
-
Control/operation elementLong rotary handle
-
Type of pole4P
Dimensions
-
Height135 mm
-
Width251 mm
-
Depth218 mm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP00
Capacity
-
Number of modules8.5
Frequency
-
Frequency50 - 60 Hz
Connection
-
Cross-section rigid conductor35 - 50 mm²
