Load break switch 4P 63A HAB406

EAN
3250613140366
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

Load break switch 4P 63A

HAB406

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Complete your system

Optional accessories

  • Switch oper­ating shaft 3 products available
  • Door coup­ling handle for switchgear 1 products available
  • Auxil­iary contact block 2 products available

Complete your system

  • Switch oper­ating shaft
  • Door coup­ling handle for switchgear
  • Auxil­iary contact block
  • HZC111

    Shaft extension N°5 150mm LBS 20-125A
    0.00 €  / *
  • HZC113

    Shaft extension N°5 320mm LBS 20-125A
    0.00 €  / *
  • HZC112

    Shaft extension N°5 200mm LBS 20-125A
    0.00 €  / *
  • HZC010

    Grey handle LBS 20-100A
    0.00 €  / *
  • HZC312

    Auxiliary contact 2C LBS 20-160A
    0.00 €  / *
  • HZC311

    Auxiliary contact 1C+1O LBS 20-160A
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    63 A
  • Accept­able current rating AC21
    63 A
  • Accept­able current rating AC21 category A
    63 A
  • Accept­able current rating AC21 category B
    63 A
  • Accept­able current rating AC22 category A
    63 A
  • Accept­able current rating AC22 category B
    63 A
  • Accept­able current rating AC23 category A
    40 A
  • Accept­able current rating AC23 category B
    40 A
  • Rated short-­cir­cuit making capa­city Icm under 415 V AC according to IEC 60947-3
    1.50 kA
  • Rated short-­time with­stand current Icw 1s IEC 60947
    1.26 kA
  • Rated short-­time with­stand current Icw IEC 60947
    1.26 kA
Archi­tec­ture
  • Type of pole
    4P
  • Control/­op­er­a­tion element
    Short rotary handle
  • Number of poles
    4
Connec­tion
  • Cross-sec­tion rigid conductor
    16 mm²
Voltage
  • Rated insu­la­tion voltage Ui
    800 V
  • Rated impulse with­stand voltage Uimp
    8,000 V
  • Rated oper­a­tional voltage Ue
    380 - 415 V
Power
  • Power loss per pole at In
    2.40 W
  • Total power loss under IN
    9.60 W
  • Rated oper­a­tional power under 400 V AC AC1
    41,000 W
  • Rated oper­a­tional power under 400 V AC AC23
    28,000 W
Install­a­tion, mounting
  • Nominal tight­ening torque
    2 - 2.2 Nm
Equip­ment
  • Motor drive optional
    No
  • Number of auxil­iary contacts as change-over contact
    0
  • Number of auxil­iary contacts as normally closed contact
    0
  • Number of auxil­iary contacts as normally open contact
    0
Use condi­tions
  • Oper­ating temper­ature
    -20 - 70 °C
Cover, door
  • Inter­lock­able
    Yes
Safety
  • Ingress Protec­tion (IP) class
    IP20
Frequency
  • Frequency
    50 - 50 Hz
Connectivity
  • Type of connec­tion
    Screw terminal
Func­tions
  • Is reversing switch
    No
  • Version as emer­gency stop install­a­tion
    No
  • Version as main switch
    Yes
  • Version as main­ten­ance/ser­vice switch
    Yes
  • Version as safety switch
    Yes
  • Version as switch discon­nector compact
    Yes
Capa­city
  • Number of modules
    3.42

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Hager REACH declaration HAB406
PDF
Hager RoHS report HAB406
PDF

Downloads

  • Product image

    Image HAB406 | Hager

    Product Image HAB406

  • Product datasheet

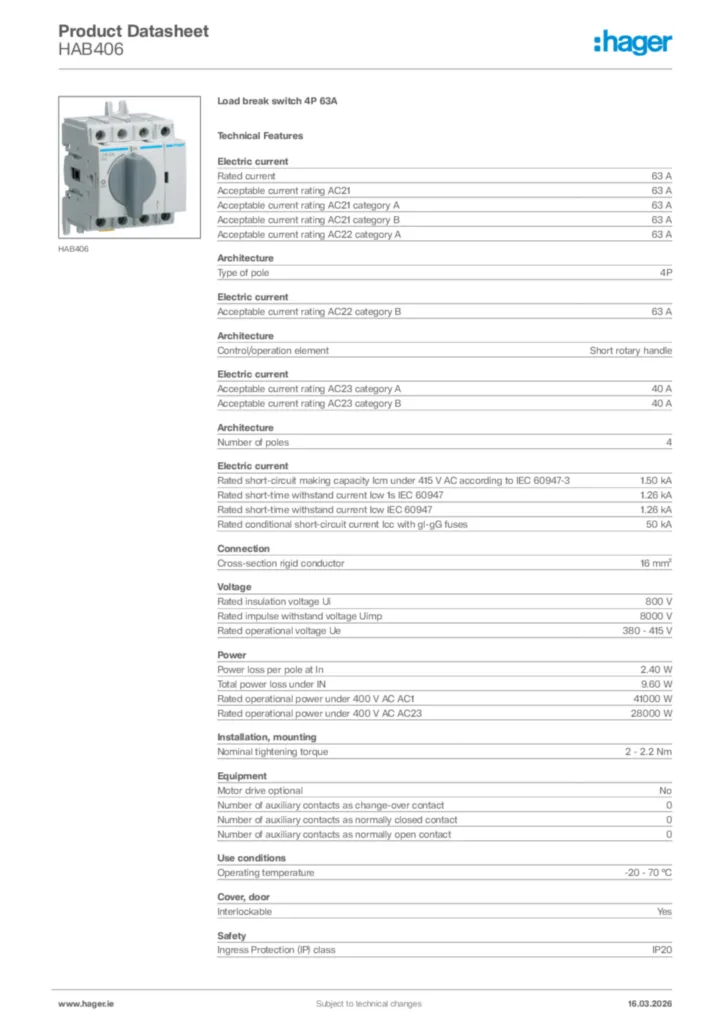

    Image Hager Product data sheet HAB406 | Hager
