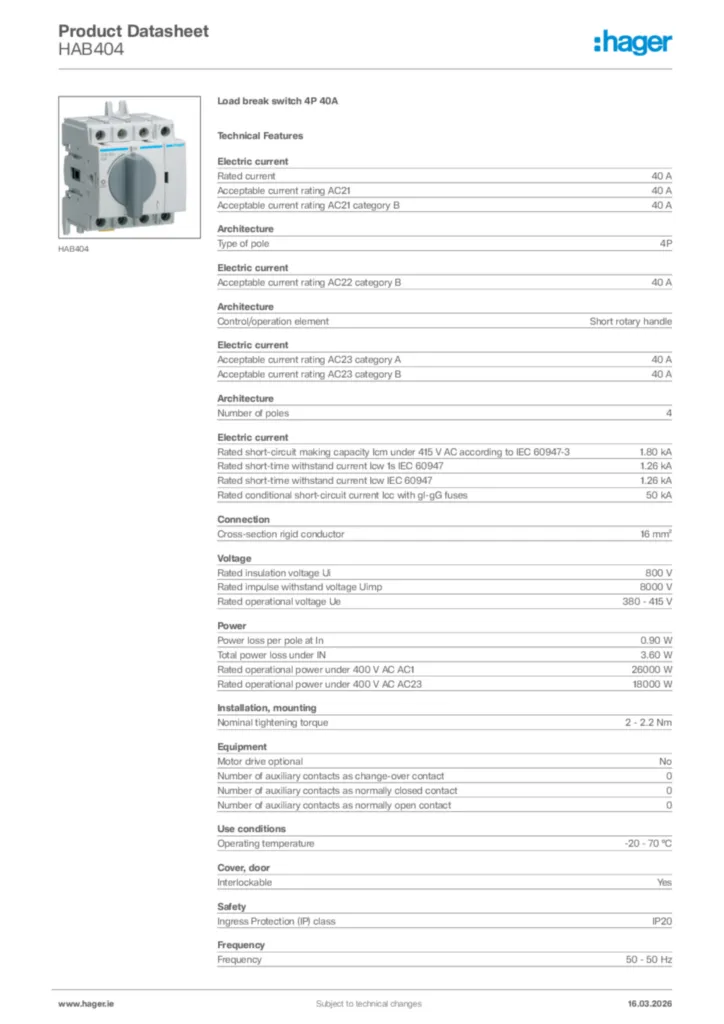

    Load break switch 4P 40A HAB404

    Phase out product: please contact your electrical wholesaler for availability

    Complete your system

    Optional accessories

    • Switch oper­ating shaft 3 products available
    • Door coup­ling handle for switchgear 1 products available
    • Auxil­iary contact block 2 products available

    Technical properties

    Elec­tric current
    • Rated current
      40 A
    • Accept­able current rating AC21
      40 A
    • Accept­able current rating AC21 category A
      40 A
    • Accept­able current rating AC21 category B
      40 A
    • Accept­able current rating AC22 category A
      40 A
    • Accept­able current rating AC22 category B
      40 A
    • Accept­able current rating AC23 category A
      40 A
    • Accept­able current rating AC23 category B
      40 A
    • Rated short-­cir­cuit making capa­city Icm under 415 V AC according to IEC 60947-3
      1.80 kA
    • Rated short-­time with­stand current Icw 1s IEC 60947
      1.26 kA
    • Rated short-­time with­stand current Icw t=1s 380 - 415 V AC according to IEC 60947 - 3
      1.26 kA
    • Rated condi­tional short-­cir­cuit current Icc with gl-gG fuses
      50 kA
    Archi­tec­ture
    • Type of pole
      4P
    • Control/­op­er­a­tion element
      Short rotary handle
    • Neutral posi­tion
      Without neutral
    • Number of poles
      4
    Connec­tion
    • Cross-sec­tion rigid conductor
      16 mm²
    Voltage
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated impulse with­stand voltage Uimp
      8,000 V
    • Rated oper­a­tional voltage Ue
      380 - 415 V
    • Type voltage supply
      AC
    Power
    • Power loss per pole at In
      0.90 W
    • Total power loss under IN
      3.60 W
    • Rated oper­a­tional power under 400 V AC AC1
      26,000 W
    • Rated oper­a­tional power under 400 V AC AC23
      18,000 W
    Install­a­tion, mounting
    • Nominal tight­ening torque
      2 - 2.2 Nm
    Equip­ment
    • Motor drive optional
      No
    • Number of auxil­iary contacts as change-over contact
      0
    • Number of auxil­iary contacts as normally closed contact
      0
    • Number of auxil­iary contacts as normally open contact
      0
    • Seal­able
      Yes
    Use condi­tions
    • Oper­ating temper­ature
      -20 - 70 °C
    Cover, door
    • Inter­lock­able
      Yes
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Frequency
    • Frequency
      50 - +50 Hz
    Connectivity
    • Type of connec­tion
      Screw terminal
    Func­tions
    • Is reversing switch
      No
    • Version as emer­gency stop install­a­tion
      No
    • Version as main switch
      Yes
    • Version as main­ten­ance/ser­vice switch
      Yes
    • Version as safety switch
      Yes
    • Version as switch discon­nector compact
      Yes
    Capa­city
    • Number of modules
      3.5
